FE-110A 全自動裁線剝皮扭線端子機(單頭) |
|
Computerized Auto Wire Stripping, Twisting & Crimping Machine (Single-head) |
特點說明
| 1. | 全機採用伺服馬達驅動，定長、送線、裁線、剝皮、扭力大，長度準確。 |
| 2. | 採螢幕按鍵控制，變換尺寸，刀值調整容易。適用於AWG#14〜#30線。 |
| 3. | 操作速度可調式，產能：一頭打端一頭半剝(全剝),每分鐘55〜75條；一 頭打端，一頭扭線，每分鐘55〜62條。 |
| 4. | 本機配合超靜音變頻端子機，橫、直卡式模均可適用。 |
| 5. | 設計有50組記憶功能，可縮短更換線材調整時間。 |
| 6. | 操作面板可選擇中文、英文顯示，使操作更簡易明瞭。 |
| 7. | 檢知自動停機裝置：端子有無檢知、端子壓著有無檢知、線材有無檢知、線材過載檢知。 |
| 8. | 選配品FE-CFM、FE-CW、FE-C2。 |
| 9. | 端子機可選配伺服馬達及自動高度微調機構或手動高度微調鈕。 |
FEATURES
| 1. | Adopted servo motor control, set length, feed, cut, strip, powerful twisting and accurate result. |
| 2. | Controlled by panel. Easy to change size and adjust blade value. Applied for AWG#14 〜#30 Wire. |
| 3. | Operating speed is adjustable. Capacity: one end crimping and one end half-strip or full-strip 55〜75 pcs./min. One end crimping and one end twisting 55〜62 pcs./min. |
| 4. | Operated with noiseless inverter motor crimping machine suitable for end or side type applicator. |
| 5. | Designed 50 set of memories function to shorten wire changing time. |
| 6. | Panel display Chinese or English is available and easy to operate. |
| 7. | Detector available, when out of terminal, mis-crimping, out of wire and wire overload, machine stop. |
| 8. | Optional: FE-CFM crimp force system, FE-CW wire clamper, FE-C2 carrier. |
| 9. | Crimping machine can option Servo motor or manual height adjustment or automatic height adjustment mechanism. |

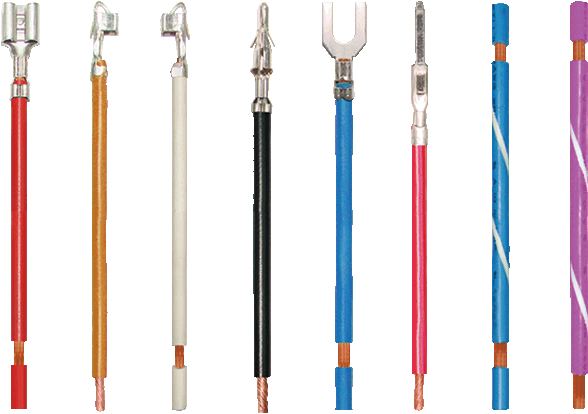

樣本 SAMPLES
規格 SPECIFICATIONS
|
機型 ModeL |
FE-110A |
|
外觀尺寸 Dimension |
1080x880x1350mm |
|
重量 Weight |
320 Kgs |
|
電源 Power supply |
AC220V-50/60Hz單相(1 phases) |
|
適用線徑 Applicable size |
標準(Standard) AWG#14~#30 |
|
壓著能力 Crimping force |
2.0 Ton |
|
切斷長度 Cutting length |
38~999,999mm(超短線另計) |
|
產能 Capacity |
55~75pcs/min(within100mm以內) |
選配組 OPTIONAL SET
FE-AF160A
FE-AF160B
FE-CS
FE-C2
FE-CFM-L1
FE-FA
FE-HA
