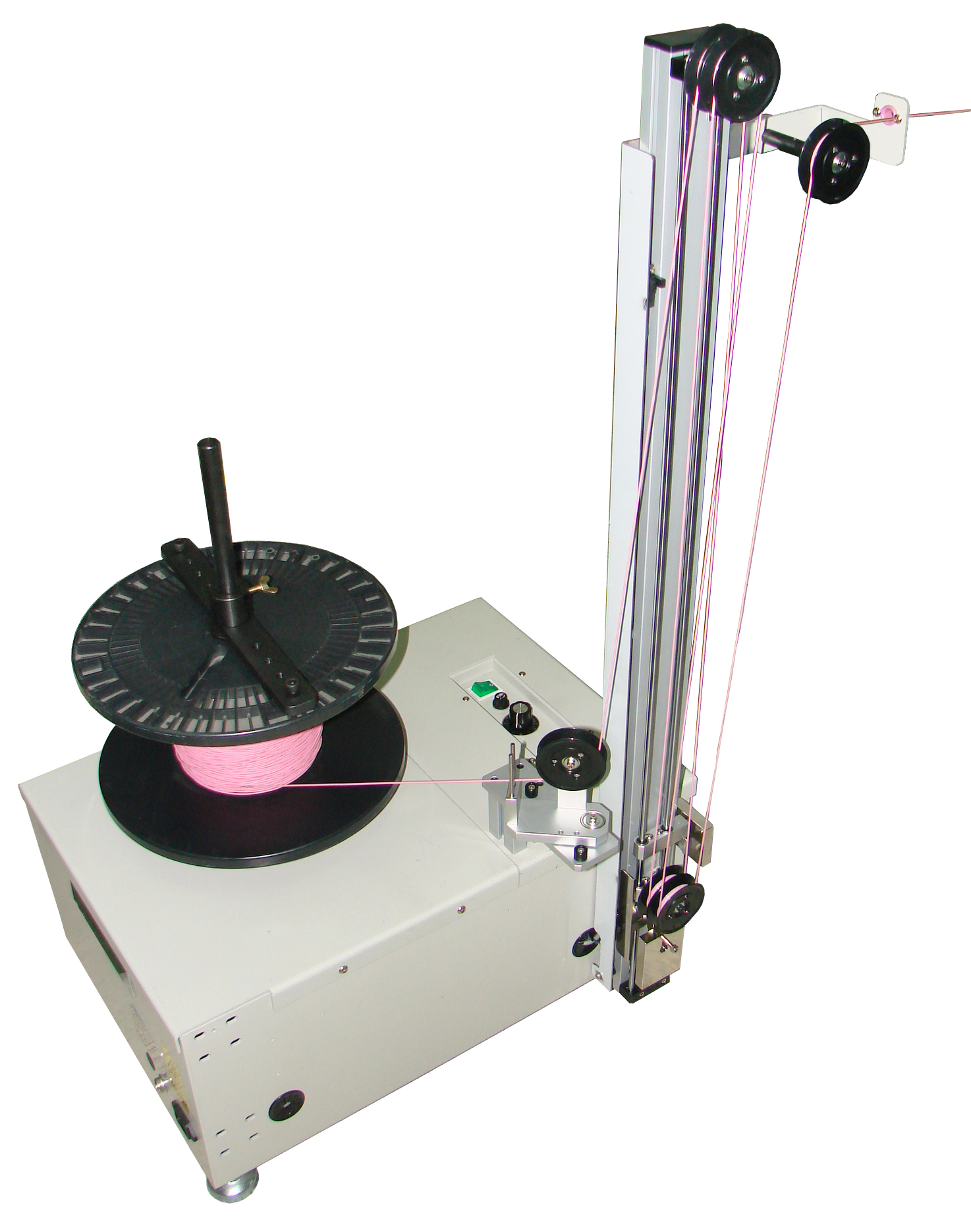

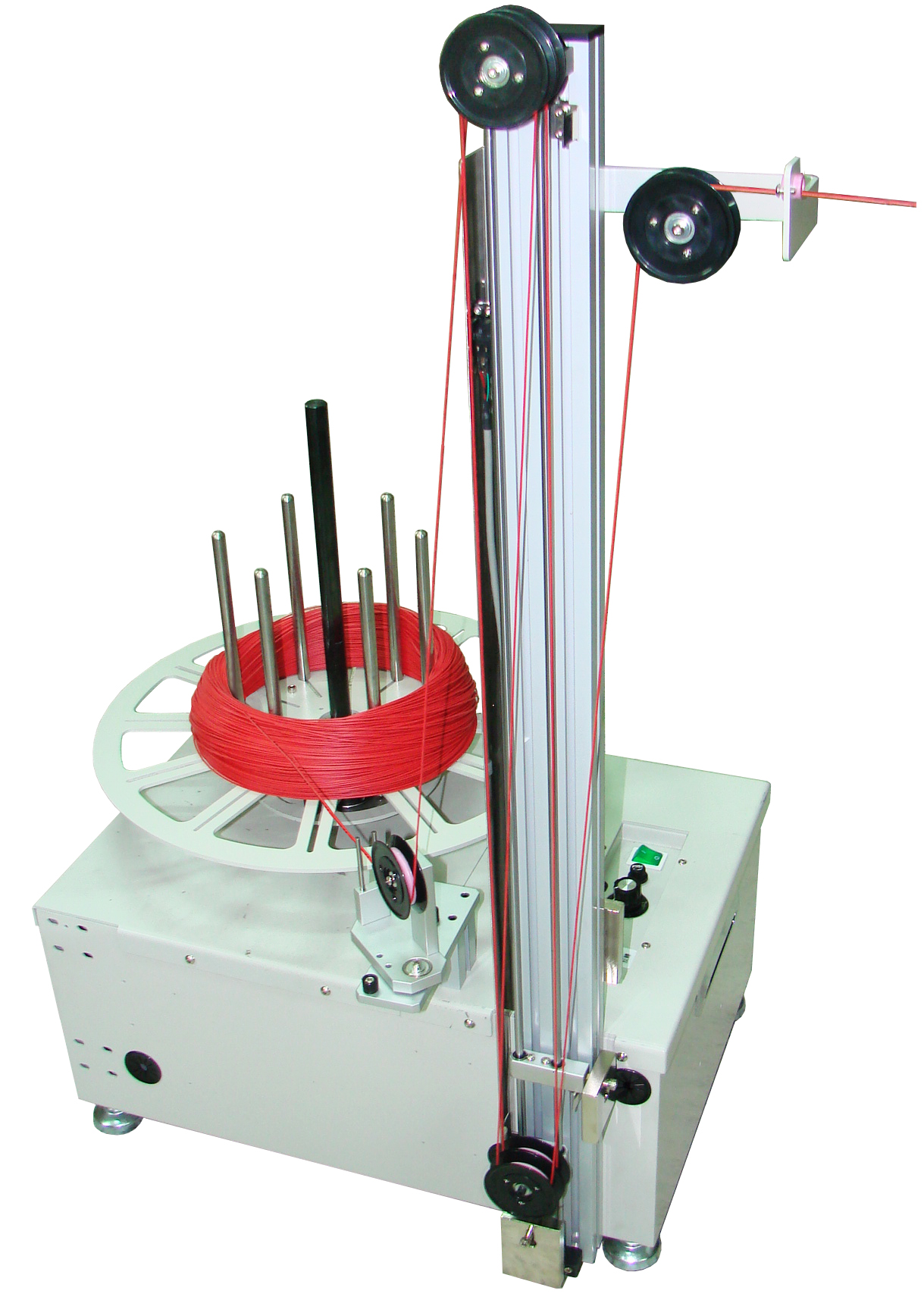

FE-AF160B 軸裝還原放線機(滑輪) |
|
Auto Wire Feeder For Wires In Spool (Pulley) |
特點說明
| 1. | 本機採用ＤＣ無刷馬達驅動，無碳刷消耗的問題，扭力輸出穩定。 |
| 2. | 使用減輕配重滑輪式裝置，暫存更多線材，避免裁線機瞬間拉線，送線機啟動緩慢造成拉扯現象，產生裁線長短。 |
| 3. | 送線機速度可調整，配合各廠切斷機、裁線機、全自動裁線端子機，適時適量操作，提高產能及效率。 |
| 4. | 電線送出可設定正反轉。 |
FEATURES
| 1. | Use DC motor without brush, less consumption of brush, output force steadily. |
| 2. | Use the weight-reducing pulley device to temporarily store wires, avoiding the instantaneous pulling of the wire or slow start of the wire feeding machine causing the pulling phenomenon, Improve capacity. |
| 3. | Speed adjustable for wire feeding, available for any brands of cutting machine, full automatic wire cutting & crimping machine, increase capacity and efficiency. |
| 4. | Can set CW/CCW rotation for wire feeding out. |
規格 SPECIFICATIONS
|
機型 Model |
FE-AF160B |
|
外觀尺寸 Dimension |
615x580x1020mm |
|
重量 Weight |
48Kgs |
|
電源 Power supply |
AC110V/220V |
|
載重 Carry Weight |
30Kgs |
|
適用線徑 Applicable size |
視線材而定 (Depends on wire material) |
