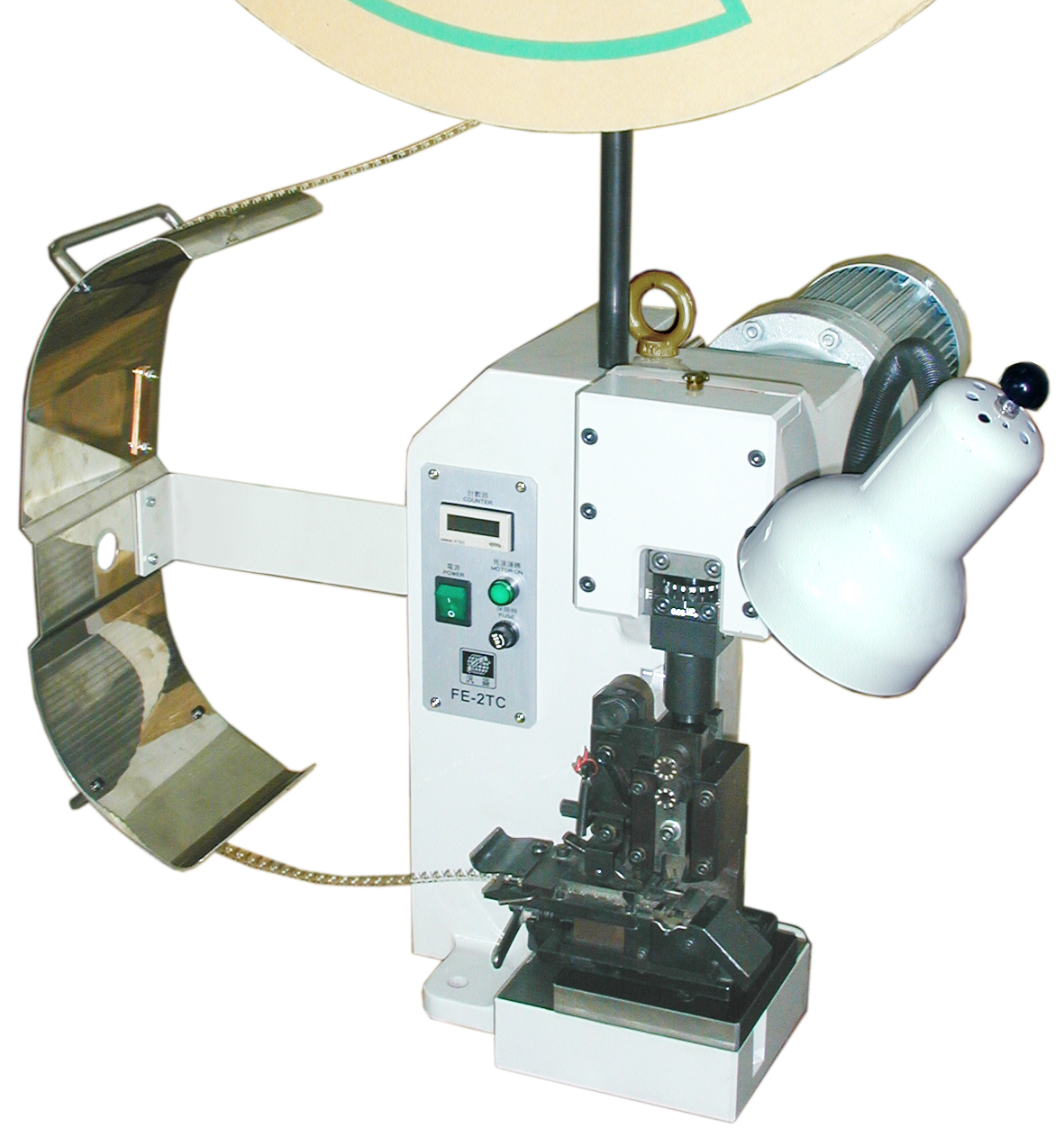

FE-2TC 半自動連續端子壓著機 |
|
Semi-Automatic Terminal Crimping Machine (2.0 Ton) |
特點說明
| 1. | 本機採用先進變頻馬達驅動操作。 |
| 2. |
全機CNC加工，主體結構堅固，零件少、震動小、定點準、耐久用、易維修。可選配伺服馬達。 並新增選配自動高度微調機構或手動高度微調鈕，方便快速調整端子壓著高度。 |
| 3. | 無傳統端子機離合器、電磁鐵等機械式傳動，改善易故障、噪音高等缺點，提供操作者超靜音工作環境。 |
| 4. | 變換底座及上卡頭可搭配各廠牌橫、直式卡模。具廣泛實用性。 |
FEATURES
| 1. | The Inverter motor is adopted in this machine for operation. |
| 2. | Main body constructed by CNC, strong, few parts, less vibration, accurate, durable usage and easy for maintenance. Option servo motor, and new design device for manual height adjustment or automatic height adjustment mechanism. |
| 3. | This machine does not have parts like clutch, solenoid or any other traditional parts that makes noise. Thus, it provides a noiseless working environment for the operator. |
| 4. | By changing the base plate and applicator connector, side or end-type applicators from different brand can be used. This machine can be used in a wide range of applicators, it can also fit with our full automatic machines. |
規格 SPECIFICATIONS
|
機型 Model |
FE-2TC |
|
外觀尺寸 Dimension |
360x550x530mm |
|
重量 Weight |
100 Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
出力 Stroke strength |
2.0 Ton |
|
衝程 Stroke |
30 mm |
選配組 OPTIONAL SET
|
FE-2TC-FA 含自動高度微調機構 |
|
INCL. Auto Crimp Height ADJ. Machine |

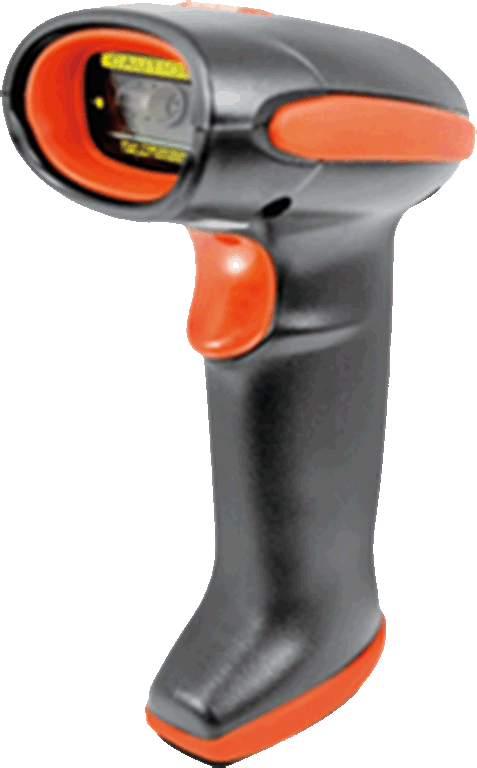

選配 掃描器 (Optional scanner)
特點說明
| 1. | 採用高精度伺服馬達驅動，自動調整端子壓著位置高度。 |
| 2. | 採用人機觸控面板方式，輸入端子壓著機卡式模編號，即可自動快速調整至端子壓著位置高度，調整精度0.01mm。 |
| 3. | 內部可儲存500組記憶功能，可縮短更換卡式模調整時間。 |
| 4. | 可選配條碼或OR Code掃描器，減少人員輸入錯誤編號。 |
FEATURES
| 1. | Drive by high precision servo motor, automatic adjust the crimping height. |
| 2. | Human face touch panel display, enter applicator number, it can easy to adjust the crimping height as setting, the adjustment accuracy is 0.01mm. |
| 3. | 500 sets of memory files can be saved, shorten the applicator replacement time. |
| 4. | Optional: QR Cord or Bar Cord scanner, reduce human input errors. |
規格 SPECIFICATIONS
|
機型 Model |
FE-2TC-FA |
|
外觀尺寸 Dimension |
360x550x530mm |
|
重量 Weight |
100 Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
出力 Stroke strength |
2.0 Ton |
|
衝程 Stroke |
30 mm |
|

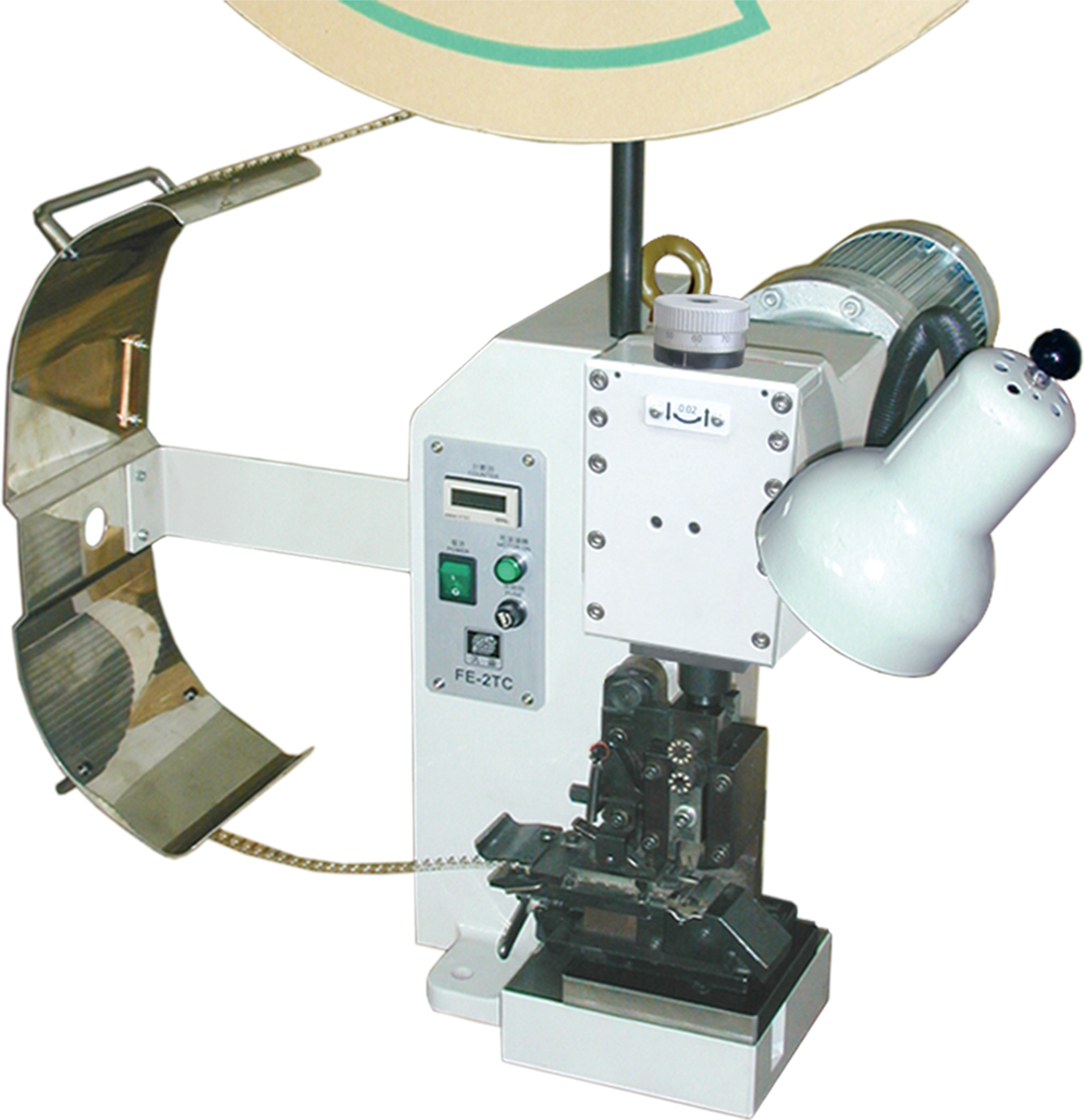

FE-2TC-HA 含手動高度微調鈕 |
|
INCL. Manual Crimp Height ADJ. Machine |
特點說明
| 手動高度調整鈕，於端子壓著機上方，方便快速調整至端子壓著位置高度， 調整精度0.02mm。 |
FEATURES
| Manual crimping height adjustment mechanism, on the top of crimping machine, easy and fast to adjust the crimping height, adjust accuracy 0.02mm. |
規格 SPECIFICATIONS
|
機型 Model |
FE-2TC-HA |
|
外觀尺寸 Dimension |
360x550x530mm |
|
重量 Weight |
100 Kgs100 Kgs100 Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
出力 Stroke strength |
2.0 Ton |
|
衝程 Stroke |
30 mm |
