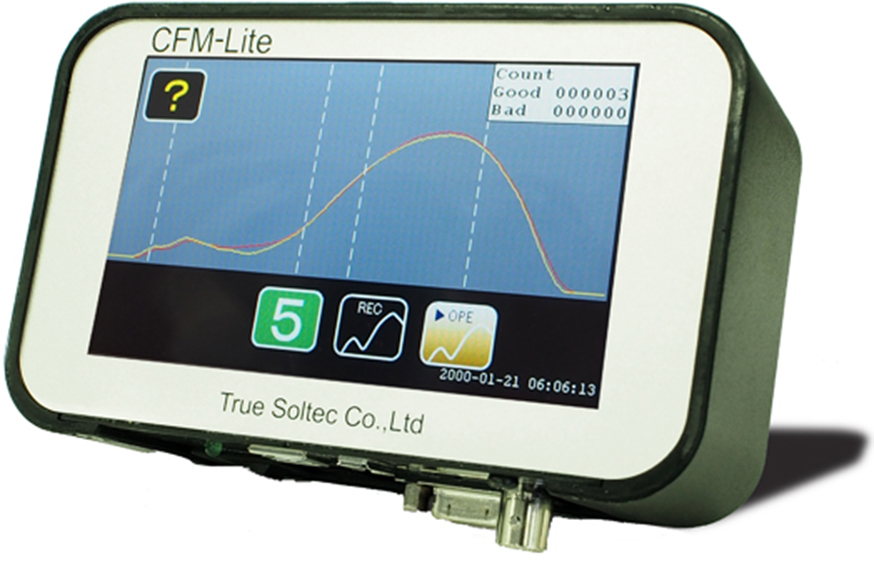

FE-CFM-L1 壓著端子壓力管理裝置 |
|
Crimp Force Monitor series |
FE-2TC + FE-CFM-L1

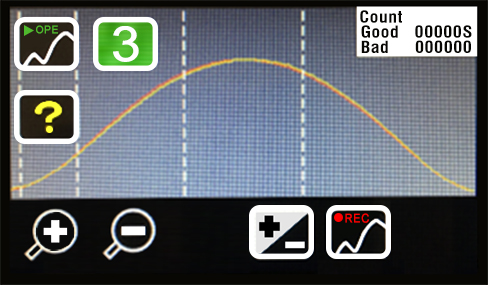

一目了然的波形顯示，加上所需最小限度的數值。
Easy-to-see force curve display and minimum
necessary numerical information.

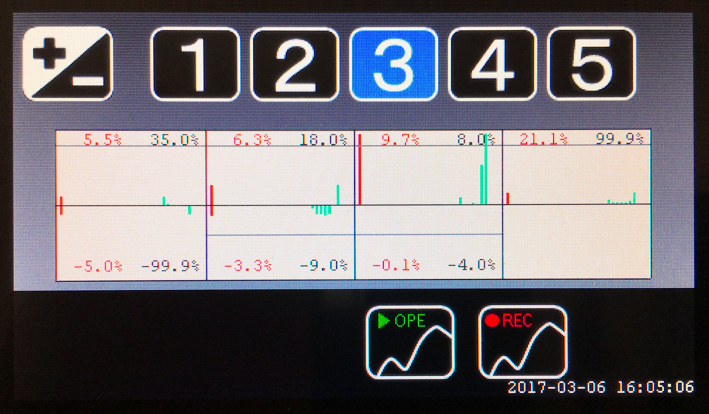

只要觸碰數字就可以選擇5階段的公差。
根據最新30條的壓力資料，自動顯示適當的建議公差值。
Tolerance of 5 levels can be chosen by just tapping
the number on the screen. The appropriate tolerance
recommendation is automatically shown based on
the latest 30 pcs. of the force data.
特點說明
| 1. | 端子壓著機專用、高檢出精度、容易監看的大液晶螢幕、改善幹擾耐性、適合在多樣環境下工作，減少問題的產生。 |
| 2. | 採用獲取波形方式不受機械振動的影響，形成穩定的波形，實現不良波形的高檢出精度及低誤判。 |
| 3. | 使用最少的參數設定,防止設定錯誤，省時間。 |
| 4. | 無需觸發感測器及底板的構造(建議)，安裝簡單又快速，免維護。 |
FEATURES
| 1. | Suitable for our crimping machine, high detection accuracy. Large and easy-to-see LED screen. Optimized electrical noise resistance under various production environment is achieved. Electrical trouble is reduced. |
| 2. | New improved force curve capture system avoids mechanical noise influence. Stable force curve achieves high detection accuracy and less false alarm. |
| 3. | Minimum parameter setting prevents wrong parameter setting. |
| 4. | Operation without proximity sensor and base plate type sensor is recommended. Easy install less maintenance process. |
規格 SPECIFICATIONS
|
機型 Model |
FE-CFM-L1 |
|
外觀尺寸 Dimension |
137x50x87mm |
|
通道數 Number of channel |
1 CH |
|
電源 Power supply |
AC 100~240V-50/60Hz |
|
輸出 Output |
停止信號，EJECT信號 STOP signal at error judgment |
|
輸入 Input |
外部觸發，外部復原，外部教示 Trigger input, external reset |
|
通信 Communication |
USB通信與波形顯示軟體互動 USB communication with PC software |
|
USB隨身碟 USB memory |
可使用儲存波形 Available for saving force data |
|
裝置方式 Operation method |
外掛於機台側邊 External in the side way of machine |
|
適用機型 Applicable models |
FE-112A, FE-110CSN, FE-110A, FE-2TC, FE-3.5TC |
