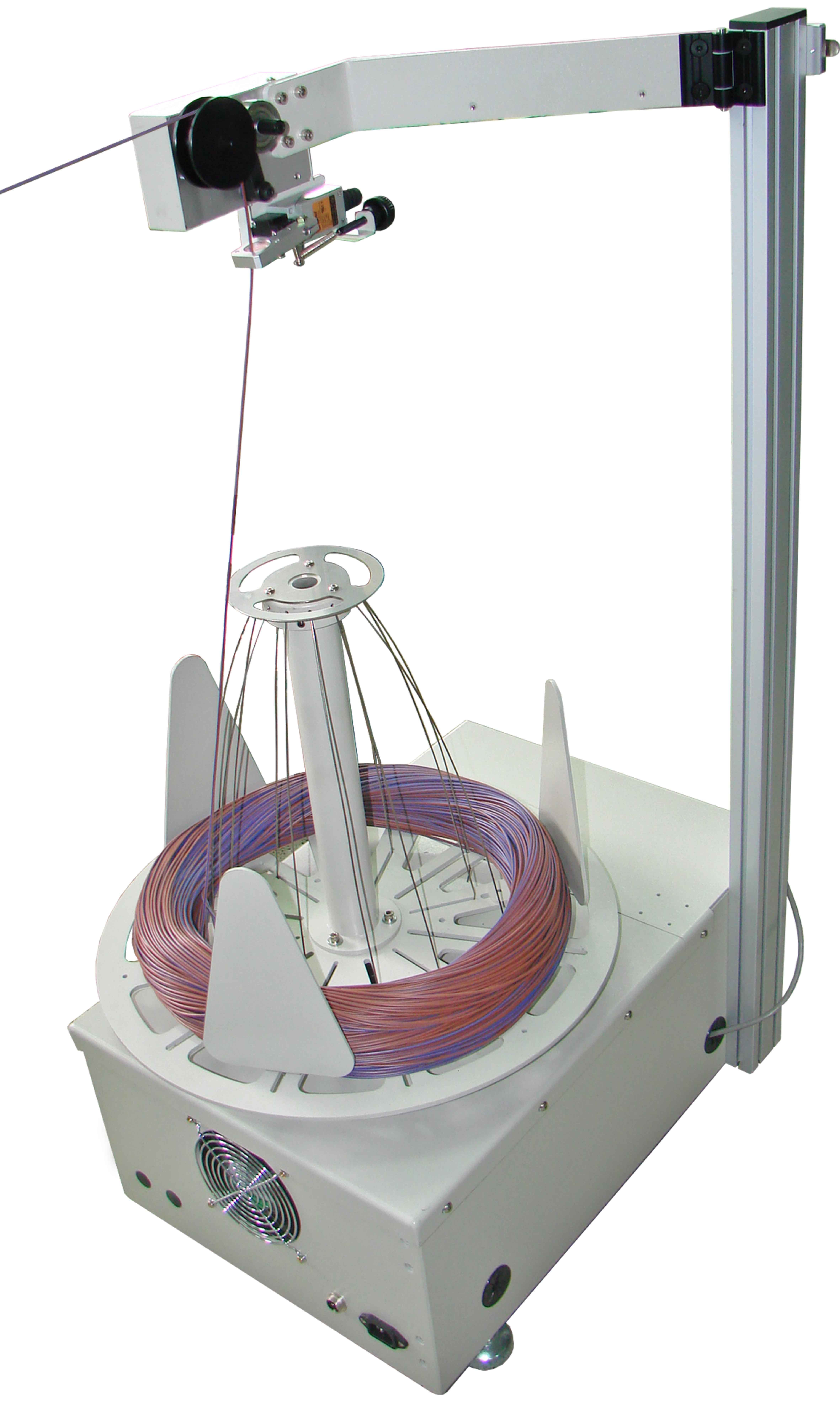

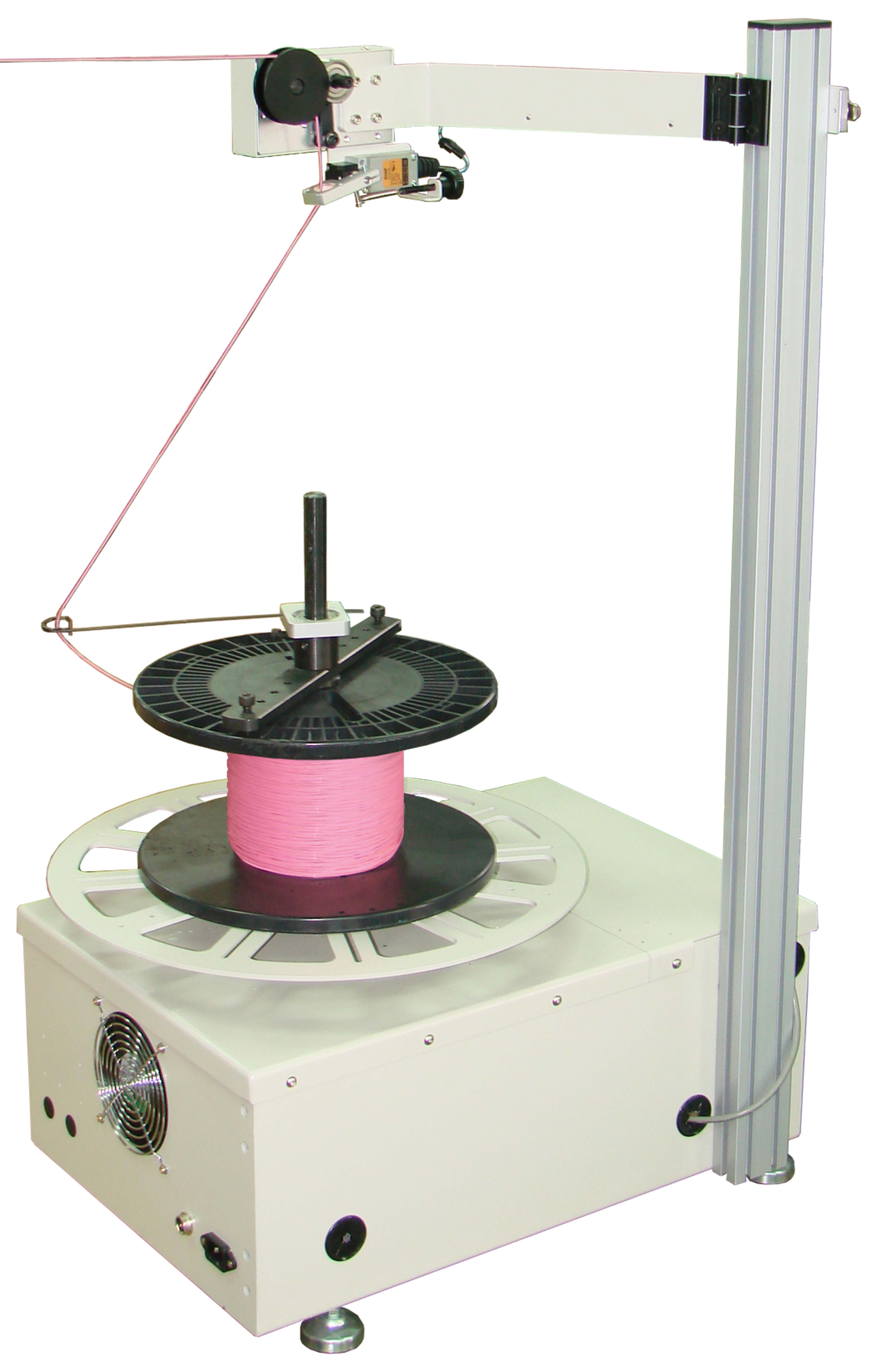

FE-AF160A 丸軸裝還原放線機 |
|
Auto Wire Feeder For Wires In Roll / Spool |
特點說明
| 1. | 本機採用ＤＣ無刷馬達驅動，無碳刷消耗的問題，扭力輸出穩定。 |
| 2. | 使用彈簧式軸心，可將丸裝電線張開，在送線過程中不會有打結情況，可順利送線。 |
| 3. | 送線機速度可調整，配合各廠切斷機、裁線機、全自動裁線端子機，適時適量操作，提高產能及效率。 |
| 4. | 丸裝，軸裝線徑8 m/m以內電線，均適用。 |
| 5. | 電線送出可設定正反轉。 |
FEATURES
| 1. | Use DC motor without brush, less consumption of brush, output force steadily. |
| 2. | Use axis of spring type, it can open the roll wire to prevent tied during wire feeding more smoothly. |
| 3. | Speed adjustable for wire feeding, available for any brands of cutting machine, full automatic wire cutting & crimping machine, increase capacity and efficiency. |
| 4. | Suitable below 8 m/m size of roll wire and spool wire. |
| 5. | Can set CW/CCW rotation for wire feeding out. |
規格 SPECIFICATIONS
|
機型 Model |
FE-AF160A |
|
外觀尺寸 Dimension |
580x500x1050mm |
|
重量 Weight |
51Kgs(110V)/43Kgs(220V) |
|
電源 Power supply |
AC110V/220V |
|
載重 Carry Weight |
30Kgs |
|
適用線徑 Applicable size |
0.5~10mm |
