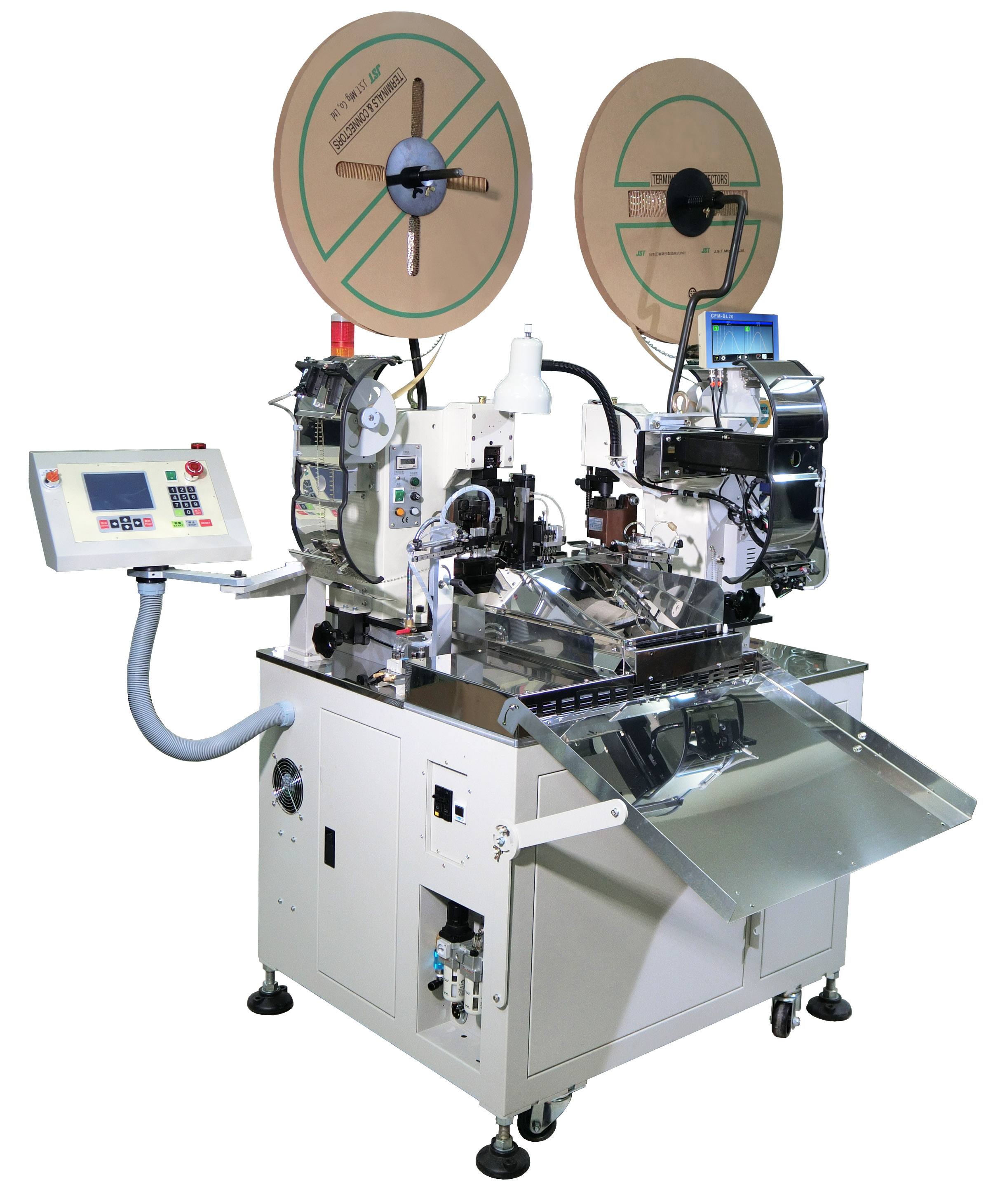

FE-112A

全自動裁線剝皮壓著機(雙頭)

Full Automatic Wire Cutting, Stripping & Crimping Machine (Twin-head)

特點說明

1. 全機採用伺服馬達控制系統驅動，配合超靜音伺服端子機而設計之新機型。
2. 全螢幕中、英控制顯示，三刀式的切、剝裁線方式。使剝皮精度更準確，操作更簡單，性能更穩定。
3. 端子壓著位置，由螢幕控制調整易學又快速上線。
4. 設計有50組記憶功能，可縮短更換線材調整時間。
5. 本機配有預送機構，在操作時能將所需的線送至定點，不致有拉扯現象。
6. 搭配FE-CFM壓著端子壓力管理裝置，操作時減少不良率，可選配FE-AF160B還原放線機，以提升品質。

FEATURES

1. The new designed model is adopted servo motor control and operated with noiseless servo, crimping machine.
2. Panel display Chinese or English is available. Use the touch screen monitor and the wire strip length in triple-blades style can be adjusted on the main control panel. It is quick to change the setting and easy to operate and accurate result.
3. The crimping seat can be adjusted on the touch screen easily learning and fast manual.
4. The 50 sets of memory files can be saved or retrieved for required actions.
5. The pre-feed mechanism can feed the wire to the fixed point to prevent it from broken.
6. To collocate FE-CFM, crimp force system can avoid the poor quality and also the optional FE-AF160B wire feeder will increase the quality.

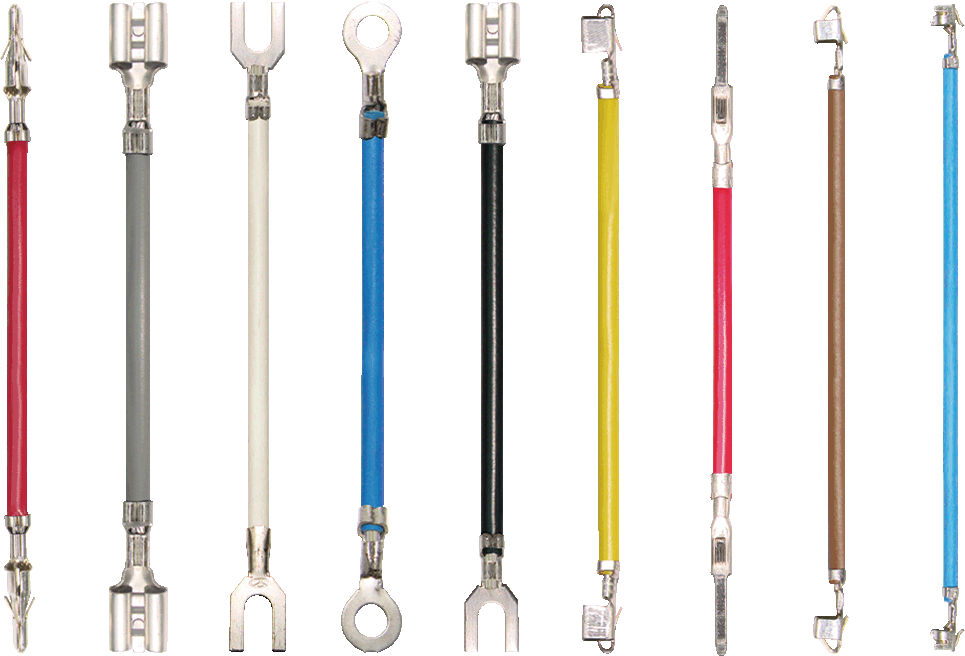

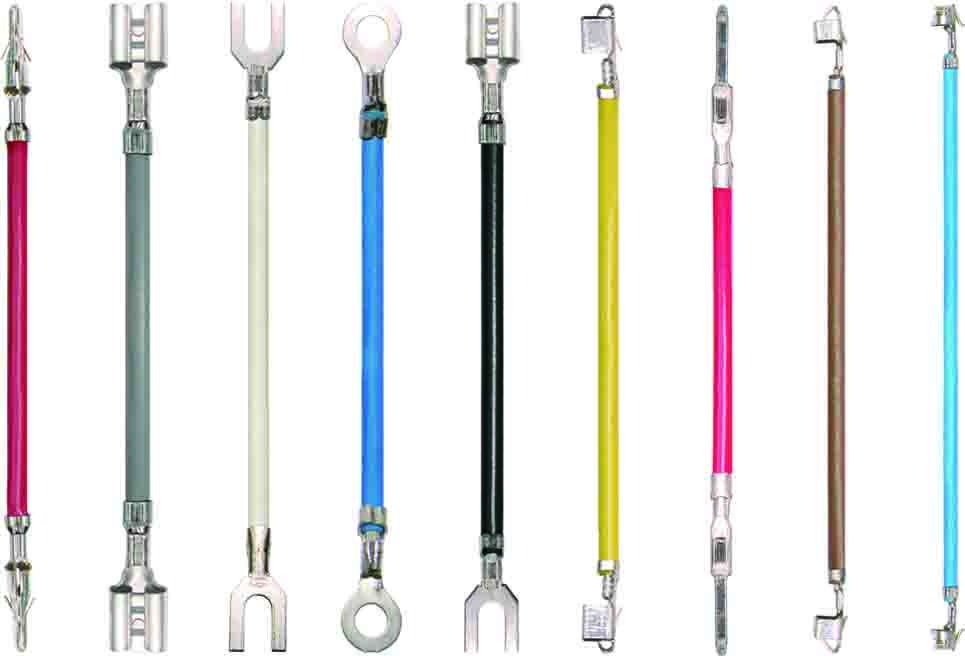

樣本 SAMPLES

規格 SPECIFICATIONS

機型

MODEL

FE-112A

外觀尺寸

DIMENSION

2040 x 1130 x 1400 mm 配合料盤

(to match up with the rolling.) 600mm

重量

WEIGHT

435Kgs

電源

POWER SUPPLY

AC 220V 50/60Hz 單相(1 phases);

5A / 1100VA / 770W

功能

FUNCTION

電線尺寸切斷,單、雙邊剝皮,半剝,

單、雙端壓著
Cutting Wire, Stripping on one side or both tow sides, Half-stripping,
 Crimping on one end or both tow sides.

適用線徑

APPLICABLE SIZE

AWG#16~#30 標準 (Standard)

壓著能力

CRIMPING FORCE

2.5 Ton

servo type crimping machine

伺服端子機

氣壓

AIR PRESSURE

6.0 ~ 7.0 Kgs 需要使用乾燥空氣

(It's necessary to use dry air.)

切斷長度

CUTTING

LENGTH

45 ~ 999,999mm 標準(Standard)
　最短PVC= 38mm 視端子而定
(The shortest length of PVC is 38mm depends on terminals.)

剝皮長度

STRIPPING

LENGTH

1 ~ 14mm

產能

CAPACITY

47~50 pcs / min (100mm 以內)

檢出裝置

DETECTORS

EQUIPPED

電線有無,端子有無,端子壓著有無,

線材過載檢知
Wire detecting, Terminal detecting, Miss-crimping, Out of wire and wire
overload examination.

選配組 OPTIONAL SET

FE-AF160A



FE-AF160B



FE-C3



FE-FA



FE-HA
