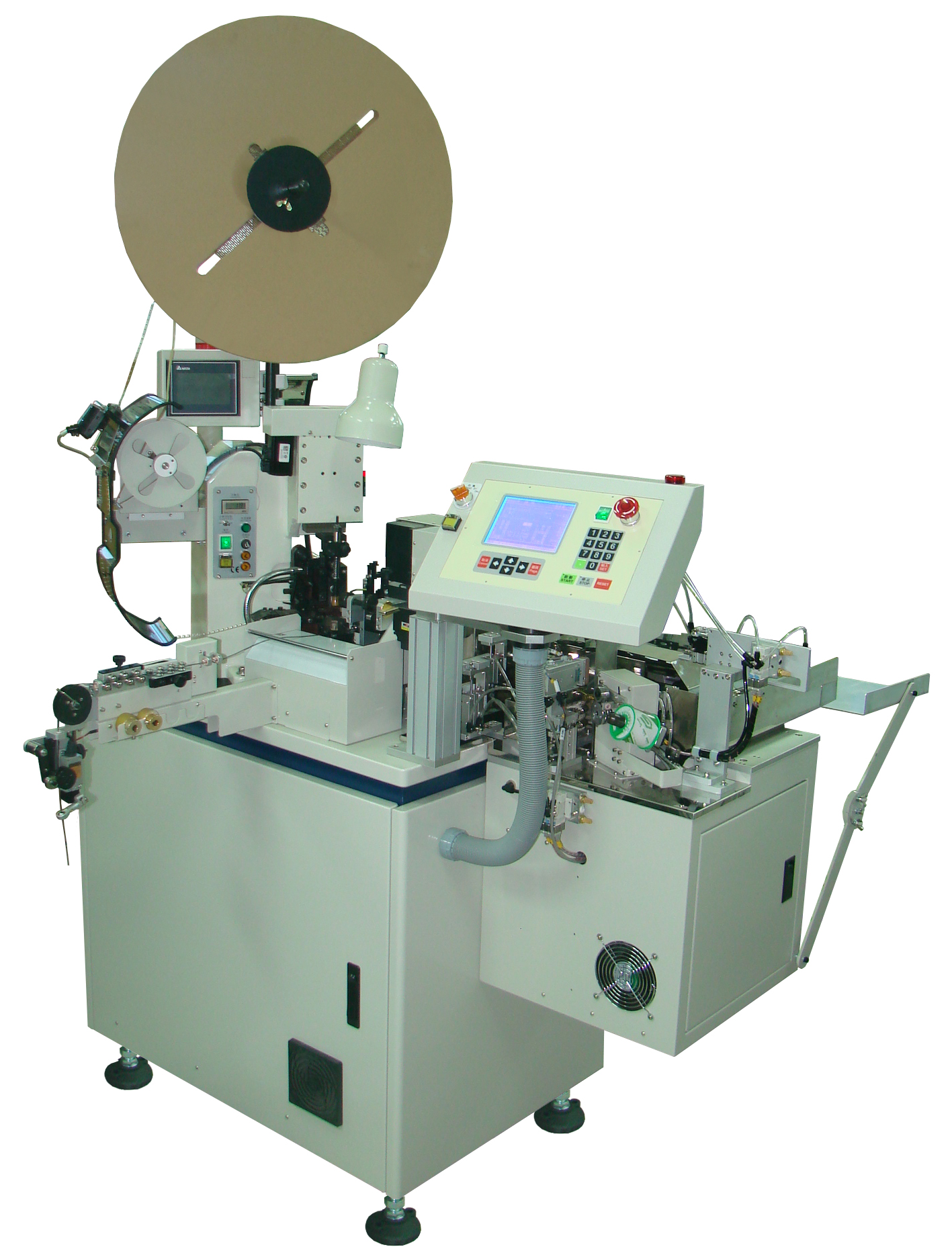

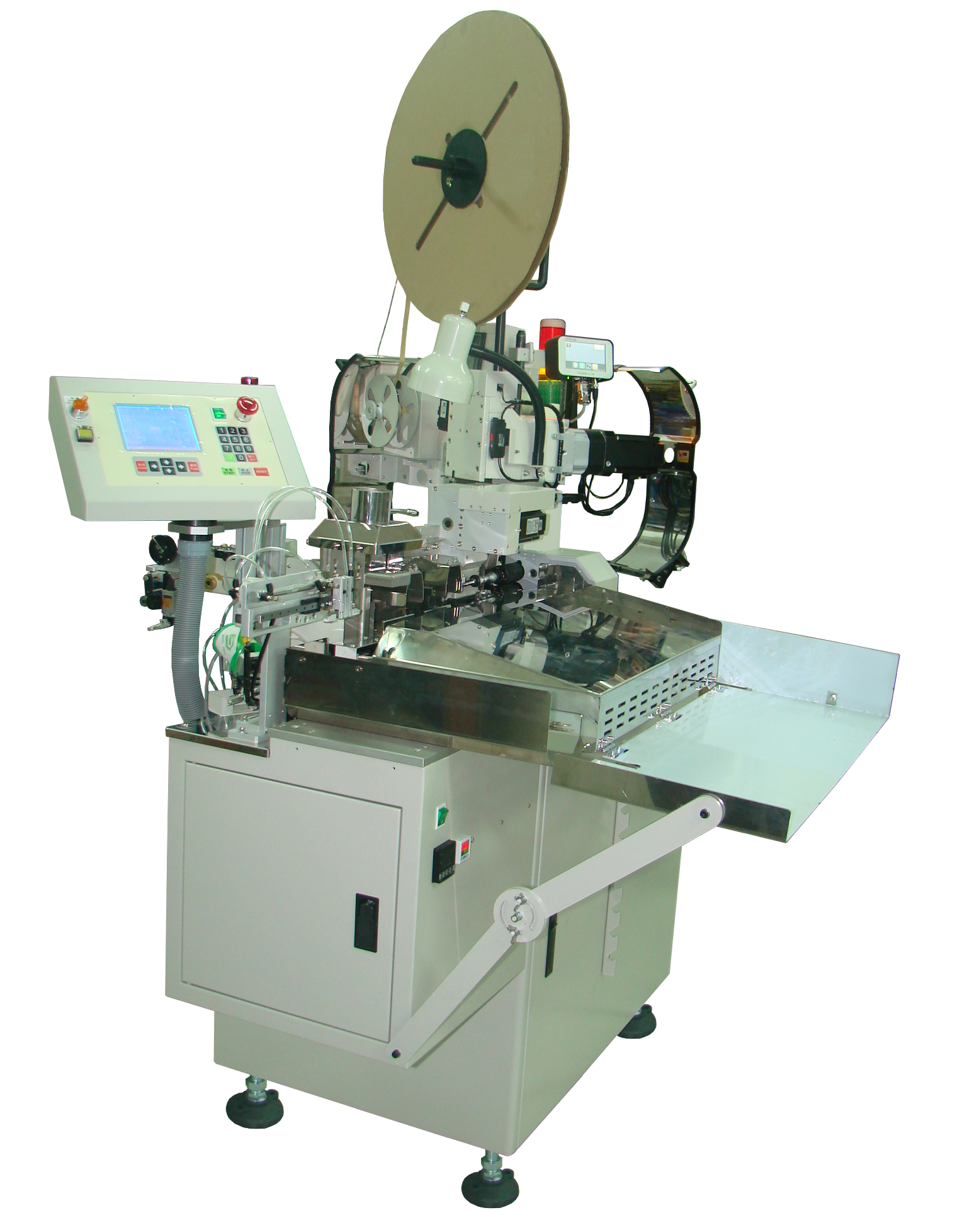

FE-110CS 全自動端子壓著單頭扭線沾錫機 |
|
Full Automatic Terminal Crimping Soldering Machine (Single head crimping) |
特點說明
| 1. | 本機是專為一頭打端，一頭沾錫而設計，採用伺服馬達驅動，使尺寸更精準。 |
| 2. | 速度可分10段，100mm長以內，最快每分鐘47~50條，採用單刀電腦自動調整搭配之切斷，剝皮，壓著端子及沾錫等相關動作。 |
| 3. | 調整機台及分解動作，採電腦控制等模式，操作簡單又方便。 |
| 4. | 沾錫角度接近90度點，使線徑沾錫平均。 |
| 5. | 夾線位置與沾錫端點可調至約15mm，能控制線材沾錫端不易彎曲，沾點位置更精準。 |
| 6. | 可任意在螢幕更改沾錫長度，不需人工調整錫爐高低。 |
| 7. | 錫液面不足時，會自動檢知並自動供錫。 |
| 8. | 沾錫下沾及上升速度均可分別調整。 |
| 9. | 錫爐之設計有自動撥除錫屑之功能，以保持沾錫處無錫屑。 |
| 10. | 本機具錫爐溫度調整功能，溫度達到設定範圍才能運作生產。 |
| 11. | 設計50組記憶功能，可縮短更換線材調整時間。 |
| 12. | 本機配合伺服端子機，橫，直卡式模均可調整。 |
| 13. | 操作面板可選擇中文，英文顯示，使操作更簡易明瞭。 |
| 14. | 選配品 FE-CFM壓著端子壓力管理裝置，端子機可選配自動高度微調機構或手動高度微調鈕。 |
FEATURES
| 1. | This machine suitable for one side crimping and the other side soldering process. The servo motor is adopted to control for optimal accuracy. |
| 2. | 10 stages speed, within 100mm, 47 to 50 pcs per minute, single blades design, computerized adjustment for cutting, stripping and soldering process. |
| 3. | There is auto and step function, easy to set up when adjustment, controller by computer, easy to operate. |
| 4. | Nearly 90 degree angle of the soldering, which provides average soldering to the wire. |
| 5. | Wire clamp position and top of the soldering can adjust to 15mm, well control wire not to bending during processing, soldering position more accuracy. |
| 6. | Change the soldering length easily on the screen, no need to adjust the height of tin stove by manually. |
| 7. | Tin liquid level is not enough, informs and provides the tin automatically. |
| 8. | The speed of soldering up and down can be adjusted separately. |
| 9. | The design of stove, an automatic wiper is provided to remove tin chips keep the tin stained area free of shavings. |
| 10. | The tin stove temperature can be adjusted, it can work when the temperature reaches setting range. |
| 11. | With 50 sets of memories to shorten wire changing time. |
| 12. | Operated with servo type crimping machine for side or end type applicator. |
| 13. | Panel display Chinese or English is available and easy to operate. |
| 14. | Option FE-CFM crimp force system, crimping machine can option auto crimping height adjustment mechanism or manual height adjustment. |
規格 SPECIFICATIONS
|
機型 ModeL |
FE-110CS |
|
外觀尺寸 Dimension |
1230x1200x1620mm |
|
重量 Weight |
340 Kgs |
|
電源 Power supply |
AC220V-50/60Hz單相(1 phases) |
|
功能 Function |
電線尺寸切斷，單、雙邊剝皮，單端壓著，單端扭線，單端沾錫 Cutting wire、Stripping on one end、Stripping both ends、Crimping on one end、twister one end |
|
適用線徑 Applicable size |
AWG#l6~#30(視線材而定 Depends on wire material) |
|
壓著能力 Crimping force |
2.5 Ton servo type crimping machine伺服端子機 |
|
氣壓 Air pressure |
6~8Kgs需使用乾燥空氣 (It's necessary to use dry air.) |
|
切斷長度 Cutting length |
36~999.999mm標準(Standard)-中間留皮(Left the jacket in the middle) |
|
剝皮長度 Stripping length |
1~30mm |
|
產能 Capacity |
47~50pcs/min(within100mm以內) |
|
檢出裝置 Detectors equipped |
電線有無、端子有無、氣壓不足、錫液面不足檢知、自動供錫、溫度檢知Wire detecting Terminal detecting. Air pressure insufficient checking. The liquid level of tin insufficient examination Providing the tin automatically. Temperature checking |
選配組 OPTIONAL SET
FE-AF160A
FE-AF160B
FE-C3
FE-FA
