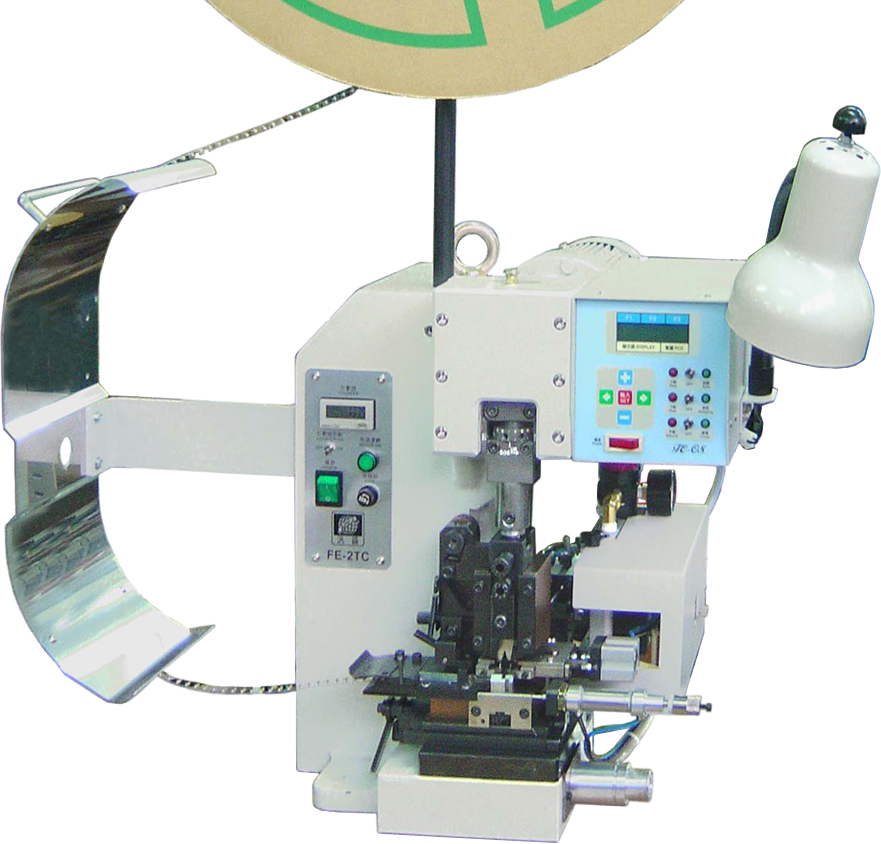

FE-2TCS 連續剝皮打端機 |
|
Semi-Automatic Stripping & Crimping Machine |
特點說明
| 1. | 本機採用先進變頻馬達驅動，超靜音、省電、零件少易保養。 |
| 2. | 配合氣動源、夾線、剝皮、刀座退後、吸屑一氣呵成；且可視線材粗細硬度調整進刀時間，剝皮穩定以達產品精準。 |
| 3. | 吸屑時間可調，以利次動作的執行。 |
| 4. | 夾線、剝皮、刀座退後、吸屑均有自動及寸動裝置，以利操作過程的調整。 |
FEATURES
| 1. | Machine fit by inverter motor, silent, save energy & eliminate maintenance. |
| 2. | Install air absorb, clamp, strip, back at one process. According to wire situation to adjust blade delay time, stripping stable to reach products quality. |
| 3. | Chip suction/blower time can be adjusted to facilitate the next actions. |
| 4. | With "Auto" & "Step" mode for adjust requirement. |
規格 SPECIFICATIONS
|
機型 Model |
FE-2TCS |
|
外觀尺寸 Dimension |
435x550x530mm |
|
重量 Weight |
115 Kgs |
|
電源 Power supply |
AC100V/220V-50/60Hz |
|
出力 Stroke strength |
2.0 Ton |
|
衝程 Stroke |
30 mm |
|
剝皮長度 Stripping length |
1.0~6.0mm |
|
適用線徑 Applicable size |
AWG#20~AWG#32(視線材而定Depends on wire material) |
|
氣壓 Air pressure |
5~7Kgs |
選配組 OPTIONAL SET
FE-FA
FE-CFM-L1
FE-PT01N
