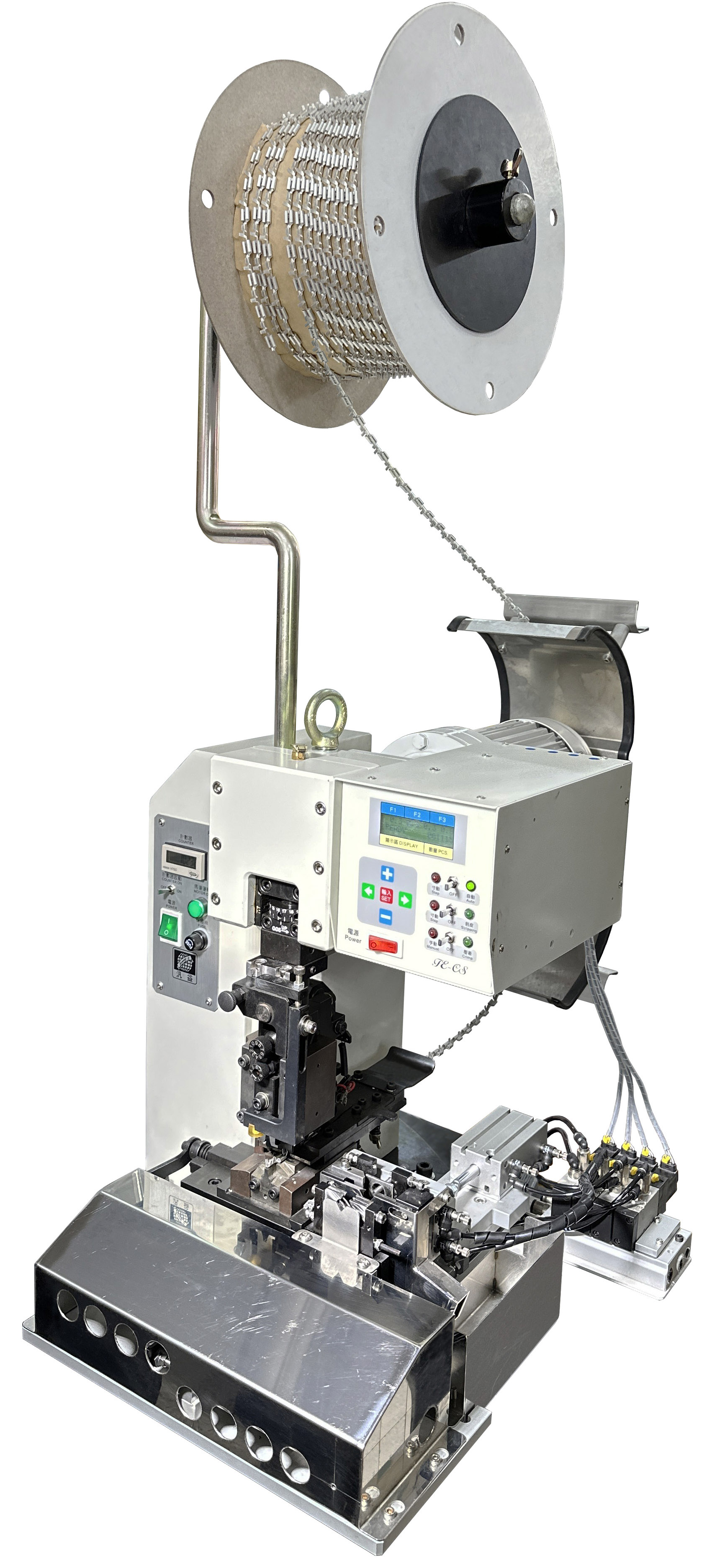

FE-2TCS-E 直式剝打機 |
|
Terminal Stripping & Crimping Machine For End Type Applicator |
特點說明
| 1. | 本機採用先進變頻馬達驅動，超靜音、省電、零件少易保養。 |
| 2. | 搭配M4直式卡式模使用，自動剝皮、壓著直式端子。 |
| 3. | M4橫式卡式模可用，部份零件需更換。 |
| 4. | 配合氣動源、夾線、剝皮、刀座退後 一氣呵成；且可視線材粗細硬度調整進刀時間，剝皮穩定以達產品精準。 |
| 5. | 夾線、剝皮、刀座退後均有自動及寸動裝置，以利操作過程的調整。 |
FEATURES
| 1. | Machine fit by inverter motor, silent, save energy & eliminate maintenance. |
| 2. | Fit with FE-M4E End type applicator, auto stripping and crimping. |
| 3. | Only need to change some parts to use FE-M4S side type applicator. |
| 4. | By using air absorb, stripping, clamping, crimping , blade back at one process, delay time adjustable base on wire diameter and material, to reach stable stripping process and products quality. |
| 5. | With "Auto" & "Step" mode for adjust requirement. |
規格 SPECIFICATIONS
|
機型 Model |
FE-2TCS-E |
|
外觀尺寸 Dimension |
4710x530x550mm |
|
重量 Weight |
120 Kgs |
|
電源 Power supply |
AC100V/220V-50/60Hz |
|
出力 Stroke strength |
2.0 Ton |
|
衝程 Stroke |
30 mm |
選配組 OPTIONAL SET
FE-FA
FE-CFM-L1
