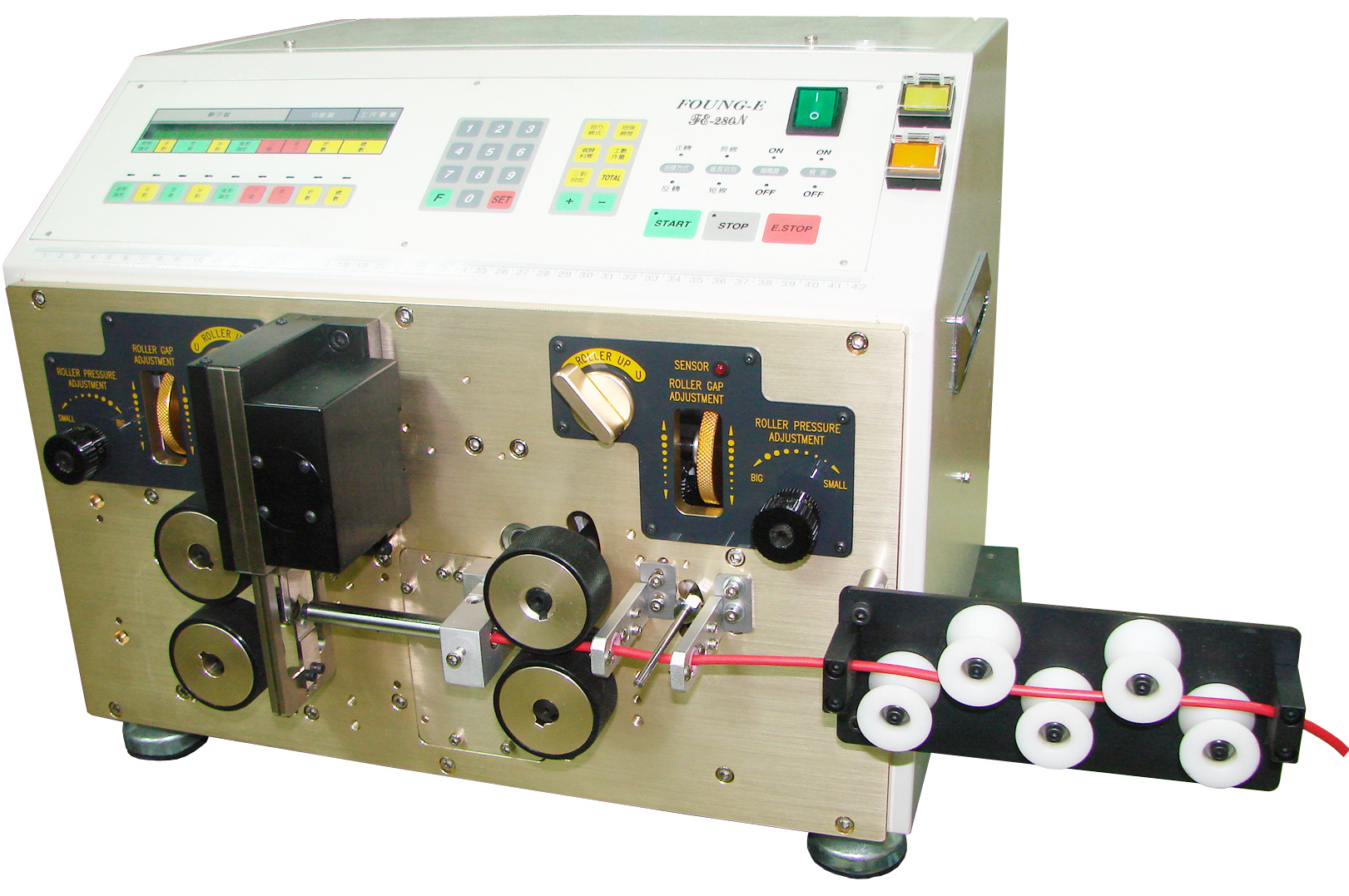

FE-280N-L3 高精度裁線剝皮機-強力型 |
|
High Accuracy Wire Cutting & Stripping Machine - Strong Strength Type |
特點說明
| 1. | 本機使用伺服器馬達精度高、定位準，長時間使用不發熱。 |
| 2. | FE-280N-L3 強力型可裁至AWG#10 ~ #30。多芯線，具高扭力，增加裁線剝皮功能。 |
| 3. | 適用多種線材，如:電子線、電源線、電腦線、網路線、鐵弗龍線、隔離線、同軸線、套管等。 |
| 4. | 視線材滾輪間隙、具壓力調整功能。細線可選配PU滾輪。 |
| 5. | 出線滾輪採用氣缸抬昇機構，利於10cm長 CABLE、電源線的裁剝。 |
| 6. | 搭配FE-AF160A還原放線機，連線主機裁出更精準的尺寸。 |
FEATURES
| 1. | This machine adopts servo motor, high accuracy, correct orientation, without high temperature issue. |
| 2. | FE-280N-L3 can cut the Max. AWG#10 ~ #30 cable, to have high force and increase the cutting & stripping function. |
| 3. | It´s available to process the wire of power cord, VSF, IV, KV Teflon, coaxial cable etc. |
| 4. | To adjust the gap of rollers depends on the actual material of wire which also with the pressure adjustment function. Option PU roller for thin wire. |
| 5. | Wire feed-out raising by cylinder. It used for stripping cable, power cord..etc within 10cm. |
| 6. | To collocate FE-AF160A with main machine for wire feeding which can process more precise result. |

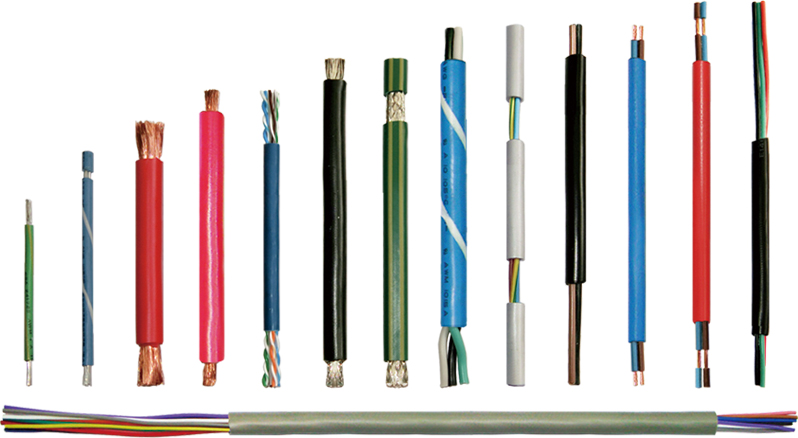

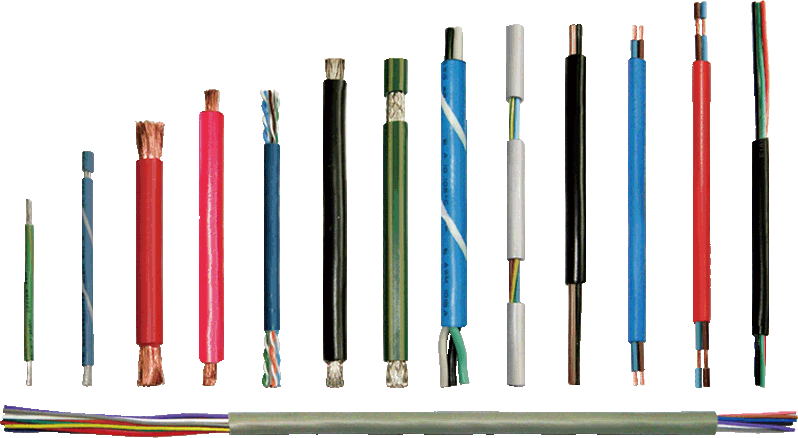

樣本 SAMPLES
規格 SPECIFICATIONS
|
機型 ModeL |
FE-280N-L3 |
|
外觀尺寸 Dimension |
480x500x380mm |
|
重量 Weight |
48 Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
消耗電力 Power consumption |
Min.20W ~Max.400W |
|
適用線徑 Applicable size |
AWG#10~32(視線材而定Depends on wire
material) |
|
切斷長度 Cutting length |
1~60,000mm |
|
切斷誤差 Cutting tolerance |
可修正Adjustable |
|
剝皮長度 Stripping length |
1~99mm(視線材而定Depends on wire
material) |
|
功能 Function |
可液晶數位顯示。定長兩端半剝、全剝、切斷、三段剝。寸動前進後退。線材有無。裁線速度、總數、把數、設定簡易。 LCD panel. Setting appointed length on both sides, half-stripping ,full-stripping, cutting, tri-section stripping. Step feeding. Wire detecting. Easy setting all function as your desire. |
選配組 OPTIONAL SET
FE-AF160A
FE-AF160B
FE-C1
