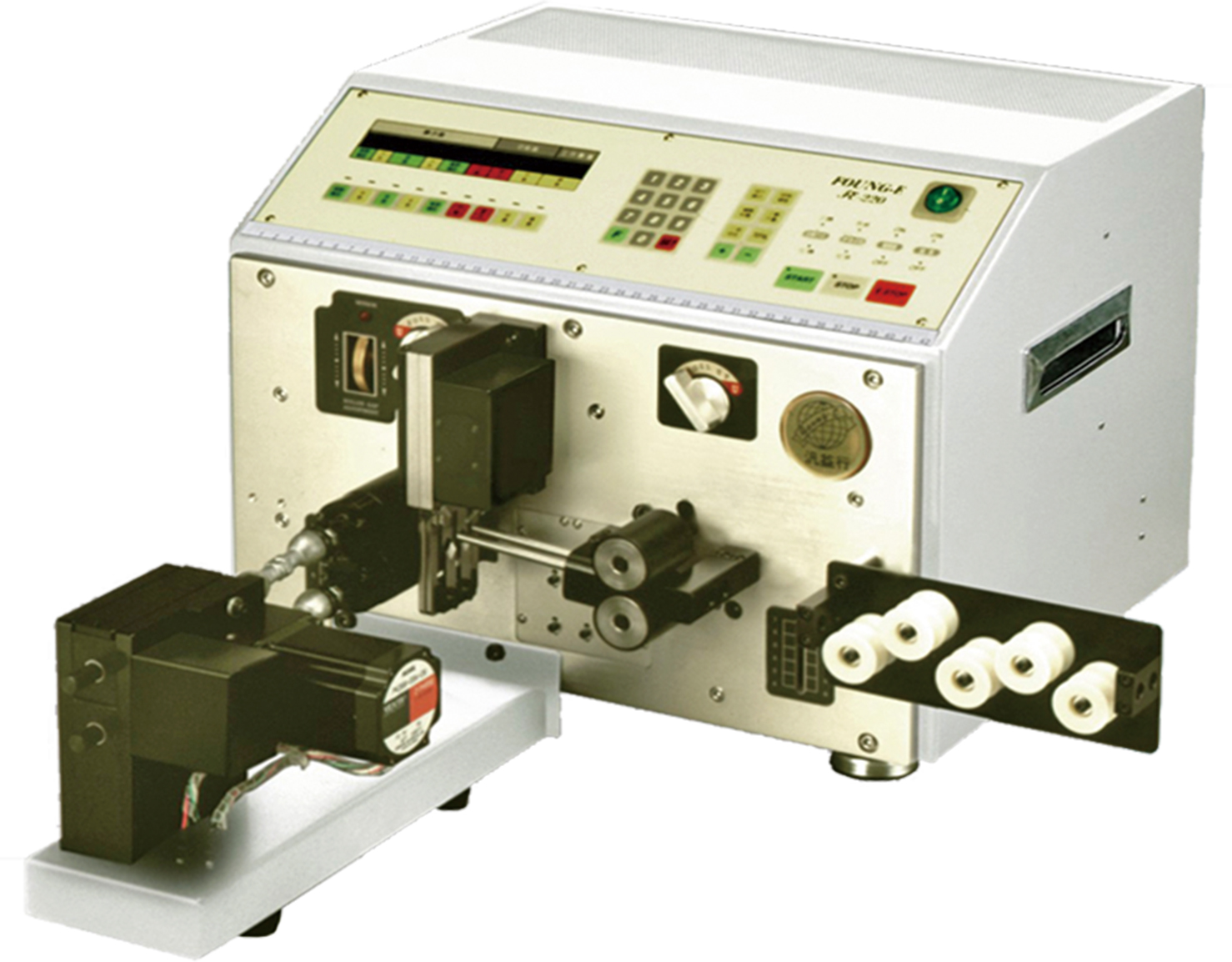

FE-220T 全自動裁線剝皮扭線機 |
|
Full Automatic Wire Cutting Stripping & Twisting Machine |
特點說明
| 功能與FE-220相同，增加扭線功能。針對電子線、矽膠線、鐵弗龍線、玻璃纖維線、隔離線、同軸線、套管等，全自動剪裁、剝皮、半剝、中間剝皮、扭線特殊功能；可瞬間變換電線規格及尺寸。 |
FEATURES
| The function same as FE-220 with extra twisting function. This machine adoptable to VSF, IV, KV, Teflon, coaxial cable etc. Full Automatic cutting, stripping, half-stripping, middle stripping and twisting for diversified sizes wires. |
產能表 Capacity PC/HRS
* 測試條件 Setting Condition: F1-9 F2-9 F3-9

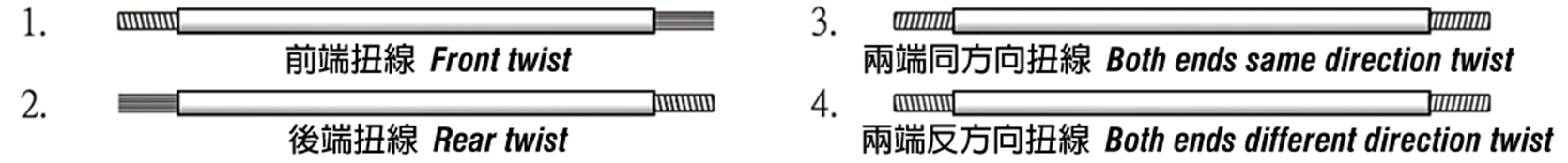

扭線方式 TWISTING METHOD
規格 SPECIFICATIONS
|
機型 Model |
FE-220T |
|
外觀尺寸 Dimension |
450x720x360mm |
|
重量 Weight |
39 Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
消耗電力 Power consumption |
Min.20W Max.220W |
|
適用線徑 Applicable size |
AWG#14~#32(視線材而定Depends on wire material) |
|
切斷長度 Cutting length |
5~60,000mm |
|
切斷誤差 Cutting tolerance |
可修正Adjustable |
|
剝皮長度 Stripping length |
1~99mm(視線材而定Depends on wire material)三段剝皮(Tri-section stripping)可至999mm |
|
扭線長度 Twisting length |
2~99mm(視線材而定Depends on wire material) AWG#16-32, 三段剝不可扭線(Tri-section stripping without twisting) |
選配組 OPTIONAL SET
FE-AF160A
FE-AF160B
FE-C1
