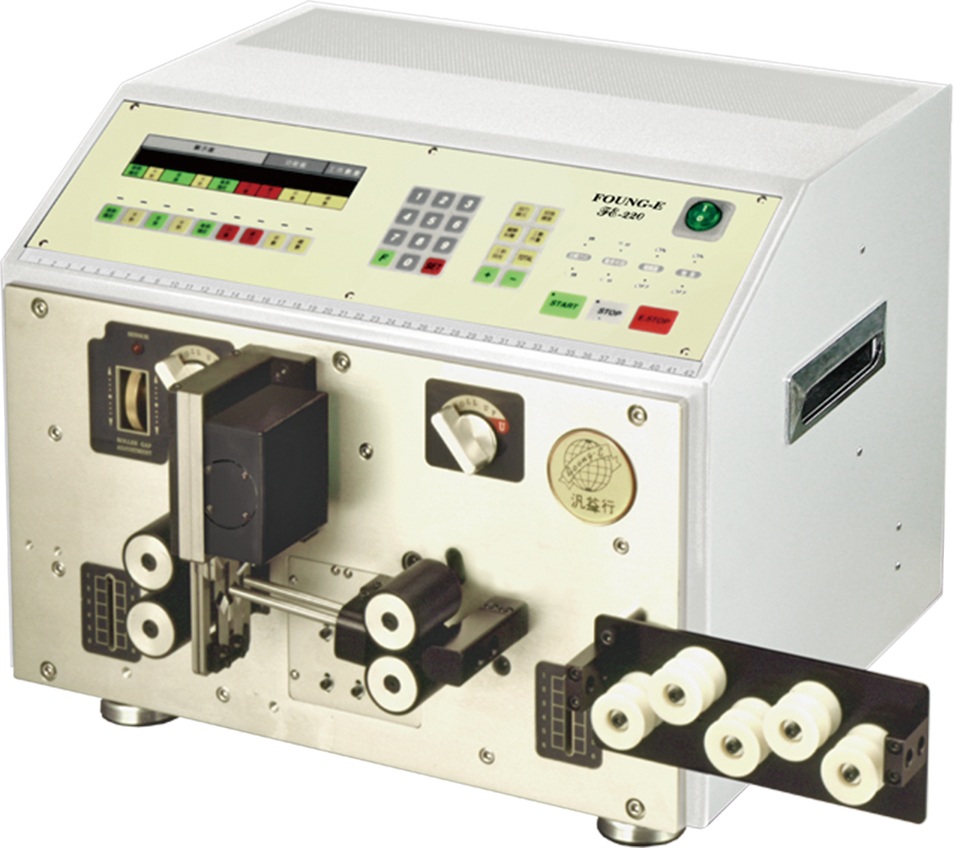

FE-220 全自動裁線剝皮機 |
|
Full Automatic Wire Cutting & Stripping Machine |
特點說明
| 1. | 業界唯一採用微步進馬達，進刀精度可切換0.02mm，0.01mm，0.005mm或0.002mm，利於裁剝細線及薄皮線材。適用於細線，短線裁剝，應用範圍廣泛。 |
| 2. | 短線裁切最短距離：標準模式40mm、特殊模式3mm。 |
| 3. | 可分別設定送線，進刀，退刀在剝皮的速度，隔離線亦可強制剝皮至99mm。 |
| 4. | 精度準，全剝，半剝，單頭或雙頭，三段剝皮，不易傷到芯線。 |
FEATURES
| 1. | The only one in the industry that adopts a micro-step motor, the feed accuracy can be switched, 0.02mm, 0.01mm, 0.005mm or 0.002mm, which is beneficial for thin wire and thin-skinned wire. It is suitable for thin wire and short wire cutting and stripping, and has a wide range of applications. |
| 2. | The min. cut length: standard 40mm, special design to 3mm. |
| 3. | The speed of feeding, blades can be set separately when stripping, isolation wire can strip to 99mm. |
| 4. | Accuracy result for full strip, semi-strip, tri-section strip, single or double side, without hurt inner core wire. |
剝皮方式 STRIPPING METHOD
短線Short wire
前(後)端剝皮Front ( Rear ) stripping
前(後)端半剝Front ( Rear ) half-stripping
三段剝皮Tri-section stripping

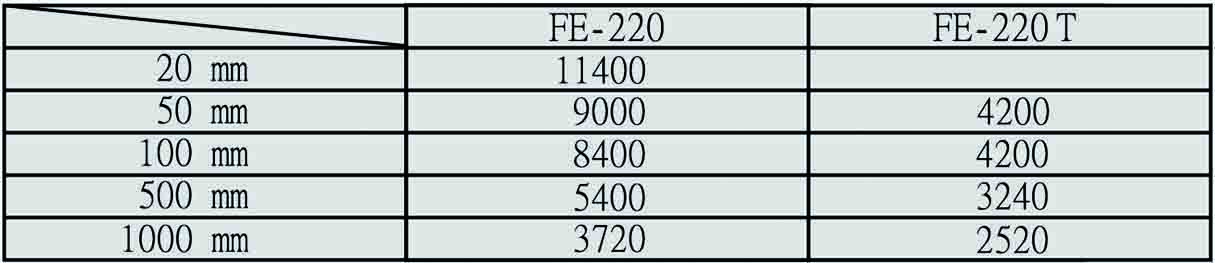

產能表 Capacity PC/HRS
* 測試條件 Setting Condition: F1-9 F2-9 F3-9
規格 SPECIFICATIONS
|
機型 Model |
FE-220 |
|
外觀尺寸 Dimension |
450x450x360mm |
|
重量 Weight |
36 Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
消耗電力 Power consumption |
Min.20W Max.220W |
|
適用線徑 Applicable size |
AWG#14~#32(視線材而定Depends on wire material) |
|
切斷長度 Cutting length |
5~60,000mm |
|
切斷誤差 Cutting tolerance |
可修正Adjustable |
|
剝皮長度 Stripping length |
1~99mm(視線材而定Depends on wire material)三段剝皮(Tri-section stripping)可至999mm |
選配組 OPTIONAL SET

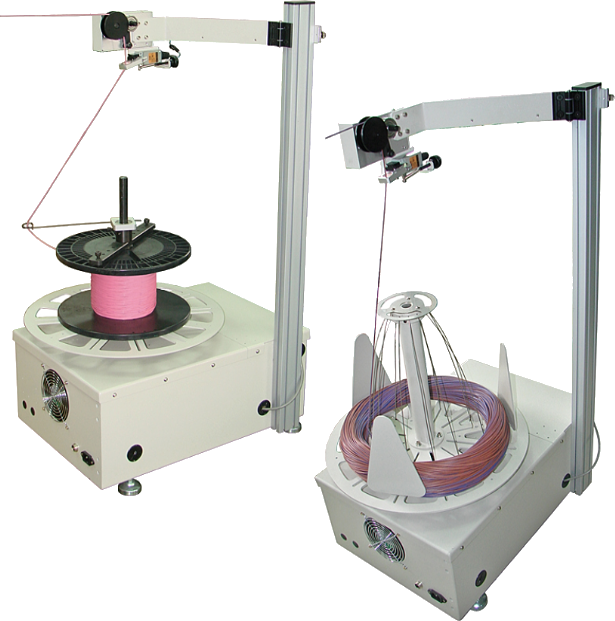

FE-AF160A

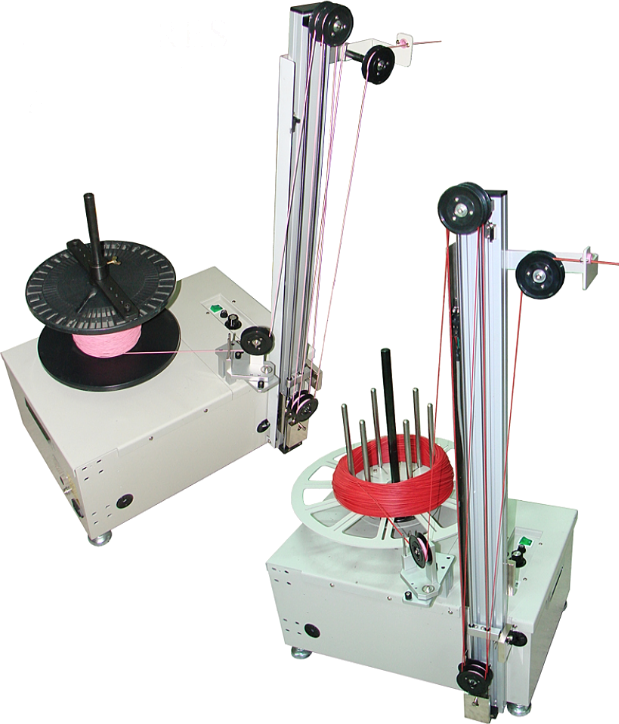

FE-AF160B
FE-C1
