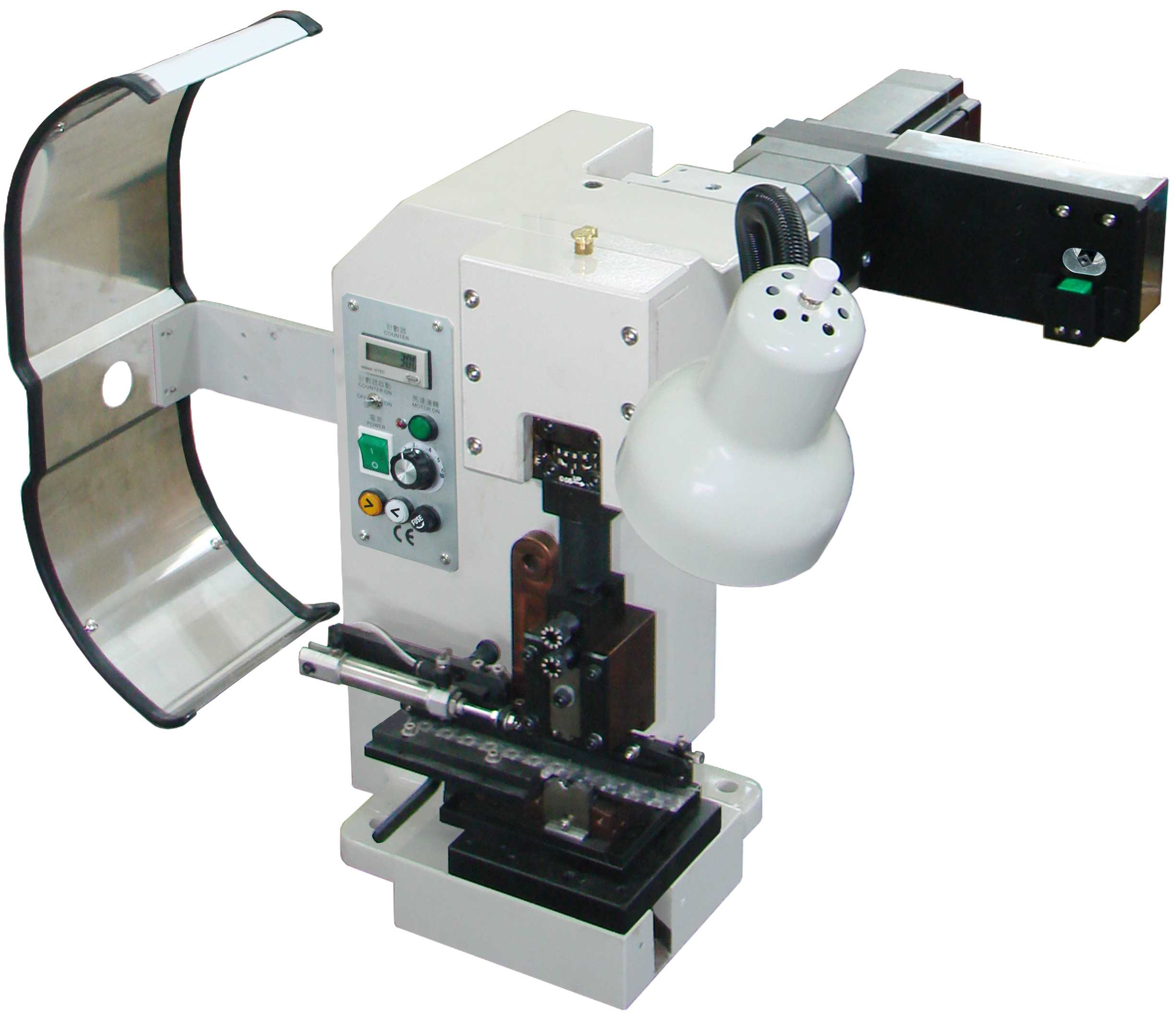

FE-2.5TS 伺服半自動連續端子壓著機 |
|
Semi-Automatic Crimping Machine-Servo Motor |
特點說明
| 1. | 本機採用伺服馬達驅動，靜音，振動小，穩定性高，出力足，減少傳統機械式零件及耗電的困擾。 |
| 2. | 端子壓著高度採用電動調模及手動調模併用，避免鉚刀因調模不良造成損失。 |
| 3. | 適用各型不同端子，壓著速度可多段調整。調速旋鈕於面板上易調整。 |
| 4. | 可搭配各廠牌橫，直式卡模。 |
| 5. | 可選配自動高度微調機構或手動高度微調鈕，方便快速調整端子壓著高度。 |
FEATURES
| 1. | This machine is driven by servo motor, quiet, low vibration, high stability, sufficient output, reducing the trouble of traditional mechanical parts and power consumption. |
| 2. | The crimping hight of the terminal is electrical adjusted or manually adjusted to avoid loss of the rivet due to poor mold adjustment. |
| 3. |
Applicable to different type of
terminals, the pressing speed can be adjusted in multi stages. Adjustable knob is easy to adjust on the panel. |
| 4. | Suitable for each brand applicator in side type or end type. |
| 5. | Optional auto/manual crimp height adjustment for easy adjust the crimping height. |
規格 SPECIFICATIONS
|
機型 Model |
FE-2.5TS |
|
外觀尺寸 Dimension |
550x550x490mm |
|
重量 Weight |
100 Kgs |
|
電源 Power supply |
AC220V-50/60Hz |
|
出力 Stroke strength |
2.5 Ton |
|
衝程 Stroke |
30 mm |
選配組 OPTIONAL SET
FE-FA
FE-CFM-L1
FE-PT01N
