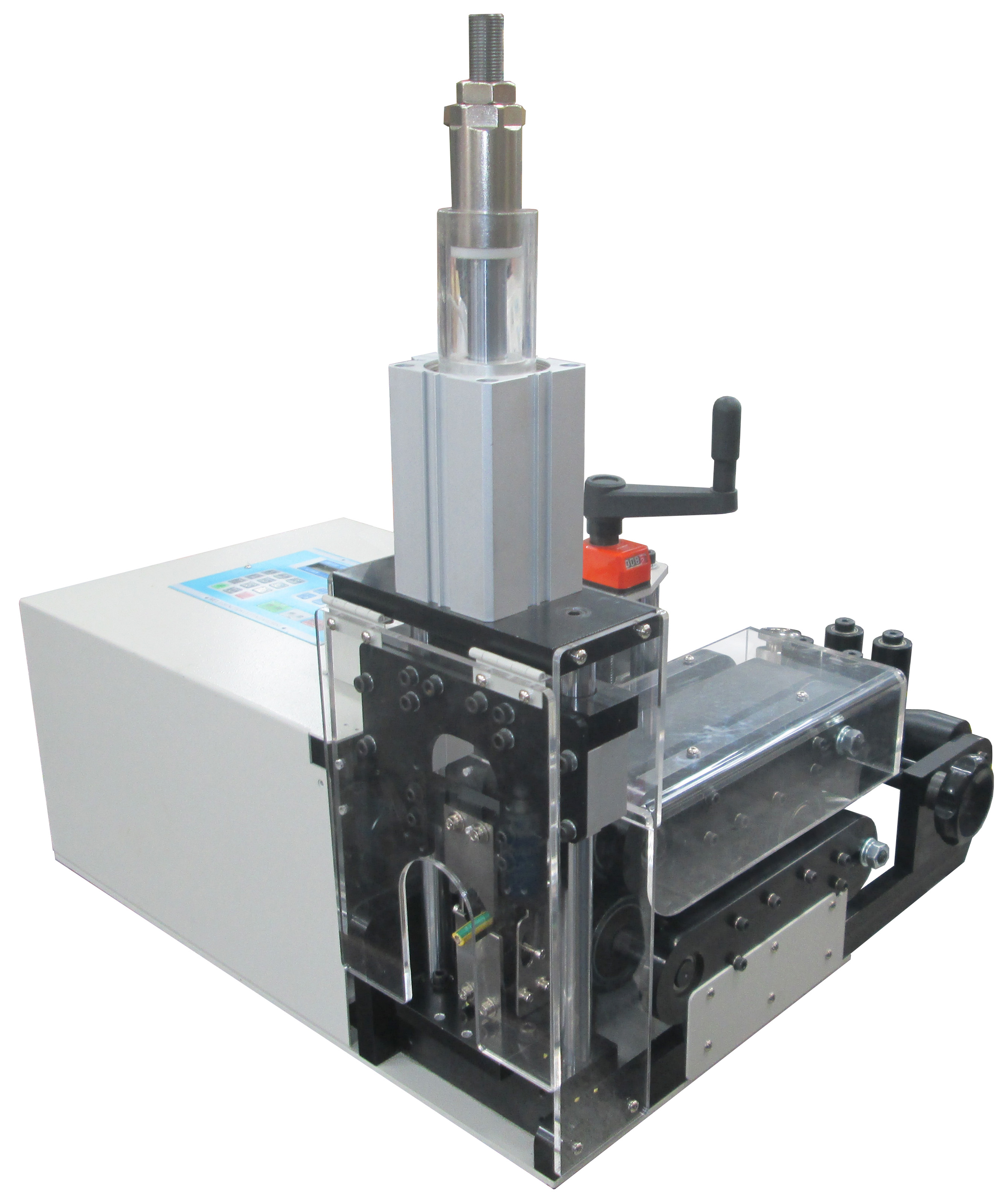

FE-6CR-A 粗線圓線管切斷機 |
|
Round Tube Cutting Machine (Thick Wire) |
特點說明
| 1. | 本機採用伺服馬達驅動送線，時規皮帶送料，準確度高，速度可微調。 |
| 2. | 面板按鍵有中，英文版，一目了然，易操作，切斷長度視材質可微調。 |
| 3. | 專用於各式圓管，波紋管切斷，切斷面平整，可切最大外徑 Ø40mm。 |
| 4. | 切刀座採用氣缸帶動，出力足，亦可選配切斷刀，最大切 AWG#6，Ø15 mm的多芯CABLE線。 |
| 5. | 大卷粗線 (45 kgs) 需配合放線機 FE-AF160C 操作。 |
FEATURES
| 1. | This machine is controlled by servo motor, Feeding by timing belt, which brings a more accurate result. Wire feeding speed can be adjust. |
| 2. | Chinese or English touch panel available, easy control. Depends on the input, cutting length can be adjust. |
| 3. | Specially for cutting round tube, ripple tube, neat cutting surface and he maximum the maximum OD is Ø40mm. |
| 4. | Cutter block by air cylinder, enough output power, cutting blades can be optioned, maximum cutting cable wire AWG6 within Ø15 mm. |
| 5. | For big thick roll wires (maximum 45 kgs), need to fit with FE-AF160C wire feeder for smooth operation. |

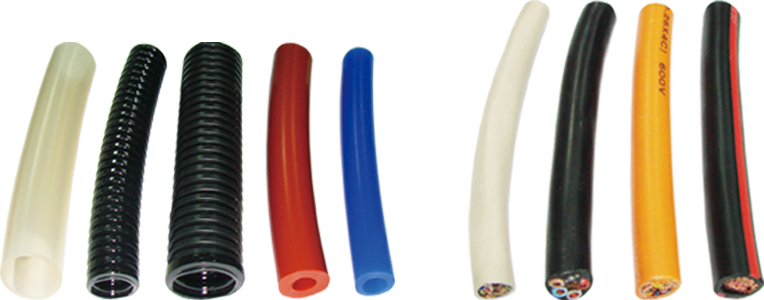

裁線範例 SAMPLE
規格 SPECIFICATIONS
|
機型 Model |
FE-6CR-A |
|
外觀尺寸 Dimension |
550x580x640mm |
|
重量 Weight |
43.5 Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
切斷長度 Cutting length |
1~60000mm |
|
使用範圍 Range |
CR05~32 (Max.40mm) Cable AWG#6(15mm) |
|
氣壓 Air Pressure |
5~7kgs |

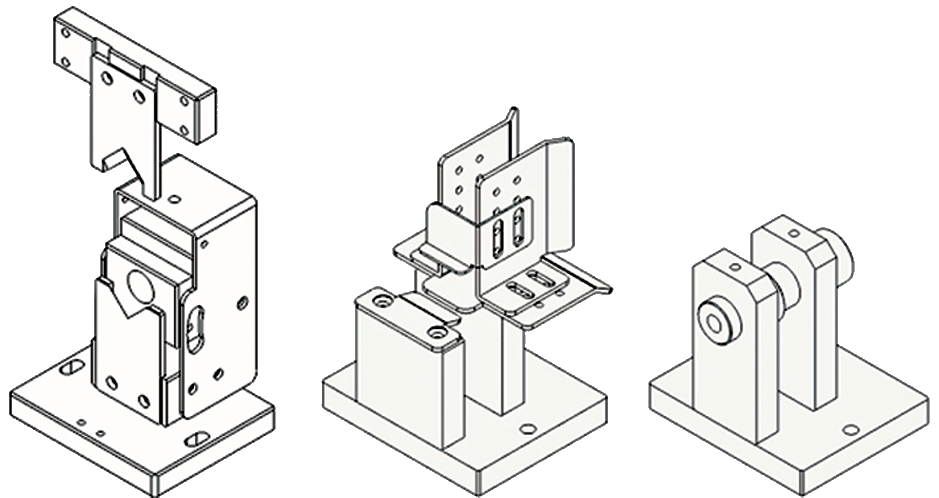

選配組 OPTIONAL SET
V切刀組 波浪管組 導管組
FE-AF160C
FE-AF160F
