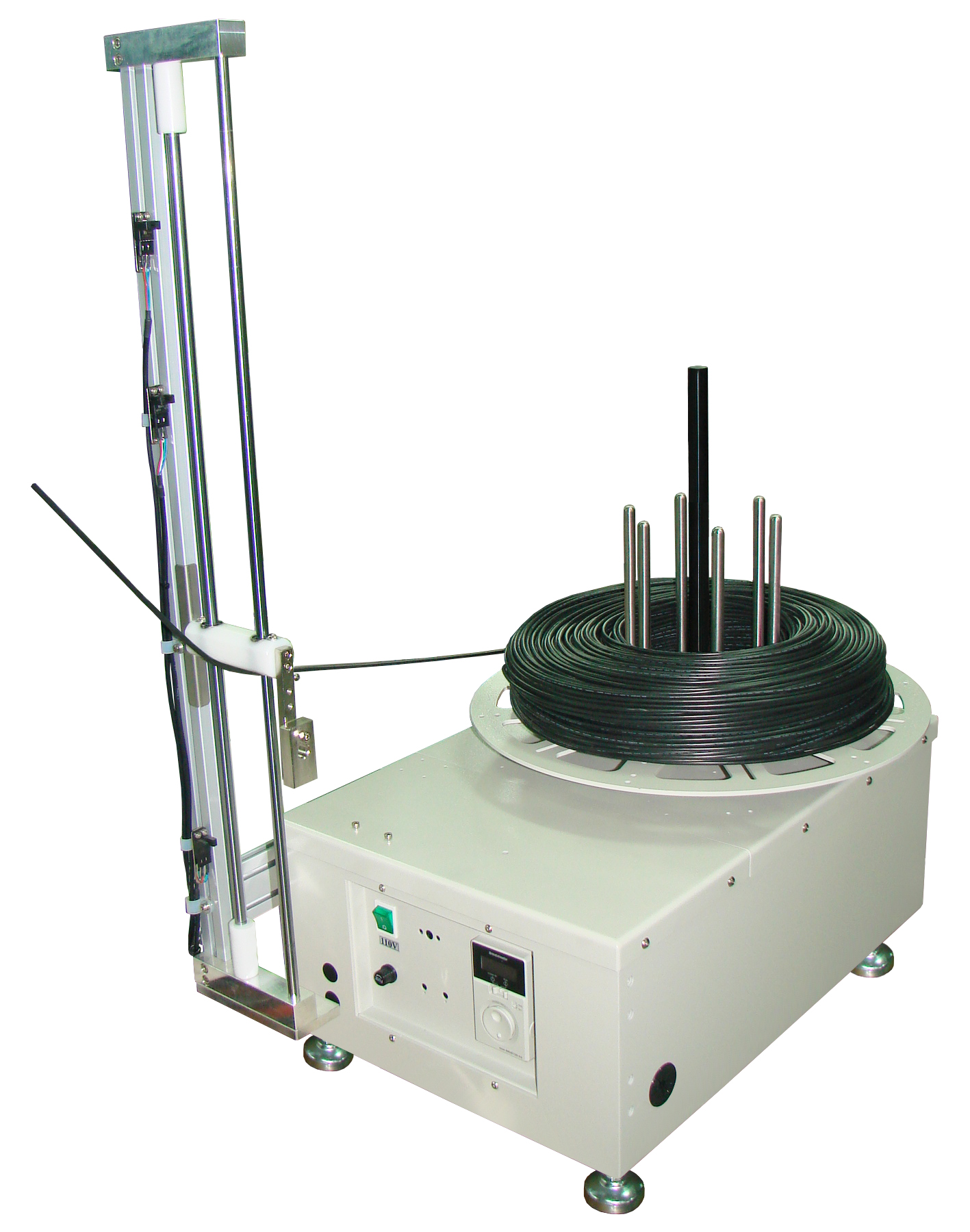

FE-AF160C 丸軸裝還原放線機(併排線粗線) |
|
Auto Wire Feeder For Wires In Roll / Spool ( Split And Thick Wire ) |
特點說明
| 1. | 本機採用DC無刷馬達驅動，無碳刷消耗問題，出力穩定。 |
| 2. | 可移動架線桿將丸裝線固定，亦可由軸裝放線由外沿放線，可順利送線。 |
| 3. | 送線速度可調整，配合各廠牌切斷機、裁線機適時適量操作，提高裁線切線穩定度。 |
| 4. | 丸裝軸裝二併線排線，Ø12以內粗線均適用。 |
FEATURES
| 1. | Use DC motor without brush, less consumption problem, output force is stable. |
| 2. | The wire rod can be moved to fix the roll wire, or the spool wire can be pull out from the outer edge, and the wire can be feed smoothly. |
| 3. | Feeding speed can be adjustable, able to match up with other brands of cutting machines. Timely and appropriate operation can upgrade the cutting stability. |
| 4. | It can be used for roll, spool, split and flat thick wires within Ø12. |
規格 SPECIFICATIONS
|
機型 Model |
FE-AF160C |
|
外觀尺寸 Dimension |
660x500x1135mm |
|
重量 Weight |
45Kgs |
|
電源 Power supply |
AC110V/220V |
|
載重 Carry Weight |
30Kgs |
|
適用線徑 Applicable size |
視線材而定 (Depends on wire material) |
