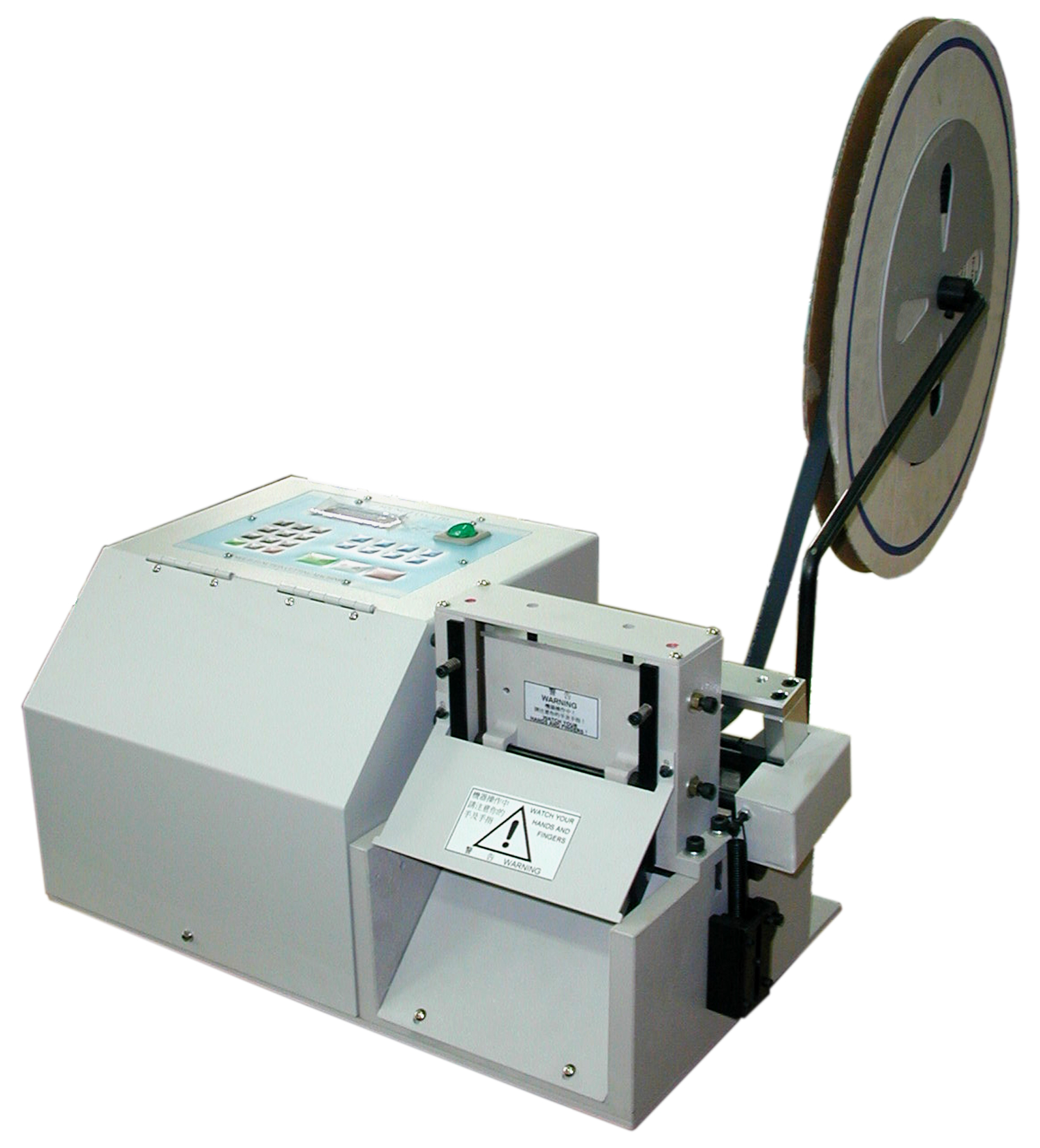

FE-6C 多用途切斷機 |
|
Multi-Function Cutting Machine |
特點說明
| 1. | 本機採用步進馬達控制，準確度高。送線速度可微調。 |
| 2. | 面板按鍵有中文或英文版，一目了然，易操作。切斷長度視材質可微調。 |
| 3. | 切料寬度可達80m/m，適用熱縮套管、排線、編織線等多用途。 |
| 4. | 操作可單動或連動。送線、切刀均可寸動操作。 |
FEATURES
| 1. | This machine is controlled by step motor , which brings more accurate result. Wire feeding speed can be adjust. |
| 2. | Chinese or English touch panel available, easy control. Depends on the input, cutting length can be adjust. |
| 3. | The cutting width of the machine can reach up to 80mm , it's suitable for heat shrinkable tube, flat cable, copper weave wire, etc. |
| 4. | Step or auto mode can be select. Feeding and cutting can be shift step by step. |
規格 SPECIFICATIONS
|
機型 Model |
FE-6C |
|
外觀尺寸 Dimension |
520x300x280mm |
|
重量 Weight |
32 Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
切斷長度 Cutting length |
1~60000mm |
|
切斷寬度 Cutting width |
Max.80mm |
選配組 OPTIONAL SET
FE-AF160C
FE-AF160F
