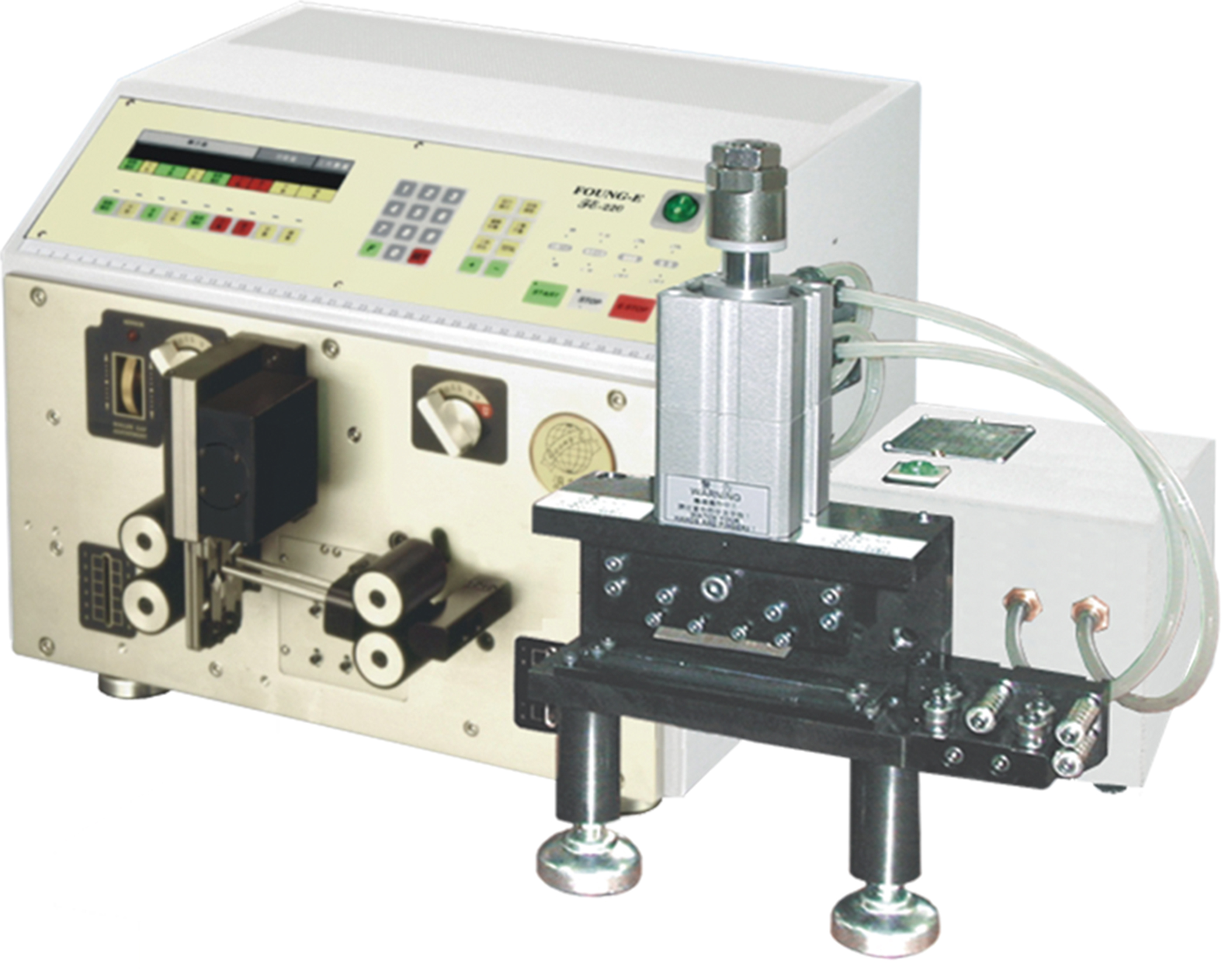

FE-220+FCS2 雙併線分線切線剝皮機 |
|
Flat Cable Cut , Split & Strip Machine (For 2 pins wire) |
特點說明
| 1. | 專用於雙併排線自動分線切線剝皮。 |
| 2. | AWG#18 ~ AWG#28，2 PIN 均採用卡式分線座。 |
| 3. | 特殊齒刀切剝，切口整齊。 |
| 4. | 分線刀採用組合式，換刀容易。 |
| 5. | 尺寸調整、分線長度，單頭或雙頭均由電腦操作控制。 |
| 6. | 分線長度可達150mm。 |
| 7. | 併線長度35mm以上均可由本機操作。 |
FEATURES
| 1. | Specially apply to 2 pins flat cable cut, split, and strip with computer control type. |
| 2. | Apply to AWG#18 ~ AWG#28, 2 pin with CASSETTE applicator. |
| 3. | Special teeth blades design to ensure cut and strip shape. |
| 4. | Assembly type of split blade, easy exchanged. |
| 5. | Computer key in to simplify wire split length (Both sides or single side.) |
| 6. | Maximum split length is 150mm. |
| 7. | Minimum wire cutting length is 35mm. |

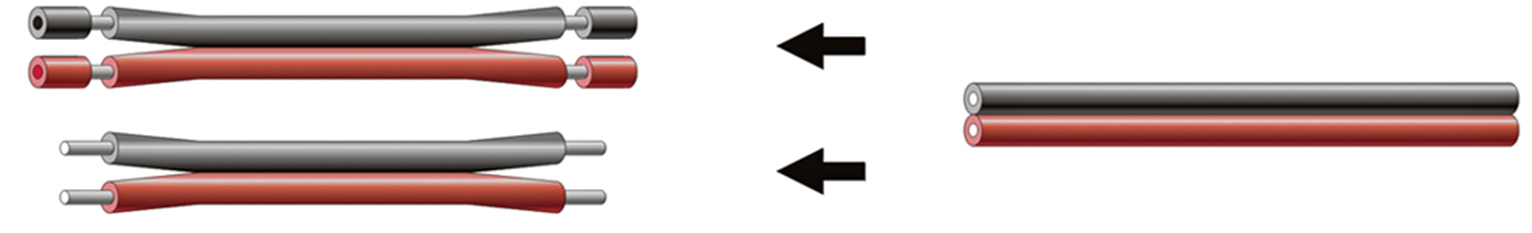

裁線範例 SAMPLE
規格 SPECIFICATIONS
|
機型 Model |
FE-220+FCS2 |
|
外觀尺寸 Dimension |
700x250x410mm |
|
重量 Weight |
52 Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
切線長度 MiN.Length |
MIN.35 mm PVC insulation(被覆) |
|
排線數 Conductor |
2 Pin |
選配組 OPTIONAL SET
FE-AF160C
