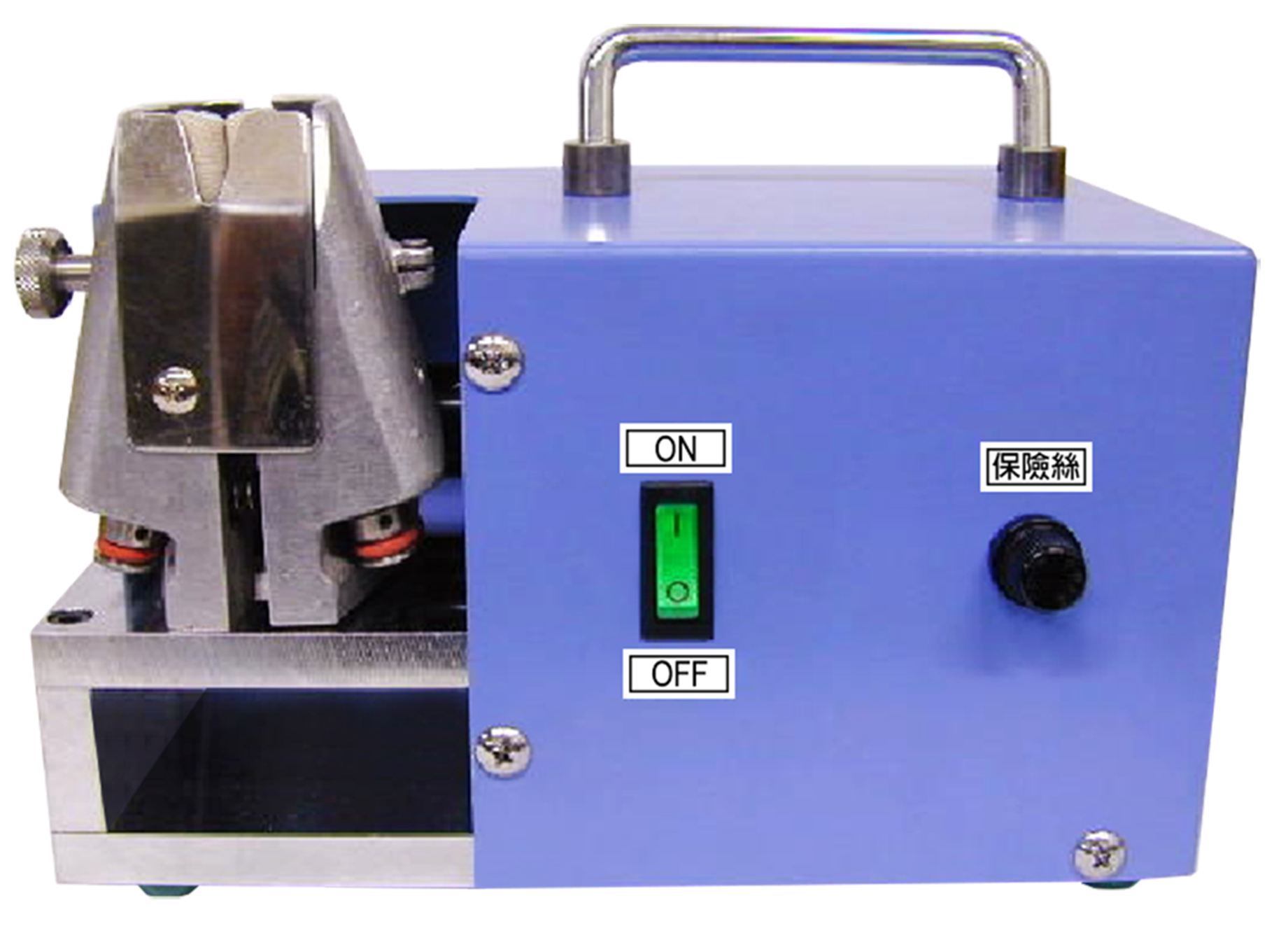

FE-SN100 玻璃纖維脫漆機 |
|
Wire Polisher |
特點說明
| 1. | 本機採用固定式 。 PE、PVF、APB…各種極細耐高溫漆包線絕緣膜脫離用。 |
| 2. | 採用玻璃纖維輪刷，間距可調式。可同時做多股線的脫漆功能。 |
| 3. | 在應用範圍內0.5㎜ 以下極細線最適用。 |
FEATURES
| 1. | Fixed type. Insulation stripping of enamel, PE. PVF. APB.. wire, etc. |
| 2. | Stripping by Glass Brush Roll, distance can be adjusted. Capable of stripping multiple wires at one time. |
| 3. | Applicable for wide range from Fineness wire. ( under 0.5mm ) |
規格 SPECIFICATIONS
|
機型 Model |
FE-SN100 |
|
外觀尺寸 Dimension |
250x180x190mm |
|
重量 Weight |
12Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
適用線徑 Applicable size |
Ø0.1~Ø0.5mm |
