FE-NTSR-N1(N2) 數位式電線繞線機 |
|
Cable Winding Machine |

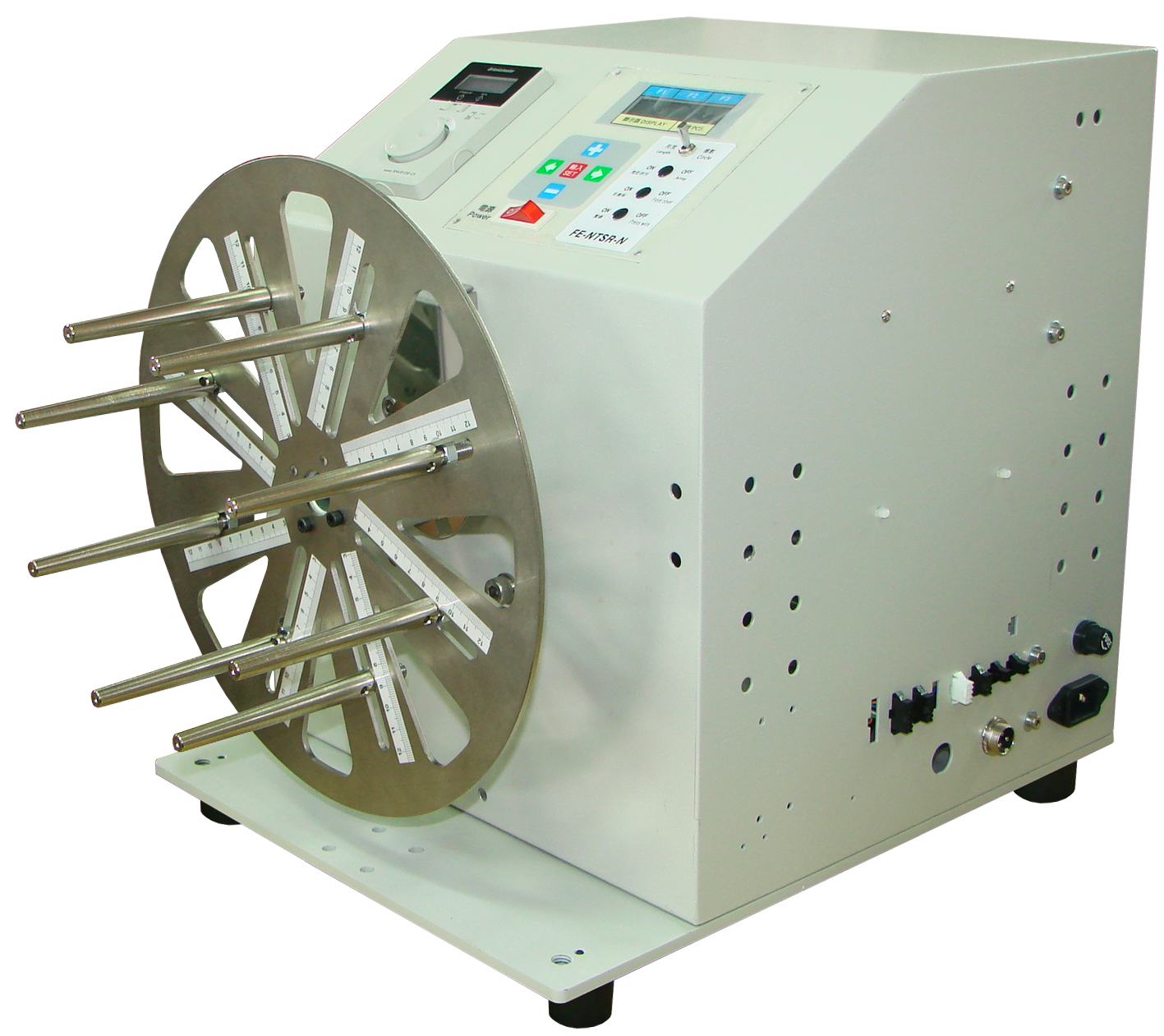

FE-NTSR-N1
(選配 Optional )
FE-NTSR-N2
特點說明
| 1. | 本機採用無刷馬達。 |
| 2. | 啟動有緩 (1)正常速度 - 停 (2) 緩 - 快 - 停 (3) 緩 - 快 - 緩 - 停 三段式旋轉選擇，視線長度操作，速度可調，提高產能。 |
| 3. | 圈數可設定，腳踏式操作，啟動踩後放開，再踩停機，安全性高，減少工作危險性。 |
| 4. | 作業員操作可選擇正/反轉方式。 |
| 5. | 出力穩定，活動式架線桿可繞 8 字型及圓型。 |

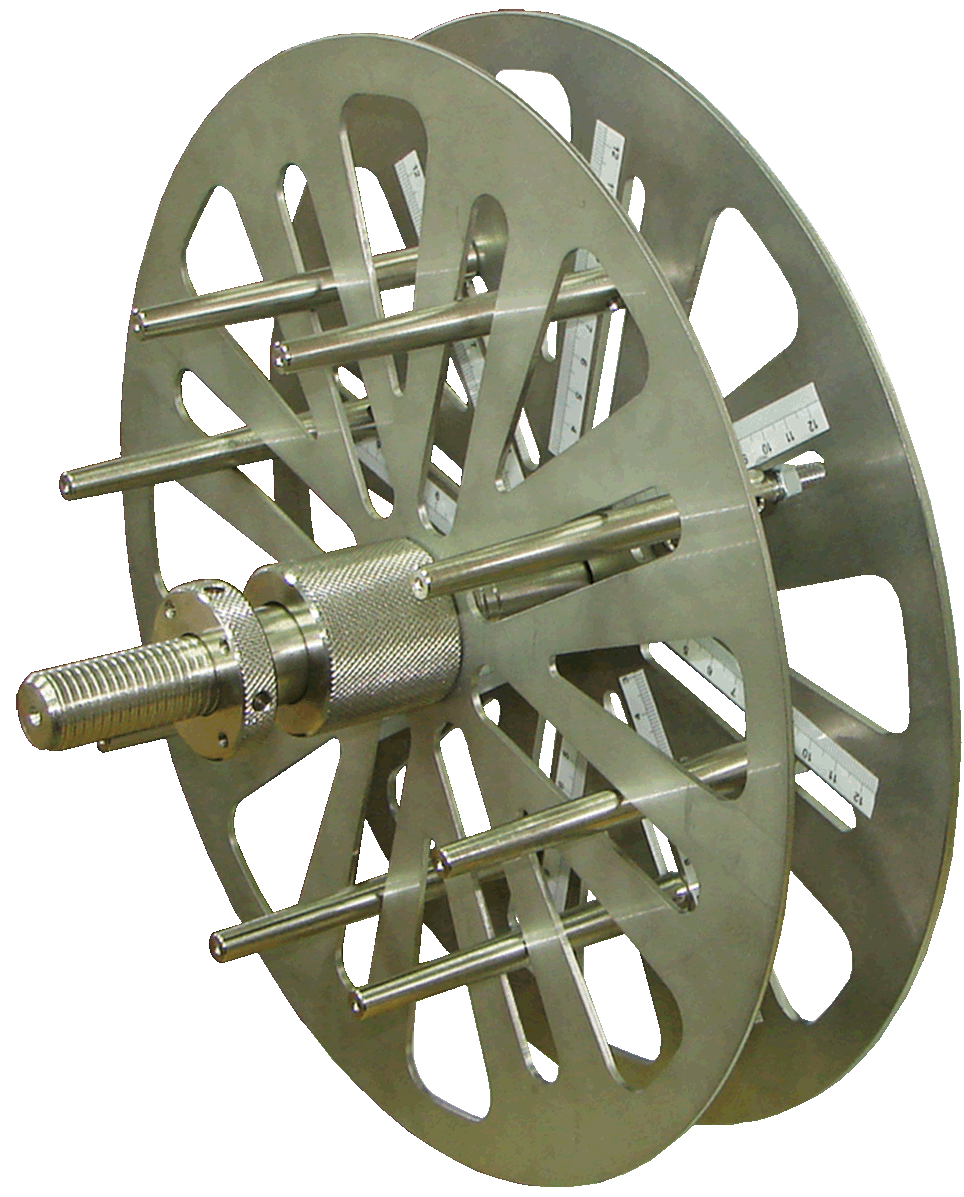

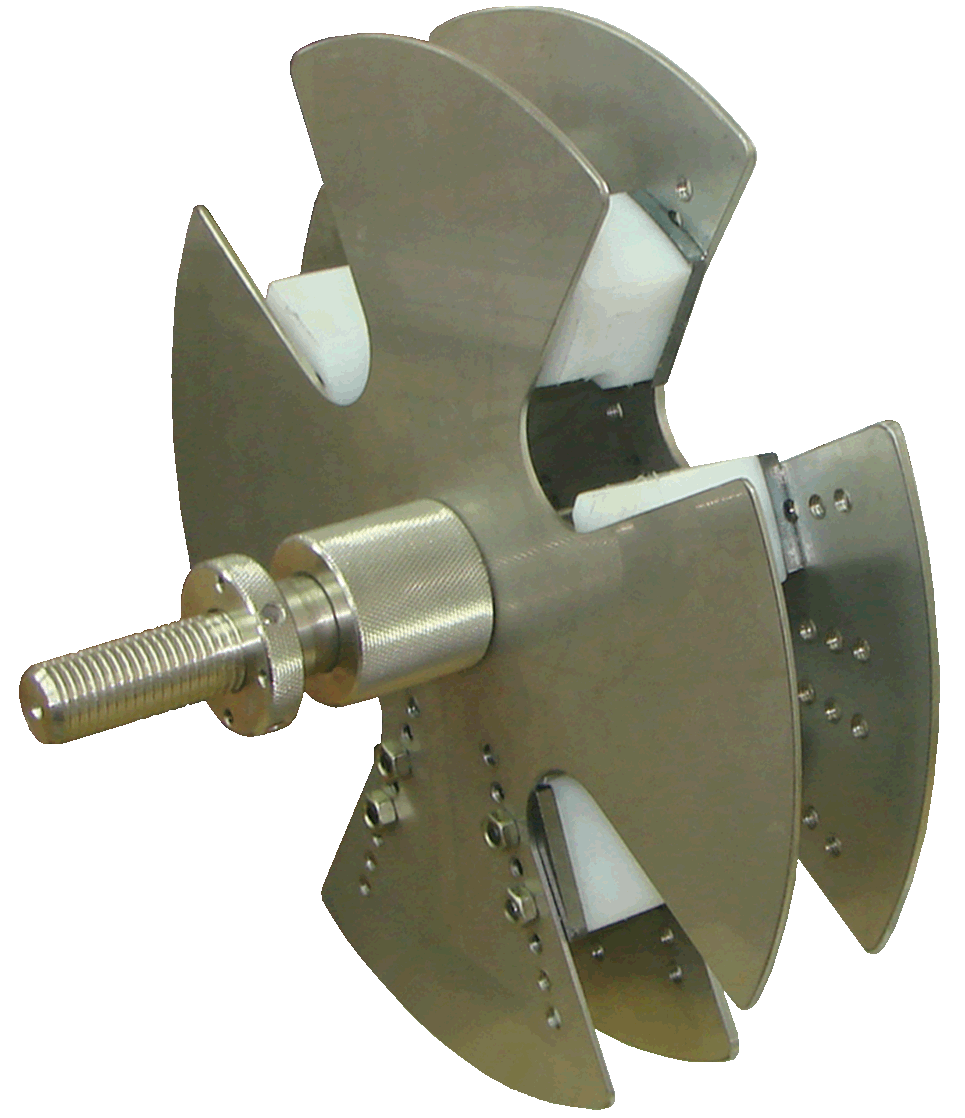

| 6. | 架線盤視需要選配，N1：內徑軸固定型及N2：快速螺帽型。 |
FEATURES
| 1. | Adapted with brushless motor. |
| 2. | Start by (1) Normal speed than stop (2) Slow - Fast - Stop (3) Slow - Fast - Slow - Stop, three stage rotation options, operate base on wire length, adjust speed, increases productivity. |
| 3. | Rotation times can be set, operate by foot switch. Start after release step, step again to stop the machine, safe and reduce dangerous during operation. |
| 4. | Operators can choose CW/CCW rotation. |
| 5. | Stable output, movable wire pole can winding “8” and “round” type. |
| 6. | Cable tray as optional depending on requirement, N1: Inner diameter shaft type and N2: Fast nut type. |
規格 SPECIFICATIONS
|
機型 Model |
FE-NTSR-N1(N2) |
|
外觀尺寸 Dimension |
450x480x450mm |
|
重量 Weight |
24Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
架線盤 Cable tray |
30 cm DIA(亦可選配/Optional available) |
