FE-NTSR-N 排線式繞線機 |
|
Cable Arrangement Winding Machine |
(選配 Optional )
特點說明
| 1. | 本機採用無刷馬達及步進馬達驅動, 氣壓輔助固定壓線。 |
| 2. | 操作啟動有： (1)正常速度-停 (2)緩-快-停 (3)緩-快-緩-停 三種旋轉選擇，視線長度旋轉速度可調，提高產能。 |
| 3. | 圈數可設定，採腳踏式作業，啟動後腳放開，再踩即停，安全性高減少危險性。 |
| 4. | 作業員操作可視習慣性可選擇 正/反 轉方式。 |
| 5. | 出力穩定，繞線方式可選配8字型, 圓型或內徑可用塑鋼固定圓型。 |
| 6. | 固定式前蓋採快速進出，繞好後綁上魔帶, 取出成品完成操作。 |
FEATURES
| 1. | Adapted with brushless motor, driving by step motor, press cable aid by air pressure. |
| 2. | Start by: (1) Normal-stop (2)Slow-fast-stop (3)Slow-fast-slow-stop three stage rotation options, depend on cable length, rotation speed can adjust, increase productivity. |
| 3. | Rotation times can be set, operated by foot switch, start after release step, step again then stop machine, safe and reduce dangerous during operation. |
| 4. | Operator can based on his habit to choice CW or CCW rotation. |
| 5. | Stable output, movable wire pole can winding “8”, “round” type by steel material or plastic steel material at round arrangement at fixed inner type. |
| 6. | Fixed front cover can operate fast, after winding the wires, tie the magic ties or strap to take out the finished wires. |
規格 SPECIFICATIONS
|
機型 Model |
FE-NTSR-N |
|
外觀尺寸 Dimension |
580x480x400mm |
|
重量 Weight |
33Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|

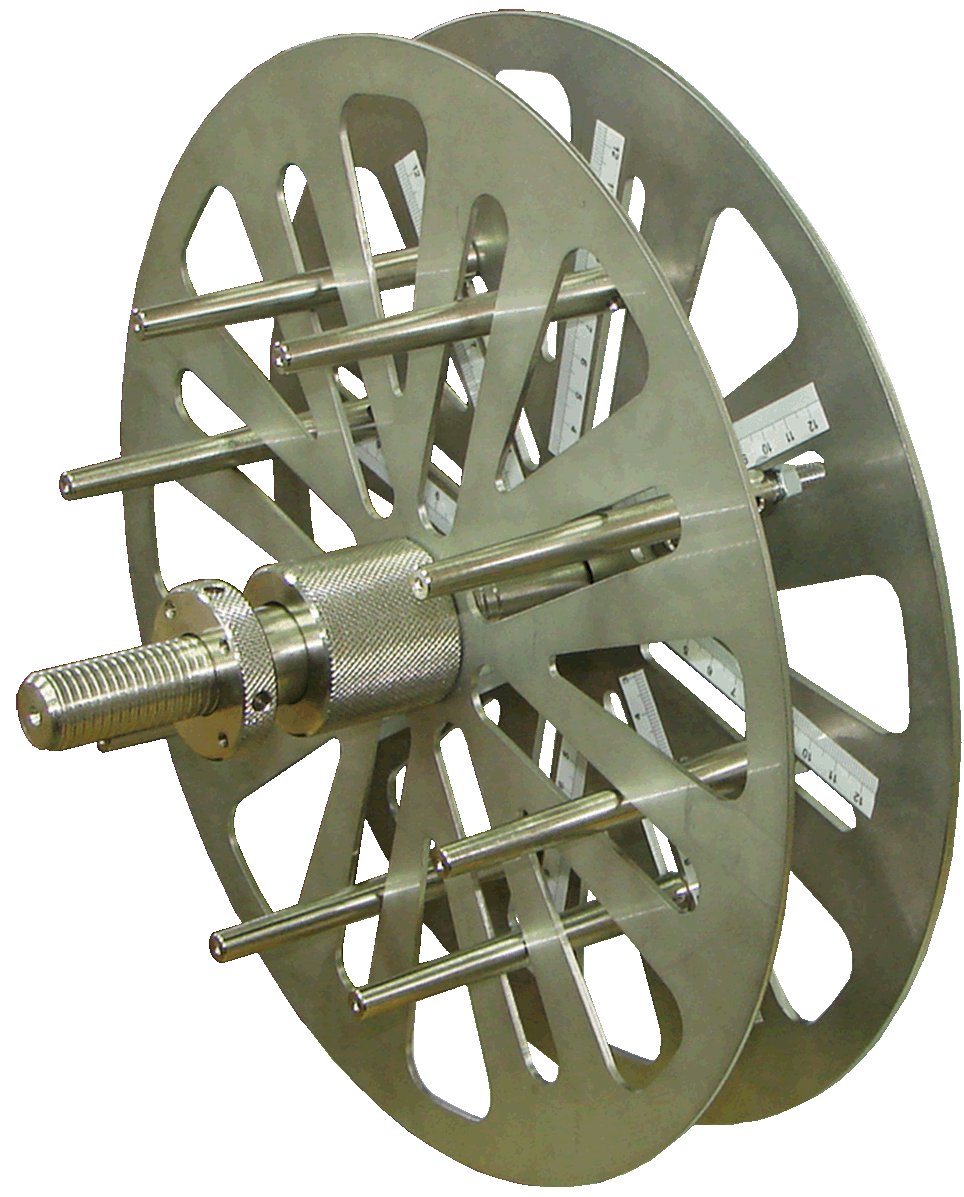

架線盤 Cable tray |
30 cm DIA(亦可選配/Optional available) |
|
作業速度 Winding speed |
可調式(Adjustable) |
|
氣壓 Air preesupply |
6~8Kgs需使用乾燥空氣 (It's necessary to use dry air.) |
