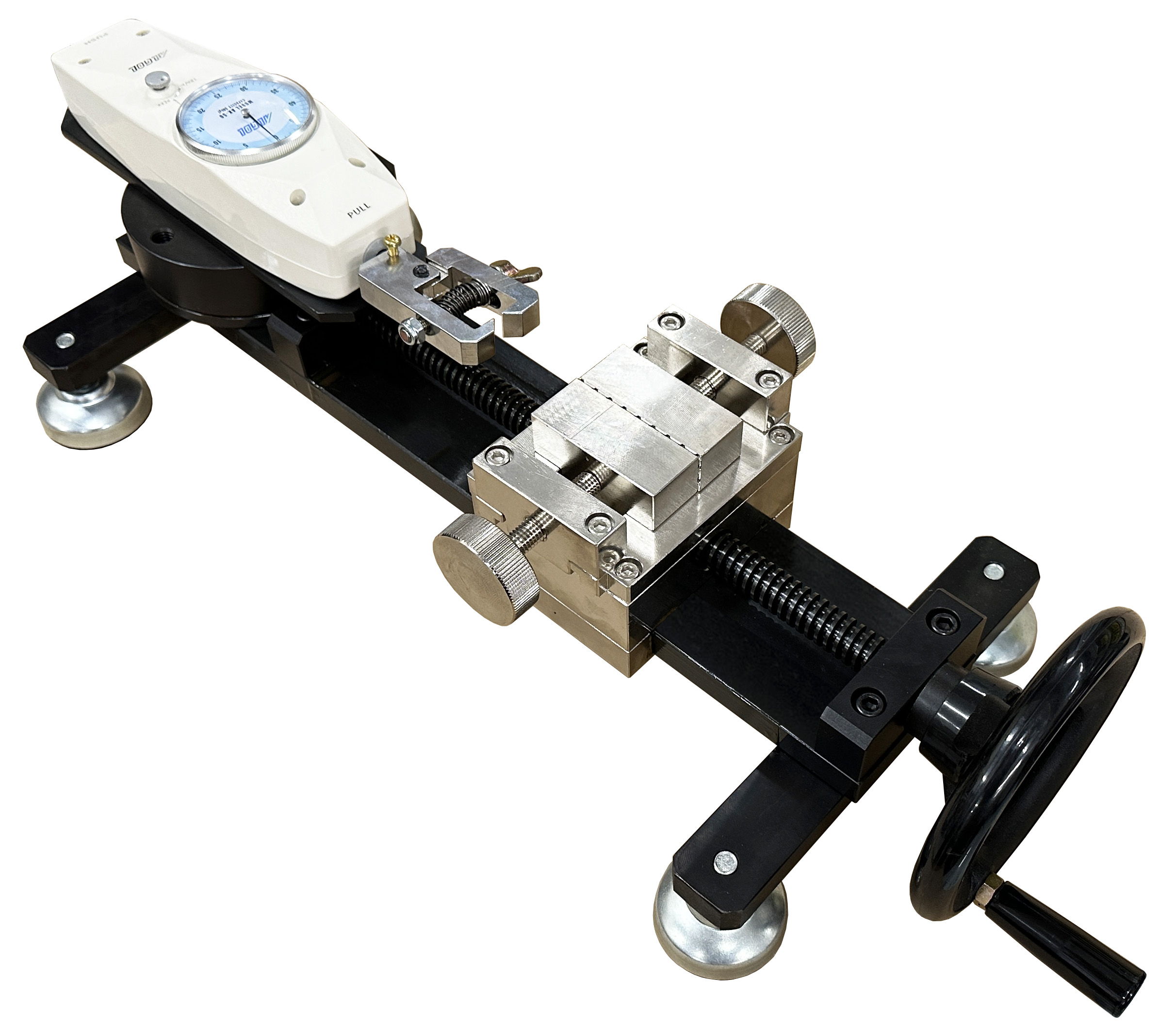

FE-HT30 手搖式推拉計 |
|
Manual Push-Pull Counter |
特點說明
| 1. | 本 機採螺桿手搖推拉動作。體積小，操作容易，不佔空間，適合生產及檢驗室用。 |
| 2. | 夾線部分為左右可調式，使線能成一直線，提高測試準確度。 |
| 3. | 推拉力表為日本原裝進口，故障率低，3~50Kg可任意選擇。 |
FEATURES
| 1. | Manual push-pull with ball bearing action. Compact size, easy operation, suitable for assembling and inspection room. |
| 2. | Clamp wire can left/right adjust in line, increase testing precision. |
| 3. | Meter is made in Japan, high reliability, option for 3~50kgs. |
規格 SPECIFICATIONS
|
機型 Model |
FE-HT30 |
|
外觀尺寸 Dimension |
640x240x160mm |
|
重量 Weight |
2.5Kgs |
|
衝程 Stroke |
110mm |
|
推拉壓力 Push-Pull power |
3~50Kgs |
