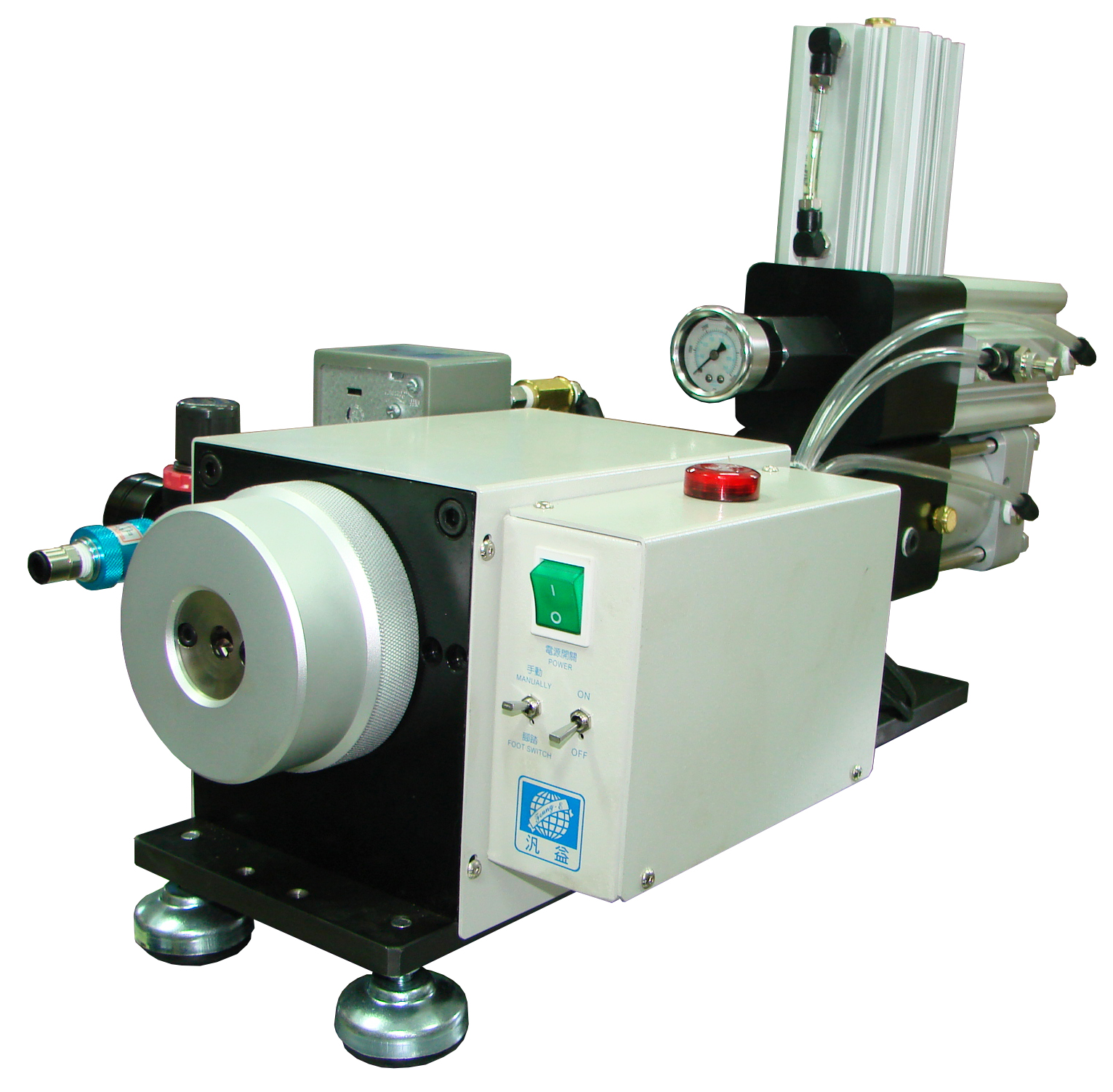

FE-CR1M-AO 空壓增壓圓管四爪鉚合機 |
|
Loose Tube Shape Terminal Crimping Machine |
選配 OPTIONAL
特點說明
| 1. | 本機為單粒圓管端子與電線四面鉚合專用機。 |
| 2. | 適用於ODØ3.5 ~ 10 單粒圓管用。 |

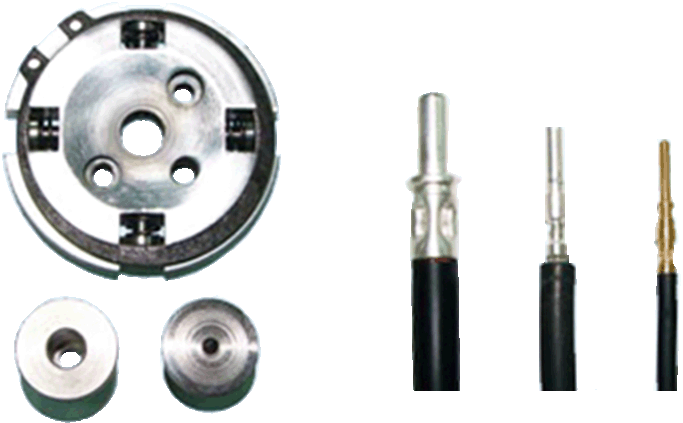

| 3. | 壓著點視OD大小更換導孔座為專用壓著四爪模，即可使用。 |
| 4. | 壓著鬆緊為可調式，四爪鉚合均勻，品質穩定、拉力足，適用高頻用線，可防止溫升。 |
| 5. | 採空壓轉油壓控制，視材質調整5 〜 8 kg/cm2 壓力，操作容易。 |
FEATURES
| 1. | Machine design for crimping loose shape terminal four-side and easy to operate. |
| 2. | Terminal range si from OD Ø3.5 to Ø10. |
| 3. | Change guiding hole base according terminal OD. |
| 4. | Adjustable crimping pressure, stable quality and full pull force. Suitable for high frequency write and prevent temperature raised. |
| 5. | Controlled by air and oil pressure, adjust pressure 5 ~ 8 kg/ cm² which depends on the material, and easy to operate. |
規格 SPECIFICATIONS
|
機型 Model |
FE-CRIM-AO |
|||
|
外觀尺寸 Dimension |
820x310x400mm | |||
|
重量 Weight |
40 Kgs | |||
|
電源 Power supply |
AC110V/220V-50/60Hz | |||
|
氣壓 Air pressure |
5~8Kgs | |||
|
鉚壓鬆緊 Crimp elasticity |
可調式Adjustable | |||
|
導孔 Guiding hole |
可換式Changeable | |||
|
使用範圍 Range |
within Ø3.5mm~10mm圓管端子 Loose tube shape terminal |
|||
|
操作壓力 Operation pressure |
5 (71Psi) |
6 (85Psi) |
7 (100Psi) |
8 (115Psi) |
|
理論出力Theoretical output |
2000KG |
2500KG |
3000KG |
3500KG |
*實際出力約為理論出力之85%
Output force exerted approx.85%of theoretical output.
