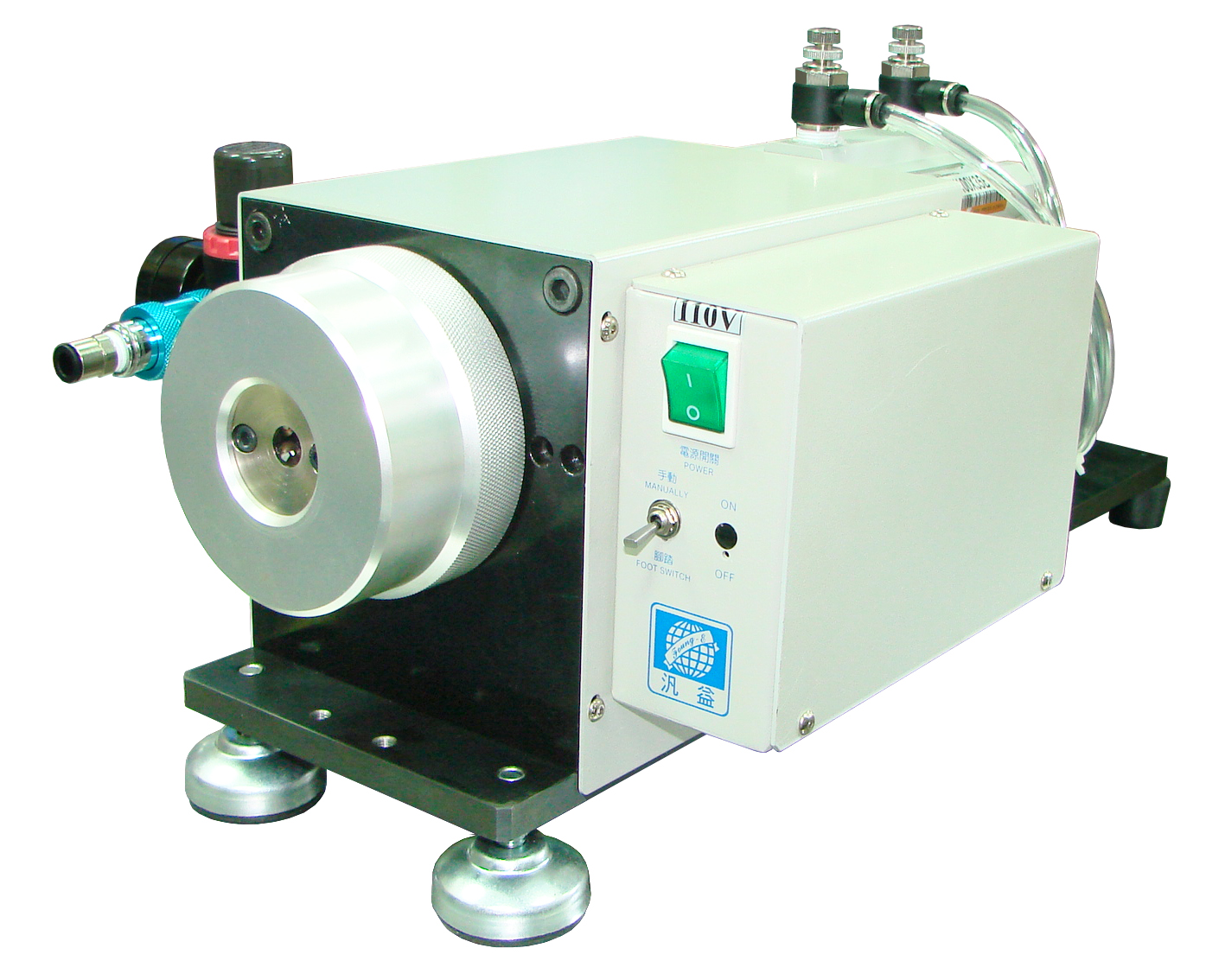

FE-CR1M-A 氣動單粒圓管端子四面鉚合機 |
|
Air Loose Tube Shape Terminal Crimping Machine |
特點說明
| 1. | 本機為單粒圓管端子與電線四面鉚合專用機。 |

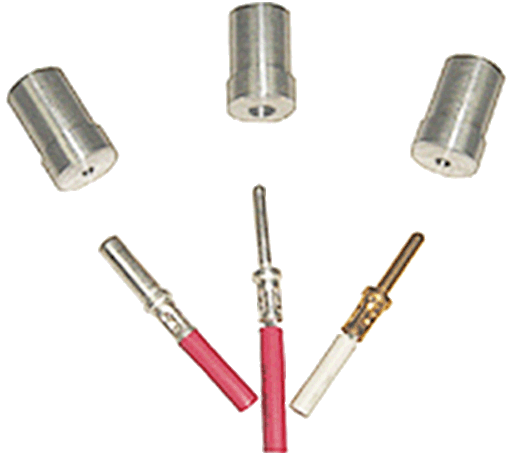

| 2. | 可視圓管端子OD大小，Ø3.5以下圓管端子，只需更換導端子孔即可。 |
| 3. | 鉚壓鬆緊為可調式，四面鉚合，品質穩定。 |
| 4. | 採氣電式控制，氣壓5 〜 7 kgs，安全操作容易。 |
FEATURES
| 1. | This machine specially apply to crimping loose tube shape terminal four-side. |
| 2. | Easy to change terminal guiding hole according to terminal outer diameter. |
| 3. | Easy to adjust crimping depth stable quality. |
| 4. | Controlled by air and electricity, air pressure 5~7 kgs, easy to operate and safe. |
規格 SPECIFICATIONS
|
機型 Model |
FE-CRIM-A |
|
外觀尺寸 Dimension |
300x475x280mm |
|
重量 Weight |
24 Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
氣壓 Air pressure |
5~7Kgs |
|
鉚壓鬆緊 Crimp elasticity |
可調式Adjustable |
|
導孔 Guiding hole |
可換式Changeable |
|
使用範圍 Range |
within Ø3.5mm以下圓管端子 Loose tube shape terminal |
