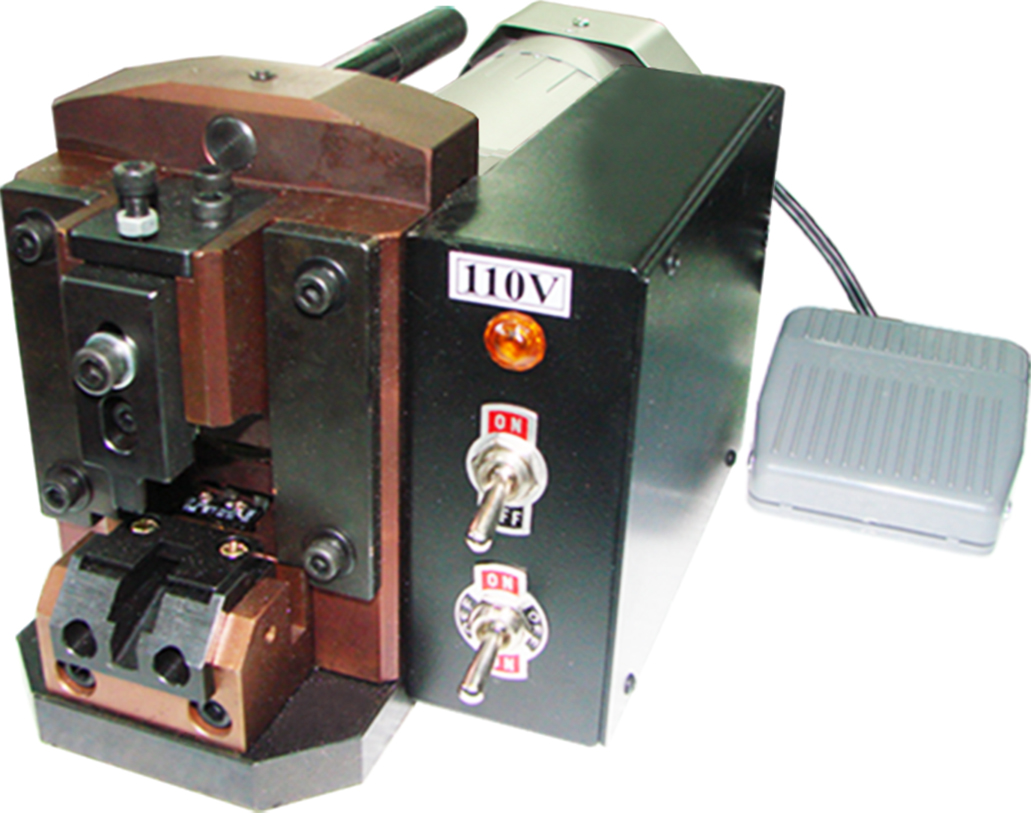

FE-8501L PC頭打頭機(小金剛) |
|
Modular Plug Auto-Termination Machine |
特點說明
| 1. | 能夠像電子裝配一樣加工，可壓普通PC頭、英國頭、網路PC接頭。 |
| 2. | 完全無噪音操作。 |
| 3. | 操作中極少發生誤差，準確度高。 |
| 4. | 佔極少空間，可輕易再安裝。 |
| 5. | 換模具只需三分鐘。 |
FEATURES
| 1. | Capable of pressing general PC heads and British style PC heads, as well as electronic assembling. |
| 2. | Entirely noiseless operation. |
| 3. | Minimum loss during operation. |
| 4. | Taking a small space, easily relocate. |
| 5. | It takes merely three minutes to replace the moulds. |

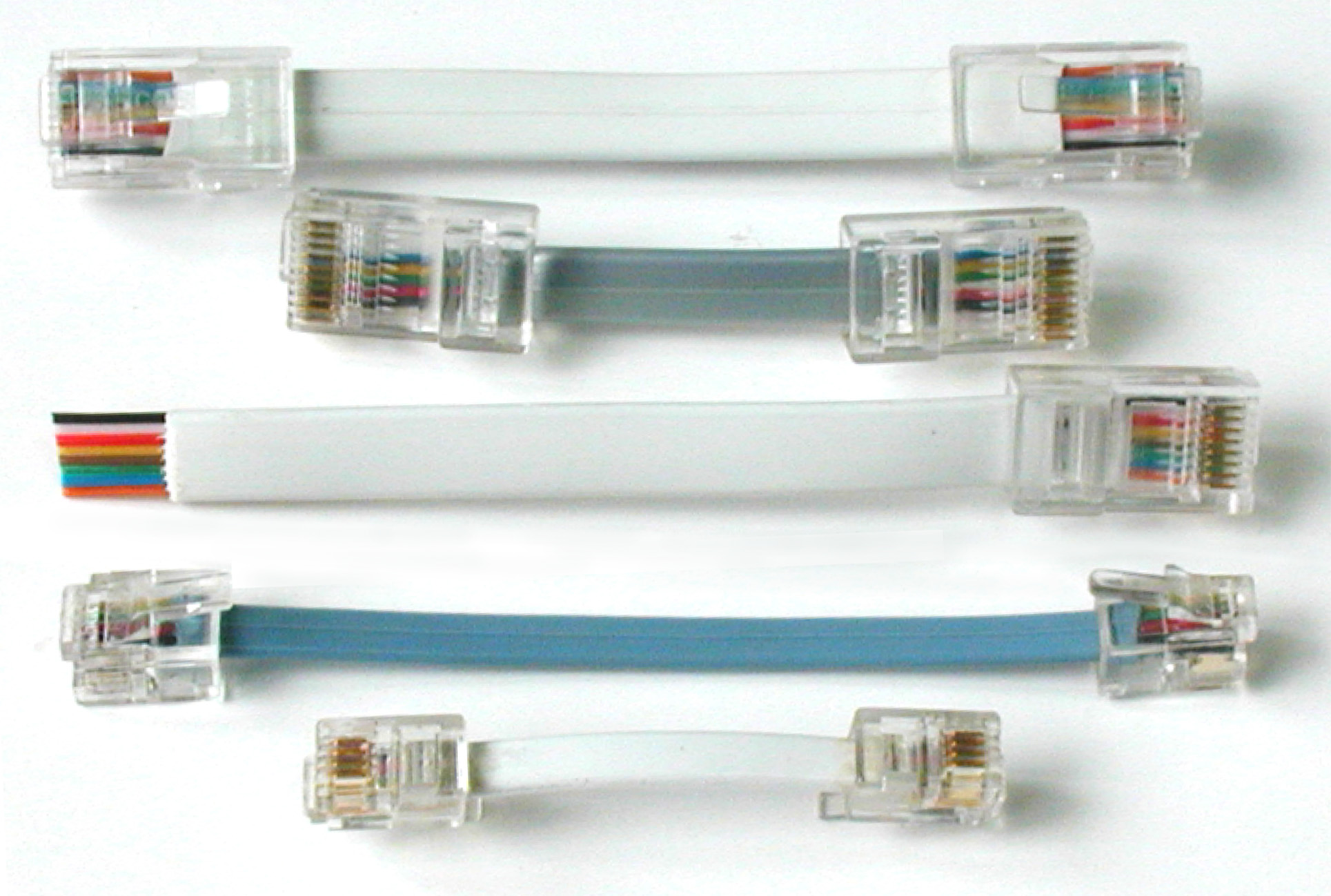

樣本 SAMPLES
規格 SPECIFICATIONS
|
機型 Model |
FE-8501L |
|
外觀尺寸 Dimension |
365x160x150mm |
|
重量 Weight |
13 Kgs |
|
電源 Power supply |
AC100V/220V-50/60Hz |
選配組 OPTIONAL SET
|

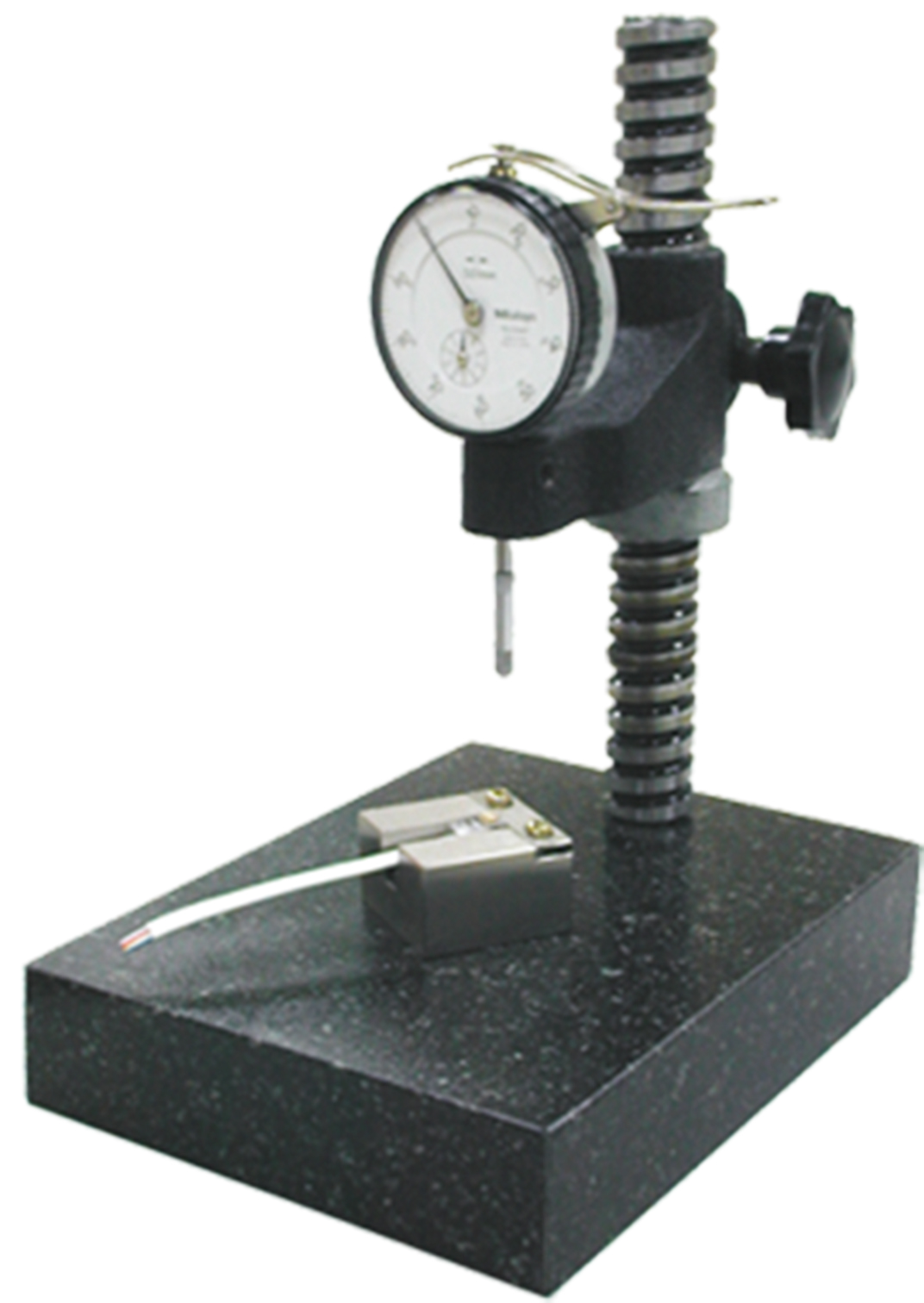

FE-8502 金片深度測試儀 |
|
Modular Plug Terminal Depth Gauge |
特點說明
| 1. | 可精確測試，各式PLUG金片深度。 |
| 2. | 精密度達0.01mm。 |
| 3. | 操作迅速簡便。 |
FEATURES
| 1. | Can test and measure all kinds of modular plug terminal depth. |
| 2. | Precision reach to 0.01mm. |
| 3. | Simple and quick operation. |
