FE-8080A 電腦線測試機 |
|
Continuity Tester And Wiring Assembly Aid |

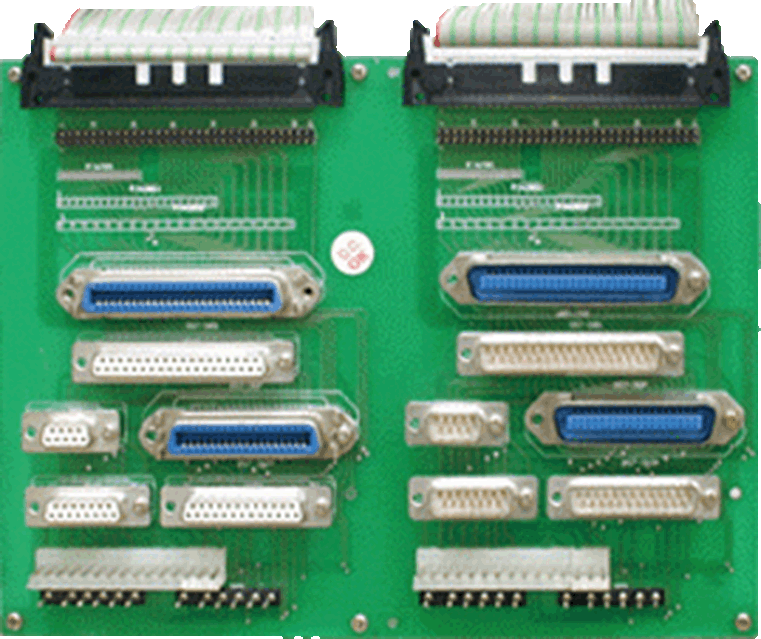

標準治具(接主機)
Standard JIG (Connect to machine)
外接測試治具(視產品設計)
External testing JIG
(Depend on product to design)
特點說明
| 1. | 測試準確、操作容易、低價位元、測試速度快(約0.2秒/128點)。 |
| 2. | 可偵測短路、斷路、相反線(錯位)、導通性、絕緣性、瞬間短 / 斷路。 |
| 3. | 開機時除了全機自我偵測之外，另包含治具、短路、絕緣測試。 |
| 4. | 測試程式可從待測物自動學習，無須專業人士操作。 |
| 5. | 測試完成時，螢幕自動顯示良品或故障原因及腳位元。 |
| 6. | 良品與不良品獨立不同音調，以利操作人員判別可避免混淆。 |
| 7. | 測試程式可經由記憶體保留，無斷電之處，免開機可保留七天以上。 |
| 8. | 找點探作功能能輕鬆執行找點及治具短 / 斷路偵測。 |
| 9. | 有多功能的軟硬體設計可測試單頭、雙頭迴路、多頭迴路及複雜型迴路產品。 |
FEATURES
| 1. | Precise, easy for operation, low price, and fast speed (0.2sec/128tps). |
| 2. | Functions include OPEN/SHORT test, MIS-WIRE test, CONTINUITY test, ISOLATION test, INTERMITTENT OPEN/SHORT test. |
| 3. | All models provide SELF-TEST, also include FIXTURE (JIG) OPEN/SHORT test. |
| 4. | All systems support "Golden-Samples Nets Learning". The net data is not necessarily input by operator. |
| 5. | The LCD automatically shows PASS, ERROR or PIN data after each single test. |
| 6. | Each tester provides various frequencies of PASS/FAIL beep sound, easy for operators recognition and prevent from mis-conducting. |
| 7. | The included memory can maintain data for 7days , the users need not worry about data losing. |
| 8. | SEARCH PROBE - user can easily execute point - search function and fixture (jig) OPEN/SHORT inspection. |
| 9. | Powerful software/hardware design can test: Single-End Two-Ends Loop, Multi-Ends Loop, and Complicate Type Products. |
規格 SPECIFICATIONS
|
機型 Model |
FE-8080A |
|
外觀尺寸 Dimension |
400x350x145mm |
|
重量 Weight |
N.W.:7Kgs G.W.:10Kgs |
|
電源 Power supply |
AC100~240V-50/60Hz |
|
測試點數 Test points |
128,256,384,512 |
|
測試速度 Test speed |
40960P~P/sec |
|
絕緣電阻 Insulation R. |
500K,1M,2M,5M,7M,10M,20MΩ |
|
測試電流 Test current |
15mA (Max) |
|
測試電壓 Test voltage |
DC 15V |
|
治具介面 Fixture interface |
64 Pin Flat Cable |
|
多段測試功能 Step test function |
有，（最多99組） Yes,(MAX.99 step) |
|
單頭測試功能 Bare-End test function |
有，A端共64點 Yes, A Port 64 pin |
|
循序測試功能 Sequential test function |
有 Yes |
|
找點功能 Search function |
有 Yes |
|
瞬間斷路測測試功能 Intermittence test function |
有，最快速 Yes, Fastest |
|
何端斷路偵測功能 Open-side distinguishable |
有，斷路端點a或b出現小字 Yes, Show a or b lower case |
|
搖擺測試設定 Intermittence Lock function |
鎖定或不鎖定可設定 Lock/Unlock |
|
按鍵數量 No. of key |
16Key |
|
治具、短路、漏電測試 Fixture short test |
有，當開電源時，自動執行 Yes, Auto-test When power On |
|
錯誤訊息個數設定 Error message display setting |
全部顯示或可設1~8個 All Error, or 1~8 Set |
|
錯誤訊息顯示方式 Fault results |
自動顯示 Display Automatically |
|
測試週期延長設定 Delay time setting |
有，1~50段設定 Yes,1~50 Counter |
|
工作溫度 Operation temp |
10°~40°C |
