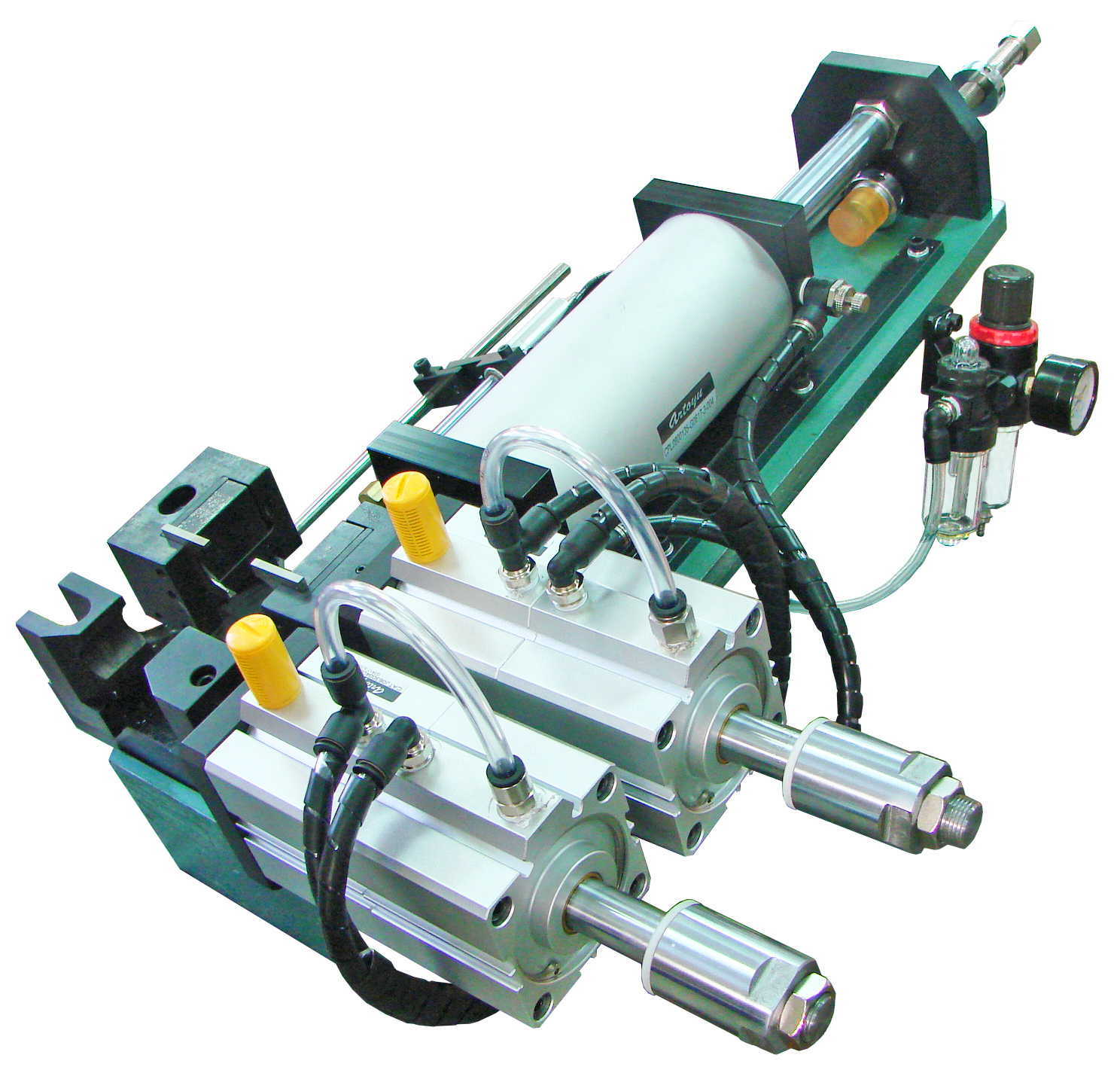

FE-5150 氣電式電線剝皮機 |
|
Electric & Air Wire Stripper |
特點說明
| 1. | 斜背式設計，合乎人體工學。氣電式控制輕巧靈敏，操作容易。 |
| 2. | 雙動式氣缸，無彈簧斷裂之虞，出力均衡，故障少。 |
| 3. | 刀夾座採用倍力氣缸夾，切力穩定。特殊無痕夾座設計，夾力加倍。 |
| 4. | 可調式結構，視線材粗細，更換剝刀迅速。 |
| 5. | 適用於重電用Ø30以內電纜線及多芯電源線。 |
FEATURES
| 1. | The hatchback design is good for ergonomic. Air electronic control is sensitive, and easy to operate. |
| 2. | Double-acting cylinder is without risks of spring broken. The power is balance with less failure. |
| 3. | Double strength clamp cylinder makes the cutting stable. Unique seamless clamp design will make the clamping force doubled. |
| 4. | Adjustable structure. Easy to change the stripping blade depends on the thickness of wires. |
| 5. | Suitable for cables within Ø30 and multi-core wires. |

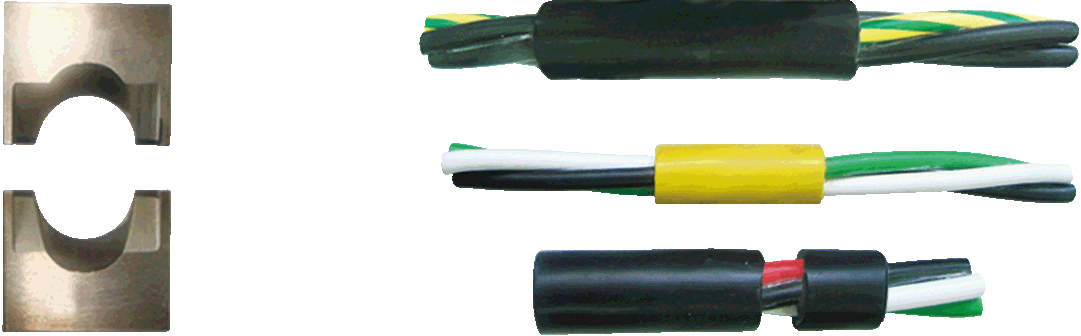

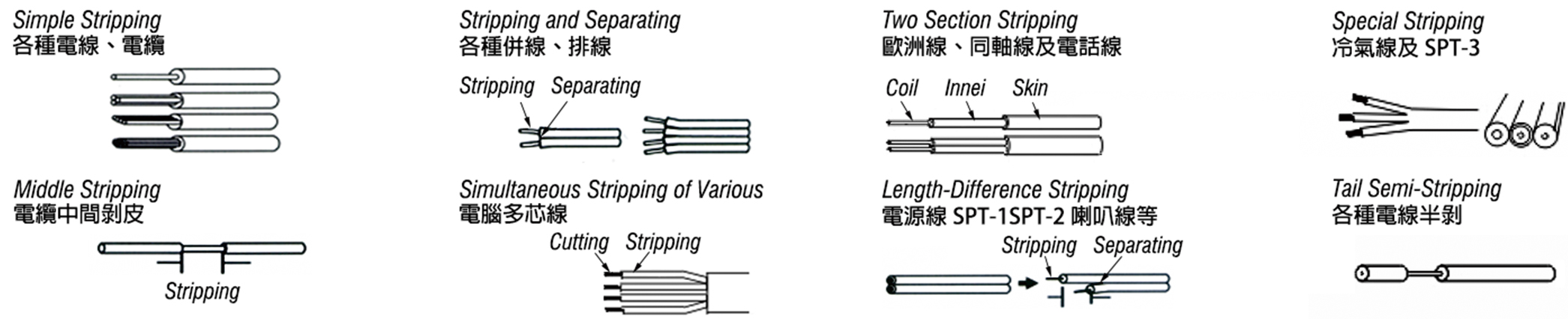

裁線範例 SAMPLES
＊以上各種剝皮範例均一次完成
規格 SPECIFICATIONS
|
機型 Model |
FE-5150L |
|
外觀尺寸 Dimension |
650x450x360mm |
|
重量 Weight |
42Kgs |
|
氣壓 Air pressure |
6~8Kgs |
|
衝程 Stroke |
150mm |
|
適用線徑Applicable size |
Max.Ø30mm |
