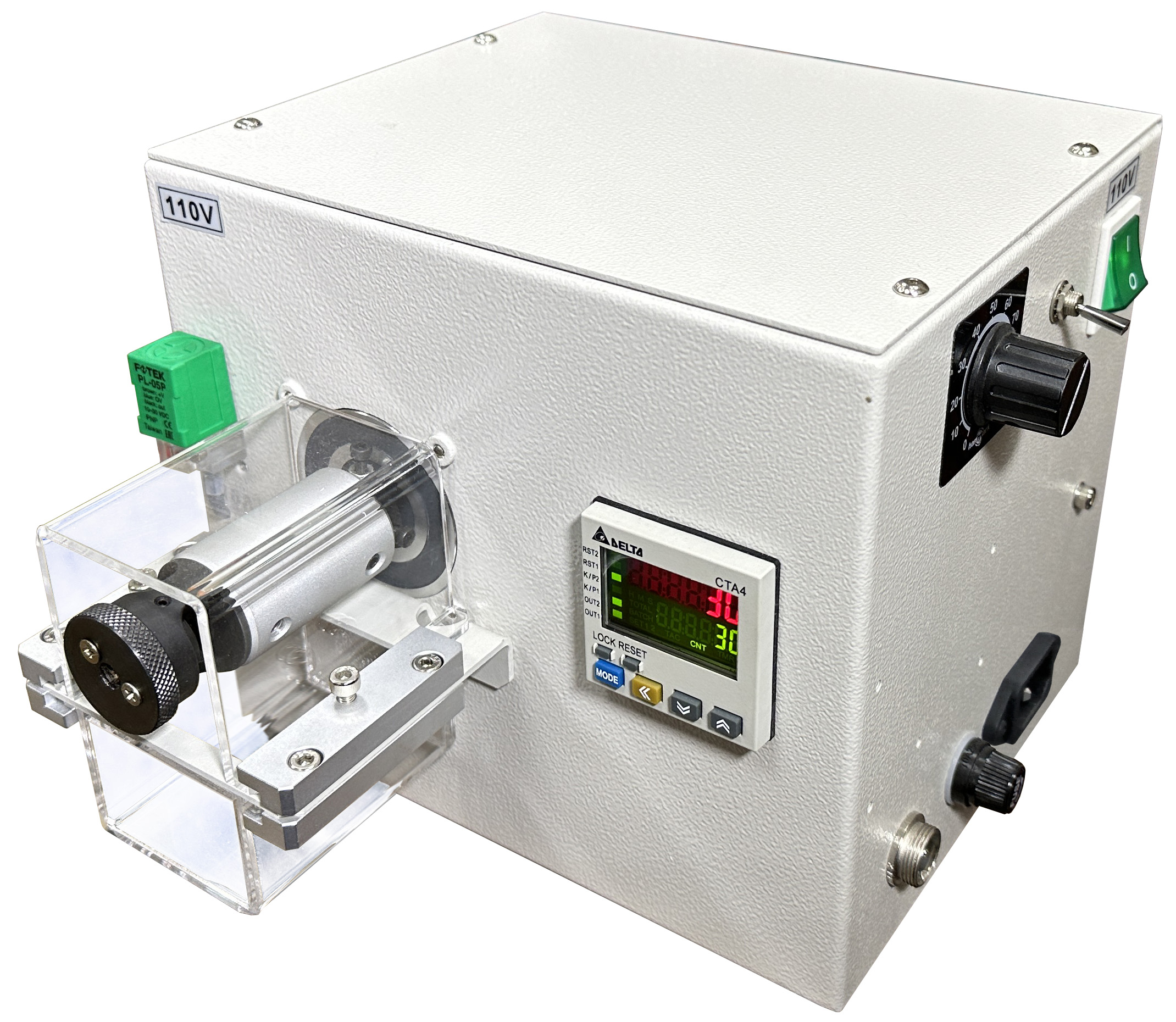

FE-500N 漆包線脫漆機 |
|
Wire Polisher |
特點說明
| 1. | PE. PVF. APB.各種耐高溫漆包線絕緣膜用剝離器。 |
| 2. | 線徑(刀口)調整迅速,切換規格容易。同一線徑量產最適用(單股、圓線)。 |
| 3. | 定置式剝離,效率高,品質穩定。 |
| 4. | 扭曲的線一樣脫得乾淨迅速,且不傷線。 |
FEATURES
| 1. | This machine is suitable for insulation stripping of PE, PVF, APB, etc. |
| 2. | The blades can be adjusted quickly according to the OD of the wire ; you can switch the specification of the blades easily. During the production, the OD of the wire must be the same ( this machine is suitable for single or round wire ). |
| 3. | The stripping device is fixed for a stable quality and better efficiency. |
| 4. | It can strip bended wires clean and fast without hurting the wire. |
規格 SPECIFICATIONS
|
機型 Model |
FE-500N |
|
外觀尺寸 Dimension |
230x260x200mm |
|
重量 Weight |
6Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
適用線徑 Applicable size |
Ø0.4~Ø5.0mm |
|
剝離長度 Strip length |
Within 50mm以內 (標準型號Standard) 50~100mm(訂製Special design) |
