FE-4F 直立雙刀式剝皮機 |
|
Vertical Double Blade Stripping Machine |
特點說明
| 1. | 只要輕輕一調，一次可剝單條或多條芯線，適用線徑AWG#18~AWG#32。 |
| 2. | 雙刀設計， 剝刀、切斷刀組合，可準確剝出所需剝皮長度，亦可單刀使用。 |
| 3. | 使用計時器控制，可準確的切斷及剝皮。視需要半剝或全剝。 |
| 4. | 吹氣裝置可清除剝皮後所遺留之線屑。 |
| 5. | 寬刀的組合和夾座到刀的短間距，利於剝電腦線之心線及隔離線，使剝線更方便更有效率。 |
| 6. | 刀的組合亦可採卡座式。 |
FEATURES
| 1. | With slight adjustment can apply to strip wire range from AWG#18~32, even single or multiple cores at once. |
| 2. | Double blades design 〝strip & cutting assembly 〞can accurately meet stripping need, even single blade will do accordingly. |
| 3. | Use timer control system to ensure accurately cut and properly strip. Can perform semi-strip or full-strip per your desire. |
| 4. | Air blow installation to eliminate defect which causing from stripped jacket. |
| 5. | Wider blade assembly and shorter blade interval to improve inner insulator stripping, more convenient and efficiency. |
| 6. | Blade assembly can option 〝CASSETTE 〞type. |

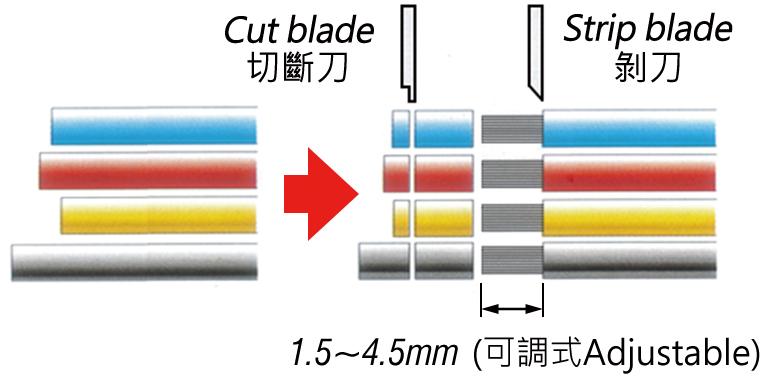

裁線範例 SAMPLES
規格 SPECIFICATIONS
|
機型 Model |
FE-4F |
|
外觀尺寸 Dimension |
200x280x320mm |
|
重量 Weight |
15Kgs |
|
電源 Power supply |
AC1101220V.50/60Hz |
|
氣壓 Air pressure |
5~7Kgs |
|
剝皮長度 Stripping length |
單刀One blade20mm, 雙刀Double blade Max.5mm |
