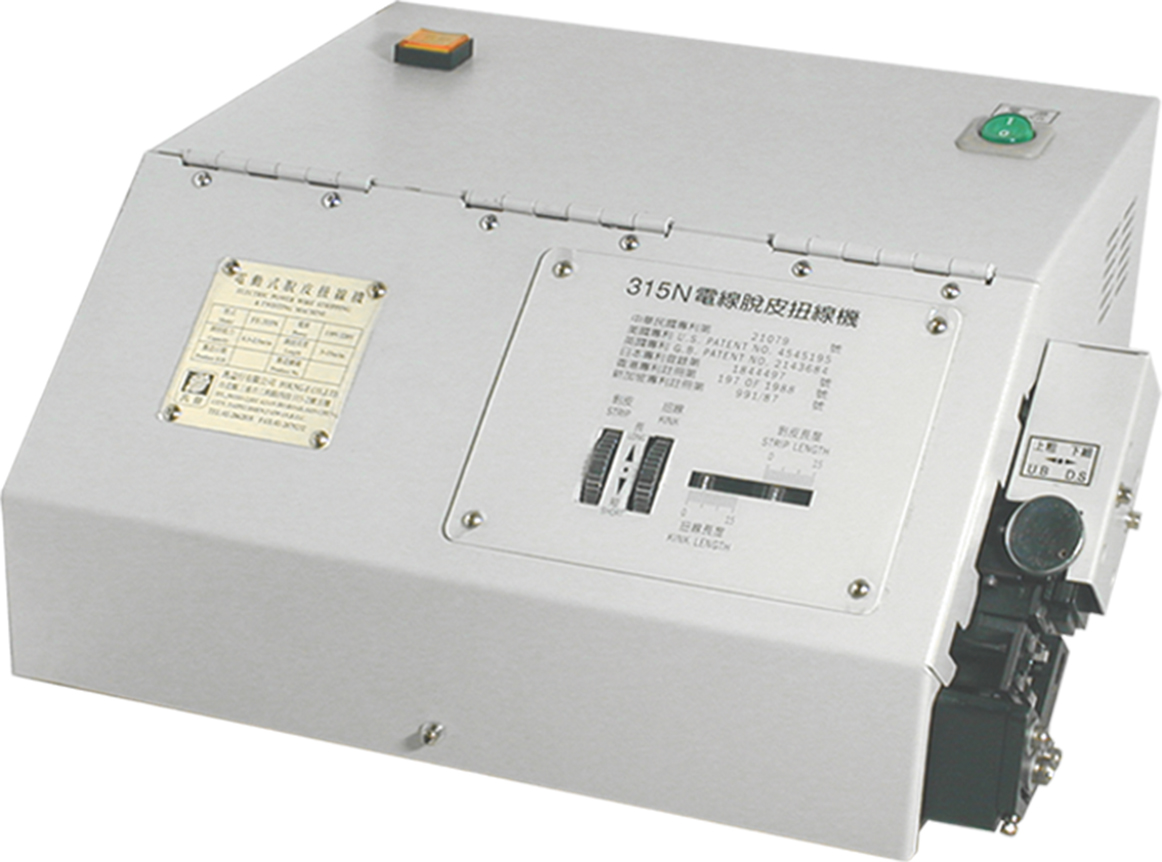

FE-315N 電動式電線剝皮扭線機 |
|
Electrical Power Wire Stripping Kinking Machine |
特點說明
| 1. | 專門用於細線(線徑0.2〜2.5mm)剝皮扭線。 |
| 2. | 隔離線之操作2〜3條一次完成。剝扭長度3〜15mm，一分鐘四十條。 |
| 3. | 機型小、耗電少。可單動或連動使用。刀距可微調42格數(每調一格0.03mm)。 |
| 4. | DC步進馬達，扭力穩定，故障率低，只需轉換即可適用於110V/220V。 |
FEATURES
| 1. | Specially suitable for kinking wire diameter from 0.2 to 2.5mm. |
| 2. | Stripping and kinking of 2 or 3 wires can be completed simultaneously. Stripping and kinking with a length from 3 to 15mm. 40 wires can be completed in one minute. |
| 3. | Small size; power saving. Step or auto mode available. Blades distance adjustable to 42 sizes (each size changes for 0.03mm). |
| 4. | DC motor design can stabilize the twist strength and eliminate machine shut down. Power : 110V or 220V. |
規格 SPECIFICATIONS
|
機型 Model |
FE-315N |
|
外觀尺寸 Dimension |
360x280x180mm |
|
重量 Weight |
14Kgs |
|
電源 Power supply |
AC110/220V-50/60Hz |
|
剝扭長度 Length kink strip |
3~15mm |
|
適用線徑 Applicable size |
0.2~2.5mm |
