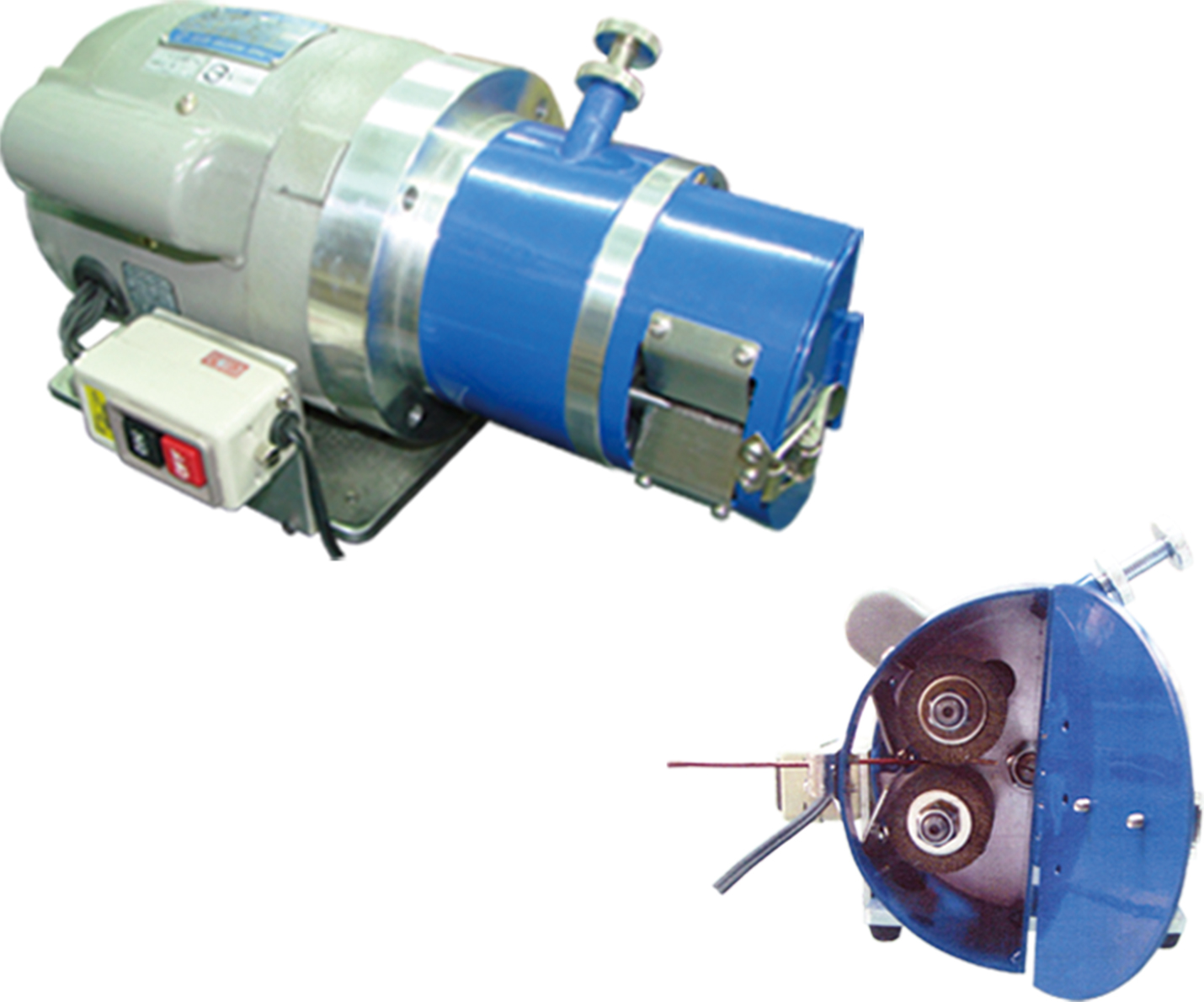

FE-200N 漆包線脫漆機 |
|
Wire Polisher |
特點說明
| 1. | 專用於ø 0.1以上 ~ ø 2.0 mm以內,瓷漆、聚脂絕緣被覆脫離用。 |
| 2. | 只要利用調整鈕,可微調間隙寬、窄,適用粗、細線。 |
| 3. | 可同時做1 ~ 10條的脫漆功能。 |
| 4. | 鋼絲輪有ø 0.1 mm、ø 0.2 mm,視不同規格線徑使用。 |
| 5. | 本機採定置式,可放於桌上使用效率高,品質穩定。 |
FEATURES
| 1. | Reserved for the use of Ø 0.1~2.0 mm of insulation stripping of enamel, polyester wire, etc. |
| 2. | While using adjusted button, it can fine tuning the gap width or narrow. It’s suitable for thick and fine wire. |
| 3. | The machine can strip for 1~10 pcs of wire at the same time. |
| 4. | There are two different size of brush roll steel Ø0.1 mm and Ø0.2 mm to using depend on different AWG# wire. |
| 5. | This machine is fixed type which can operate on the table to increase efficiency and make the quality steady. |
規格 SPECIFICATIONS
|
機型 Model |
FE-200N |
|
外觀尺寸 Dimension |
250x380x250mm |
|
重量 Weight |
18Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
適用線徑 Applicable size |
Ø0.1~ Ø2.0mm |
