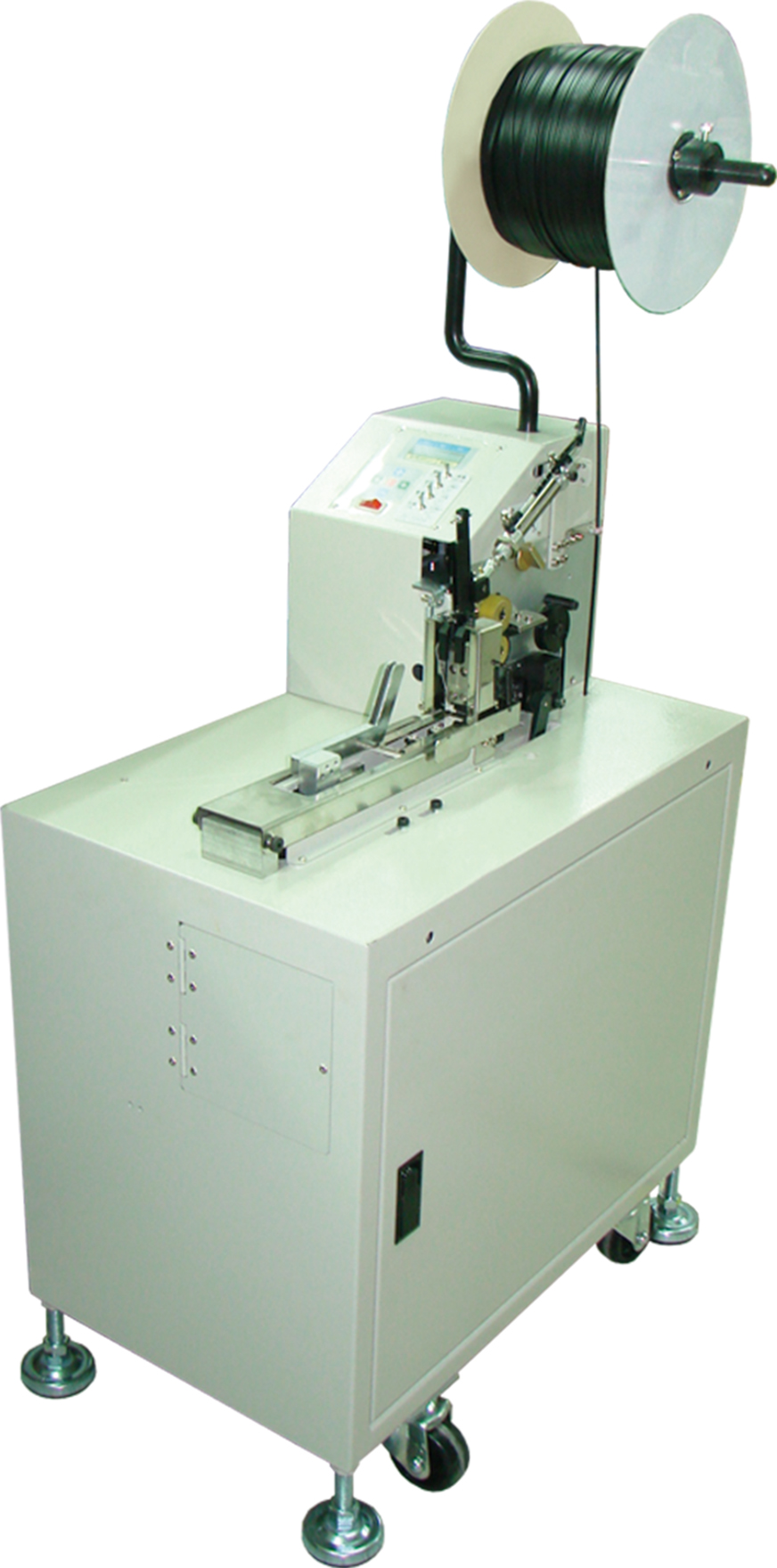

FE-1050N 自動魔帶綁線機 |
|
Automatic Tie Twisting Machine |
特點說明
| 1. | 本機採用步進馬達與氣壓缸作動結合，自動將魔帶定長切斷綁緊，取代傳統耗力手綁的流程。 |
| 2. | 適用於電源線、電腦線、線組及DC線等成品束線用。 |
| 3. | 可視要綁成品直徑，調整魔帶長度自動切斷扭緊，圈數可調，規格統一，直徑(OD)10~50mm可適用。 |
| 4. | 操作簡單，可選擇腳動與自動模式。 |
| 5. | 綁好後自動將成品推出集中，不需用手操作。 |
FEATURES
| 1. | Combined with stepping motor and cylinder. Cut the tie in specific length and tight firmly instead of manually. |
| 2. | Apply to power cord, computer wire, wire harness and DC wire for tying. |
| 3. | Depends on wire diameter to adjust tie length to cut and twist automatically. Circle numbers are adjustable and unify specification. Tying diameter is from 10 to 50mm. |
| 4. | Easy operation and available with step and auto. |
| 5. | After tying, gather the wires up automatically to instead of manually. |

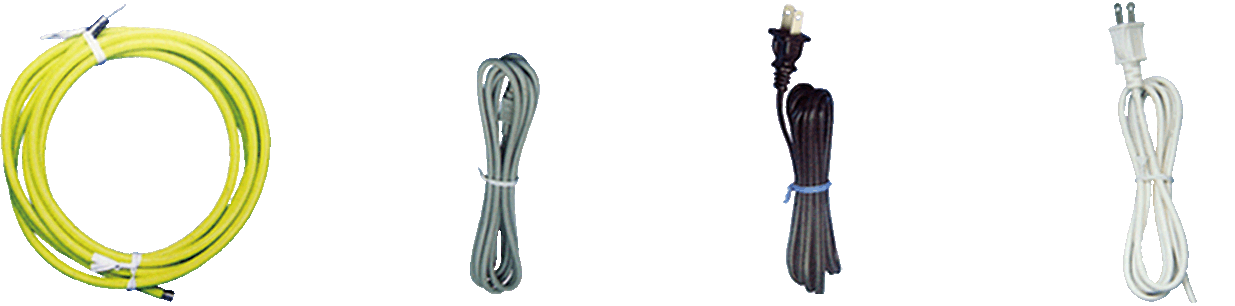

綁線樣品 SAMPLES
規格 SPECIFICATIONS
|
機型 Model |
FE-1050N |
|
外觀尺寸 Dimension |
410x570x1300mm |
|
重量 Weight |
115Kgs |
|
電源 Power supply |
AC110V/220V-50/60Hz |
|
氣壓Air preesupply |
5~7Kgs |
|
束線直徑 Tying diameter |
Ø10~ Ø50mm |
