FE-100A

FE-100A

端子沖壓剖面分析系統

Crimp Cross Section Analysis System

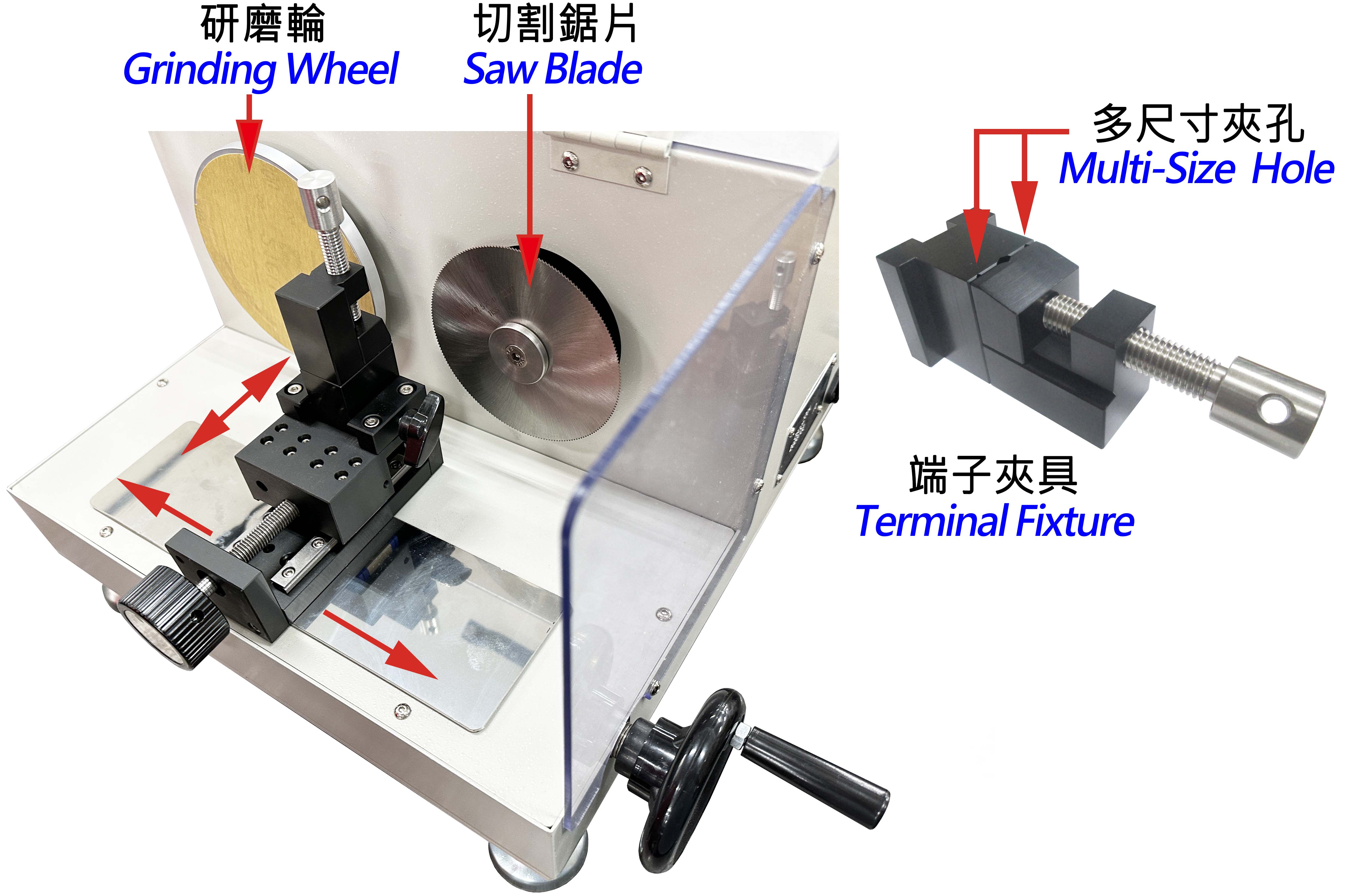

端子切割研磨機
Saw and Grinding Machine

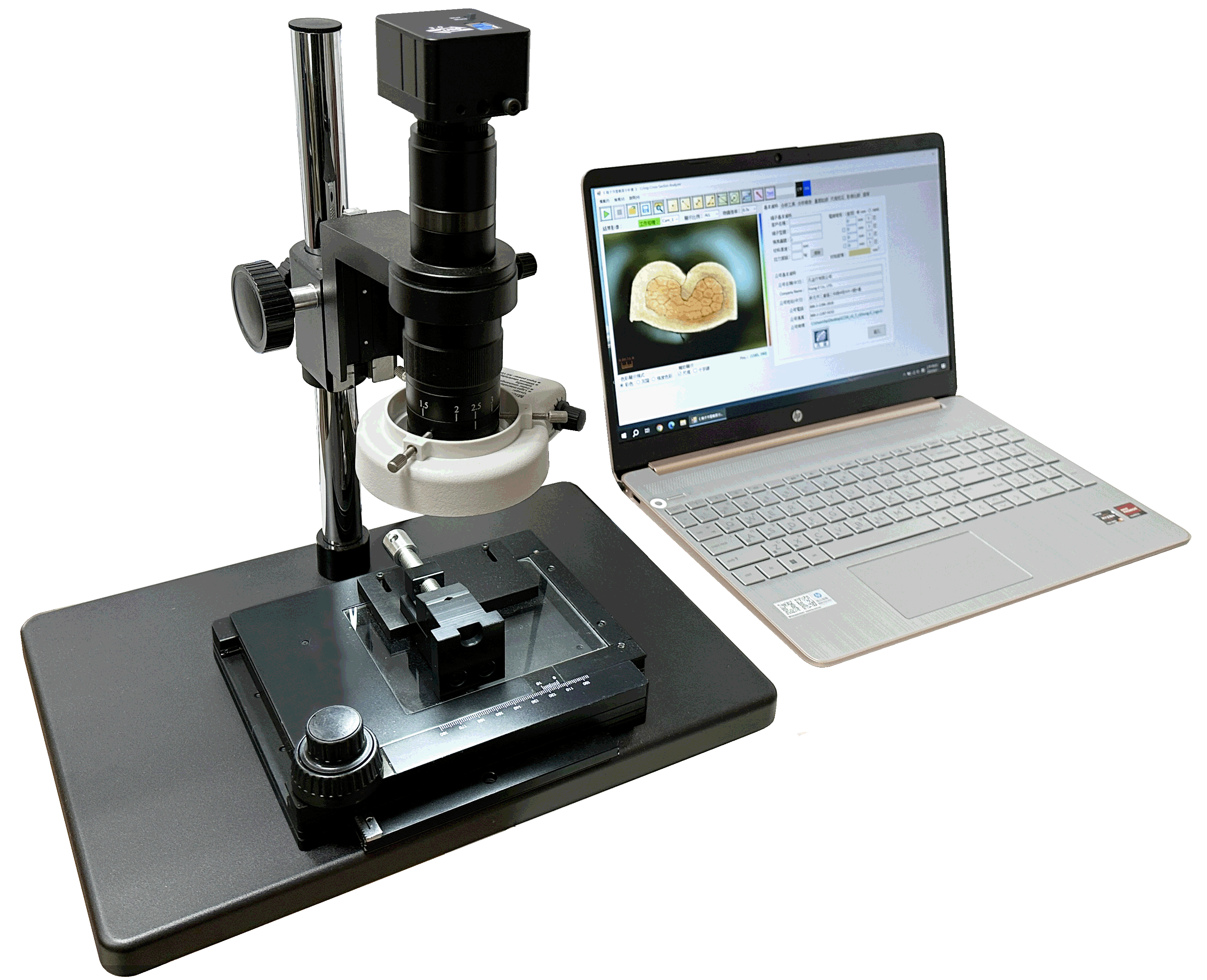

端子剖面分析儀及軟體
Crimp Cross Section Analysis Equipment and Software

特點說明

*	機台尺寸 : 460 x 410 x 340 mm
*	端子夾具適合多種尺寸端子
*	切割/研磨輪轉速可調 0 ~ 4000 rpm
*	具手輪方便移動，依位置自動開關馬達
*	高亮度LED光源輔助照明
*	電源AC 110V / 220V ，最大功率 375 W
*	二百萬畫素USB 介面數位攝影機
*	底板380 x 260 x 25mm，總高度 340mm，高度可調 ~250mm，移動工作臺行程60 mm
*	光學倍率(目鏡0.5x 物鏡0.7x ~ 4.5x )
*	視野範圍 : 最大19.6 x 14.8mm / 最小2.5 x 1.9mm
*	LED光源(含霧化板)，自帶條光器. 輸入AC 90 ~ 240V，最大輸出功率3.5W
*	可調式XY移動平臺 (左右75 / 前後 50mm )

FEATURES

*	Machine : 460 x 410 x 340 mm
*	Terminal fixture suitable for various sizes of terminals.
*	Saw/Grinding wheel speed adjustable 0 ~ 4000 rpm.
*	With hand wheel easy to move， according location auto switch motor on/off.
*	High brightness LED light source auxiliary lighting.
*	Power AC 110V / 220V ， Max. power 375W.
*	2 Mega pixel USB camera ( 1600 x 1200 pixel )
*	Platform 380 x 260 x 25mm， Total Height 340mm， adjustable height~250mm， up/down travel 60mm
*	Optical magnification(Eyepiece0.5xObjective lens 0.7x~4.5x )
*	Field of view : Max.19.6x14.8mm/Min.2.5x1.9mm
*	LED lighting ( include diffuser ) with regulator， Input AC 90 ~ 240V，Output Max. 3.5W
*	Adjustable XY Table (Horizontal 75/Vertical 50mm )

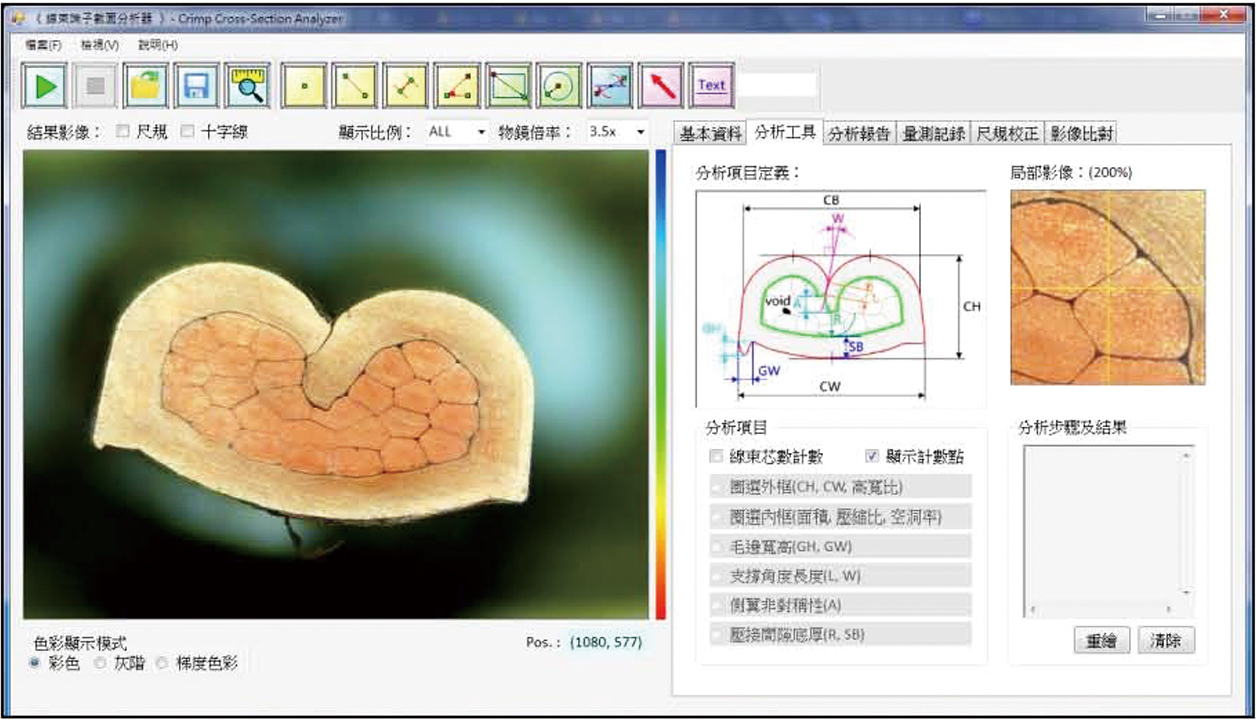

分析軟體操作者介面

(Analysis Software User Interface)

*基本功能 (Basic Function)
◎ 可輸入客戶名稱、端子型號、模具編號、材料厚度、拉力測試
System can input bssic information include customer name, terminal type, mold number material thickness, pull test.
◎ 最多可接受四種規格線材,線徑可支援mm或AWG
Up to four wire gauge, wire diameter support mm or AWG.
◎ 可輸入公司基本資料及公司代表圖示
System can enter the company’s basic information and LOGO.
*分析工具(Analysis Tools)
◎ 專業分析項目,支援線束芯數計算(SC)、外框設定自動圖像轉正並計算端子寬度(CW)和高度(CH)、內框設定自動計算面積、壓縮率、空洞率、毛邊寬度(GW)、毛邊高度(GH)、支撐角(W) 側翼非對稱性(A)、側翼末端距離(R)、底材厚度(SB)
Professional analysis items, support wire strand count (SC), outline setting then auto rotation and compute terminal width (GW) / height (GH), inner setting and auto area compression rate / void rate computing, burr width (GW) and height (GH), support angle (W) support angle (W), flank asymmetry (A), flank end distance (R), bottom thickness (SB)

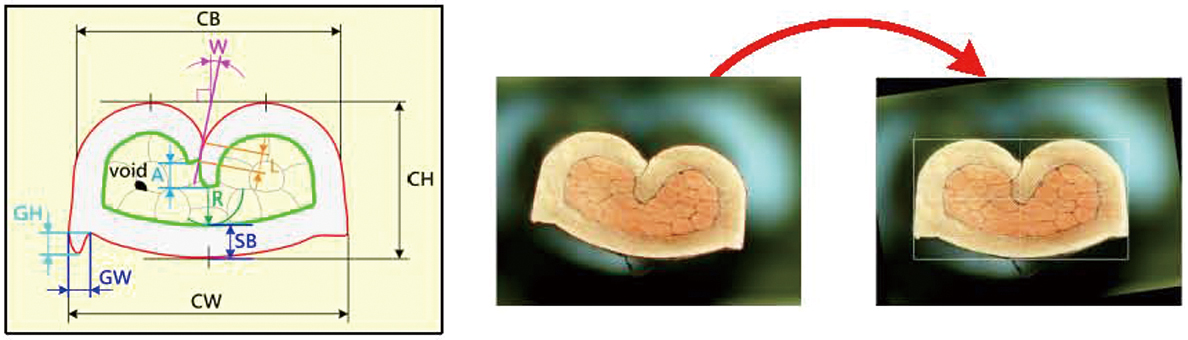

量測項目定義

(Measure item definition)

外框設定,自動轉正,自動量測寬高

(Mark outline , auto rotation , auto CW/CH measure)

*量測記錄 (Measure Record)

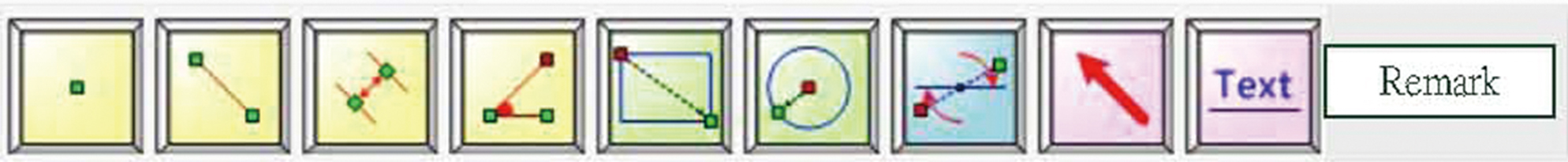

◎ 提供多種量測工具,包括點、線長、平行線距離、角度、矩形面積及長寬、圓形半徑及面積、旋轉畫面、箭頭及文字等功能
Provide a variety of measurement tools, including point, length, parallel line distance, angle, rectangular area and length / width, circular radius and area, rotating screen, arrow and text.

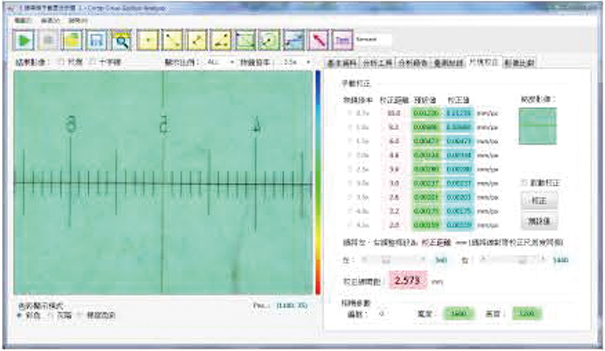

*尺規校正 (Ruler Calibration)
◎ 提供預校功能並允許自行校正光學倍率
Provide pre-calibration parameter and allow calibration optical magnification by customer.

*影像比對 (Image Compare)
◎ 提可載入兩張影像覆疊比較差異
System enable to load two images overlap and compare.

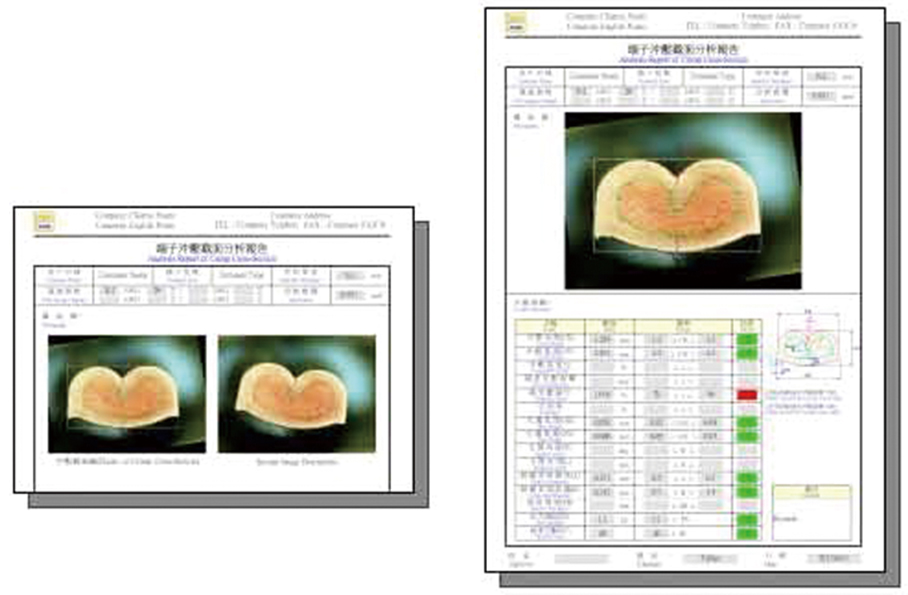

*報表輸出 (Report Export)
◎ 可單圖或雙圖輸出,第二張圖可任意指定
Report support single or two images , the second image allow assign any images.
◎ 分析項目可選擇性輸出並以顏色表示結果
Analysis items can be selectively Output , and the results indicated by colors.
